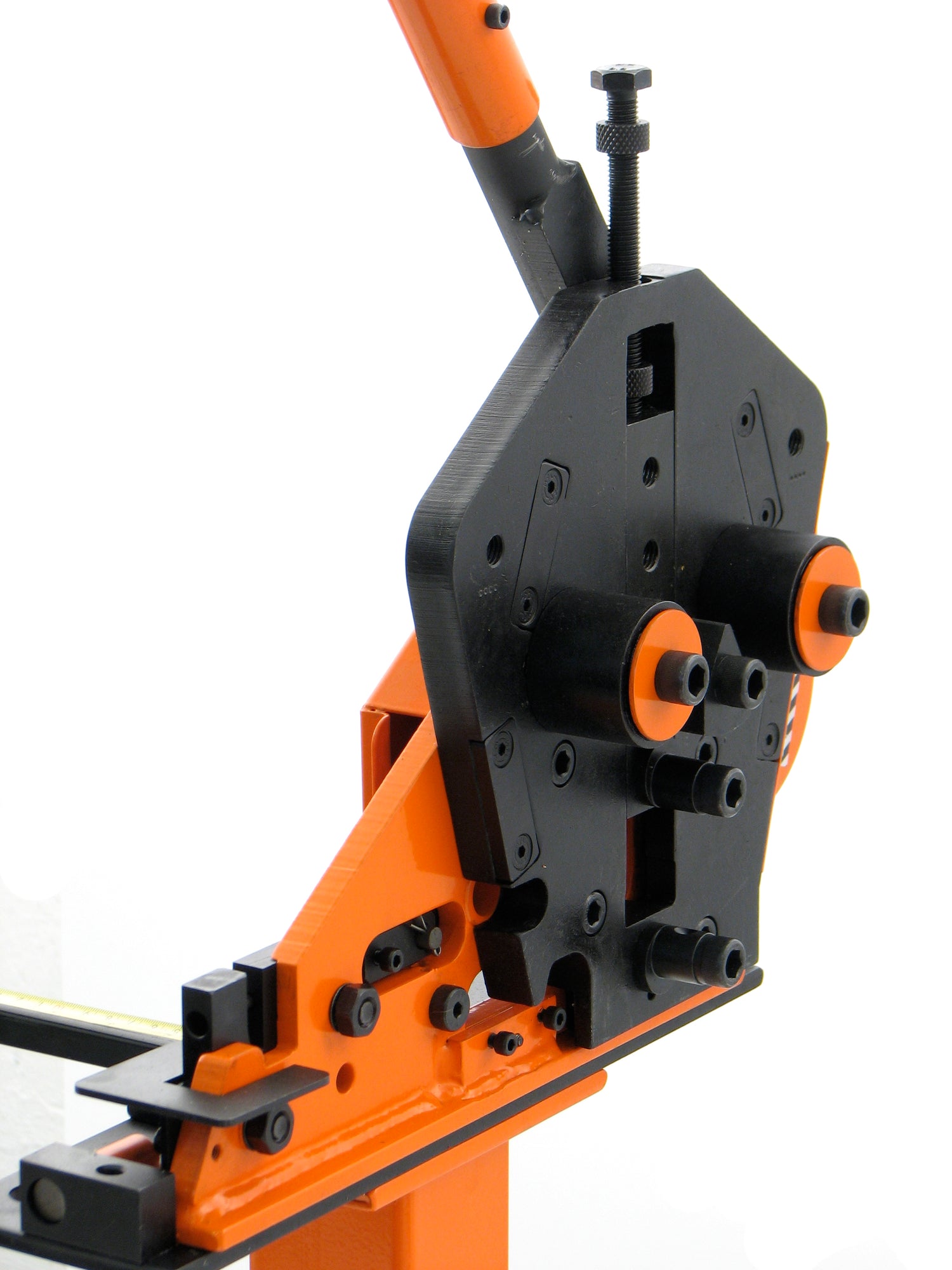

Metalcraft XL5+ Power Bender in upright position on option 1: Pedestal

Metalcraft XL5+ Power Bender shown on option 1: pedestal. Packs a mean punch with a reversible punch block capable of 3/16" and 1/4" dia. holes in 3/16" and 1/4" flat metal strip respectively. Also includes combination punch block and pins for 1/8" and 4mm

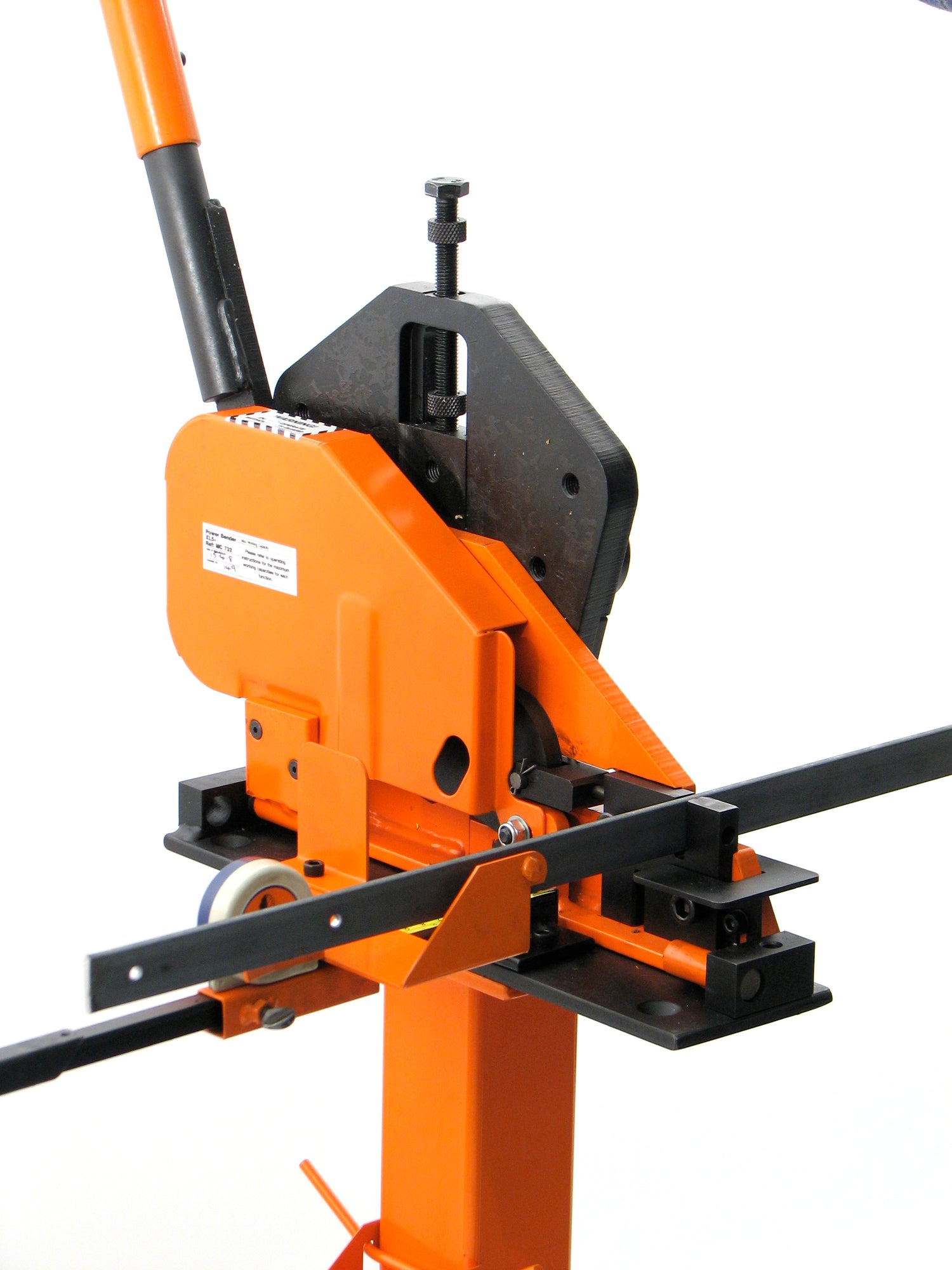

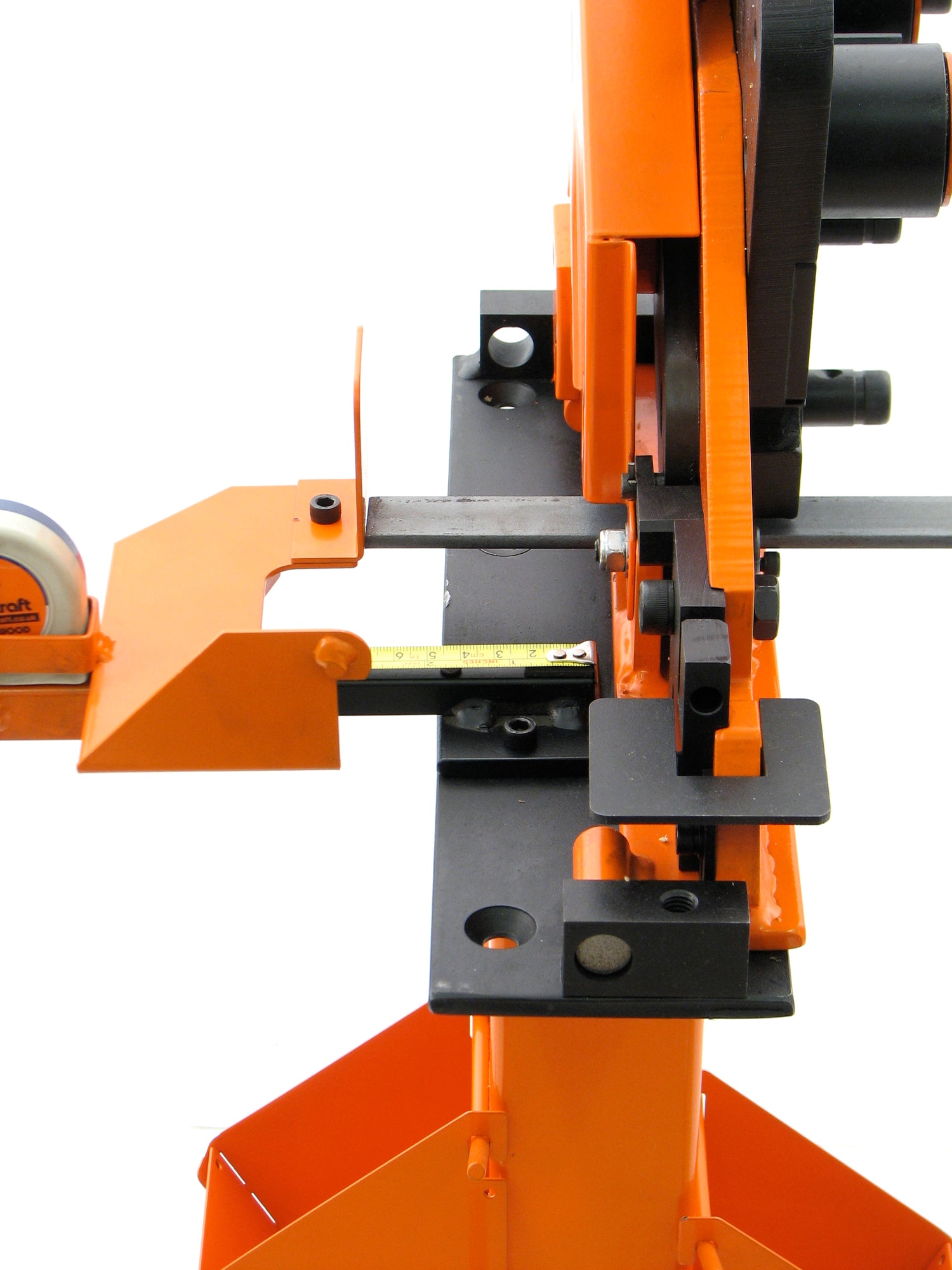

Front view of metal being cut on the Metalcraft XL5+ Power Bender using the measuring device. Same lengths of metal can be repeatedly cut

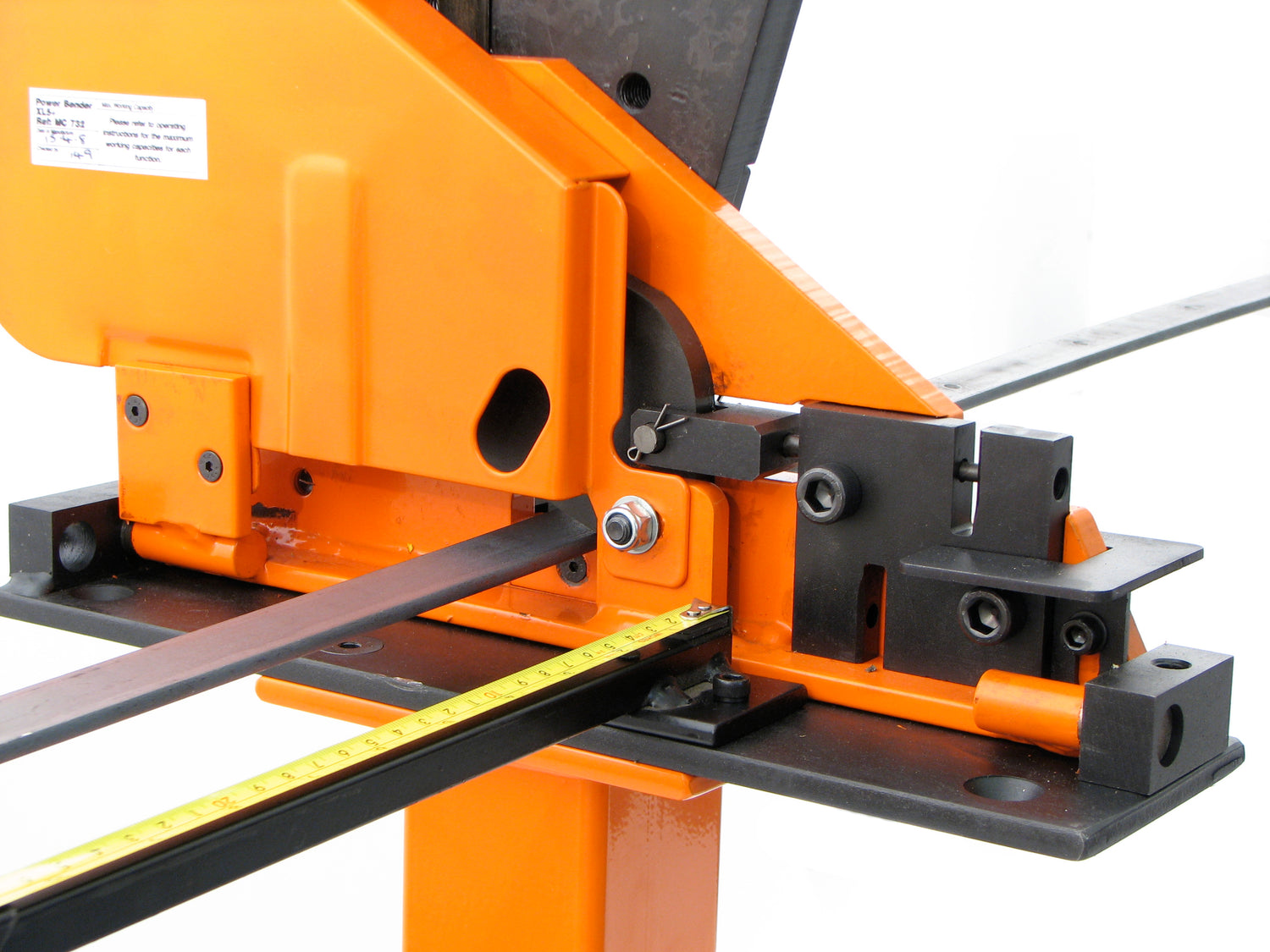

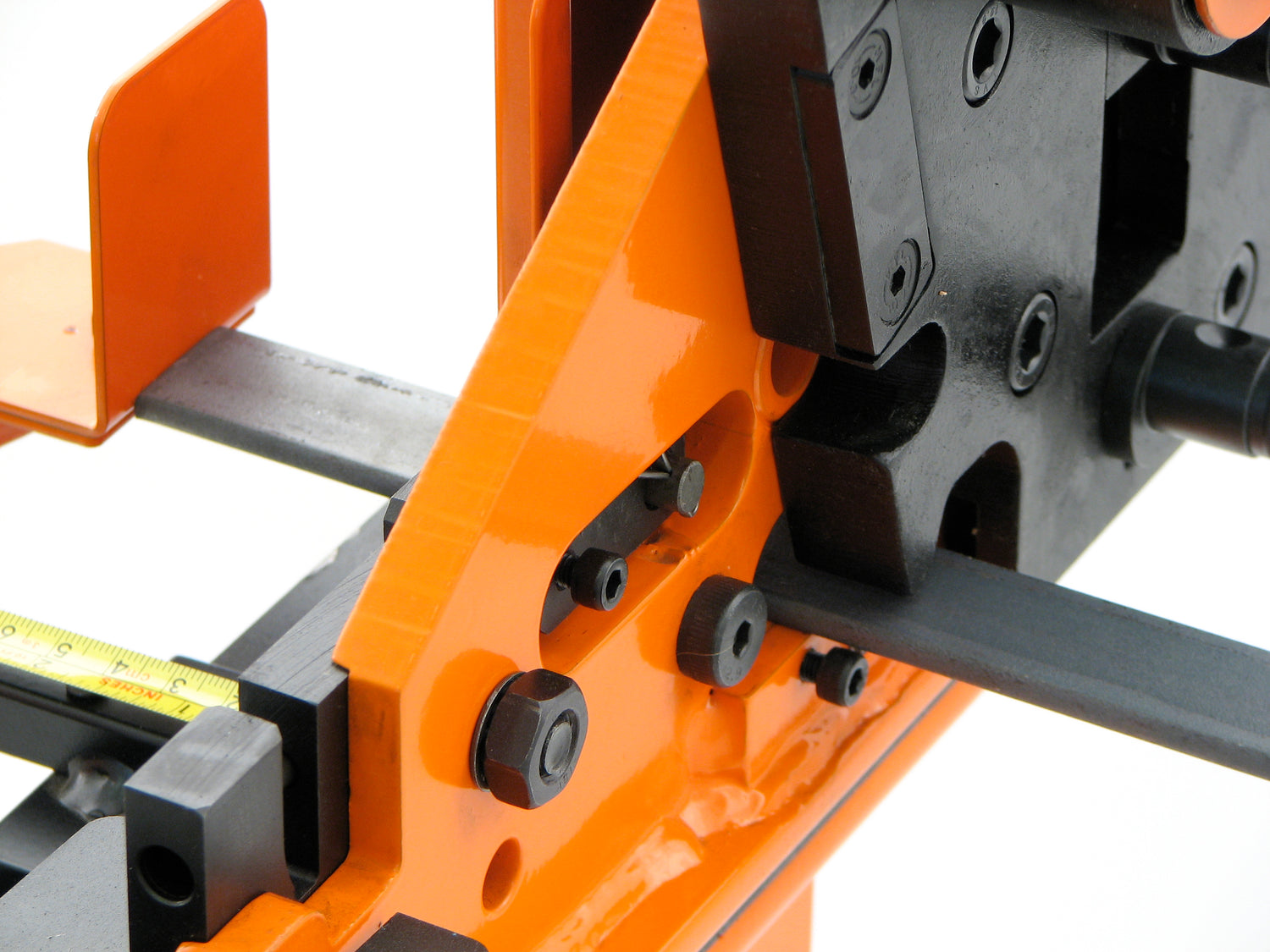

Closeup of metal in Metalcraft XL5+ Power Bender ready to be sheared. Notice measuring device being used so same lengths of metal can be cut repetitively. Cuts like a hot knife through butter for all of these sizes. Note the separate blade aperture for cutting solid round and square bar.

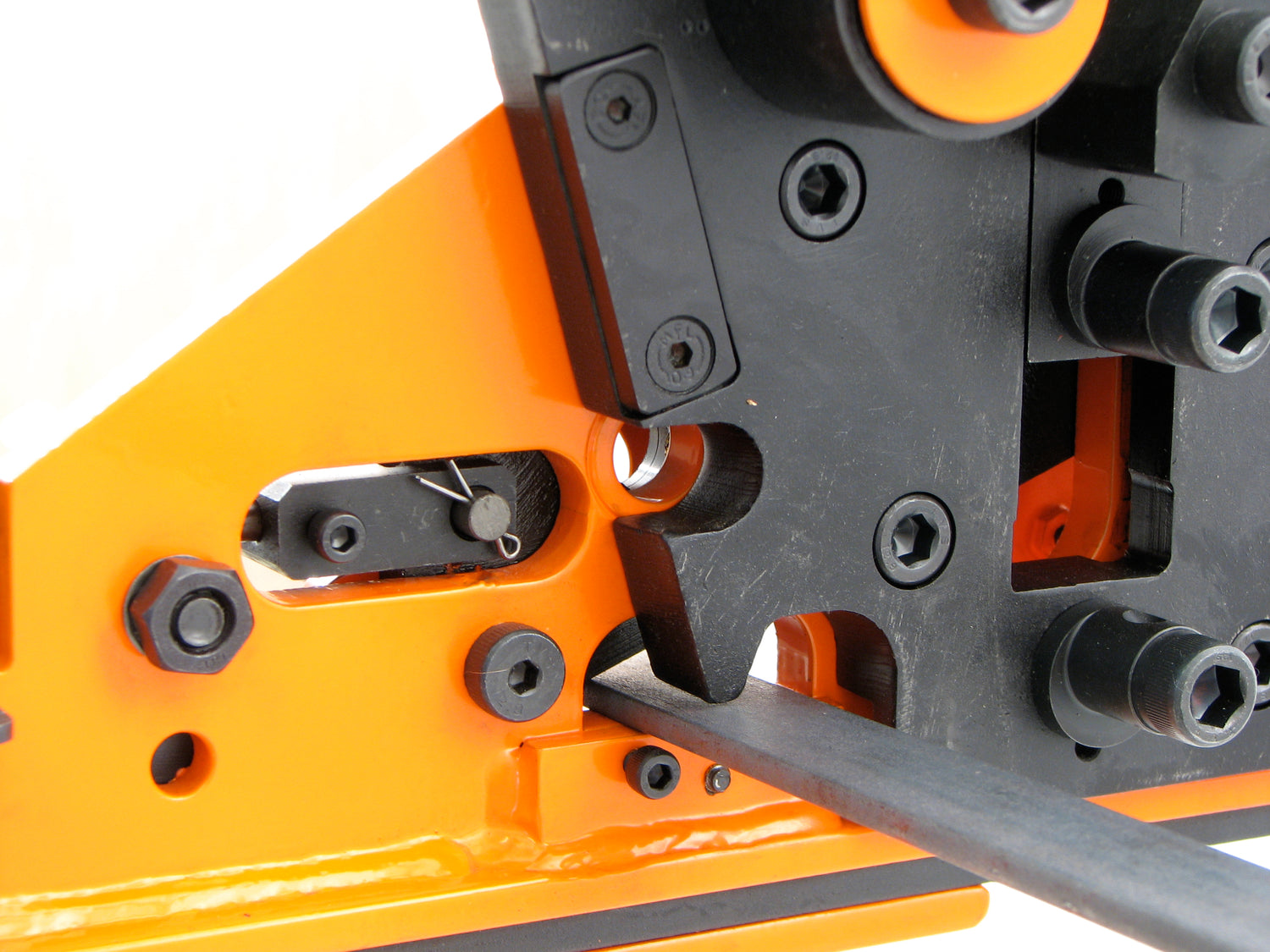

Hot rolled flat strip metal is cut using lower shear blade on the Metalcraft XL5+ Power Bender. Solid square bar and solid round rod is cut in a separate cutting area

There is a hold down for flat strip metal so the metal doesn't ride up when being cut which allows for a cleaner cut

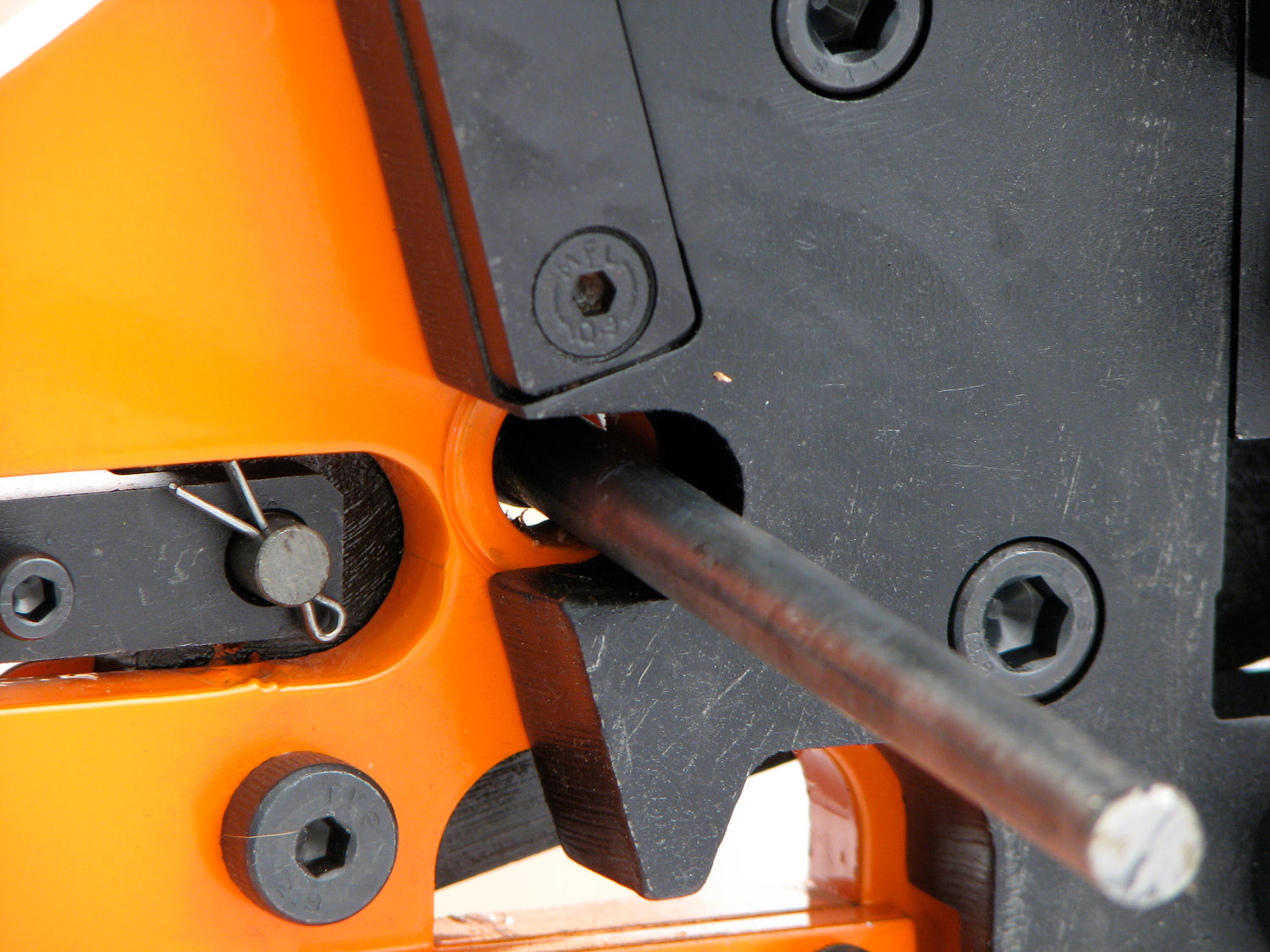

Closeup of separate area on the Metalcraft XL5+ Power Bender utilized to shear solid round rod and solid square bar

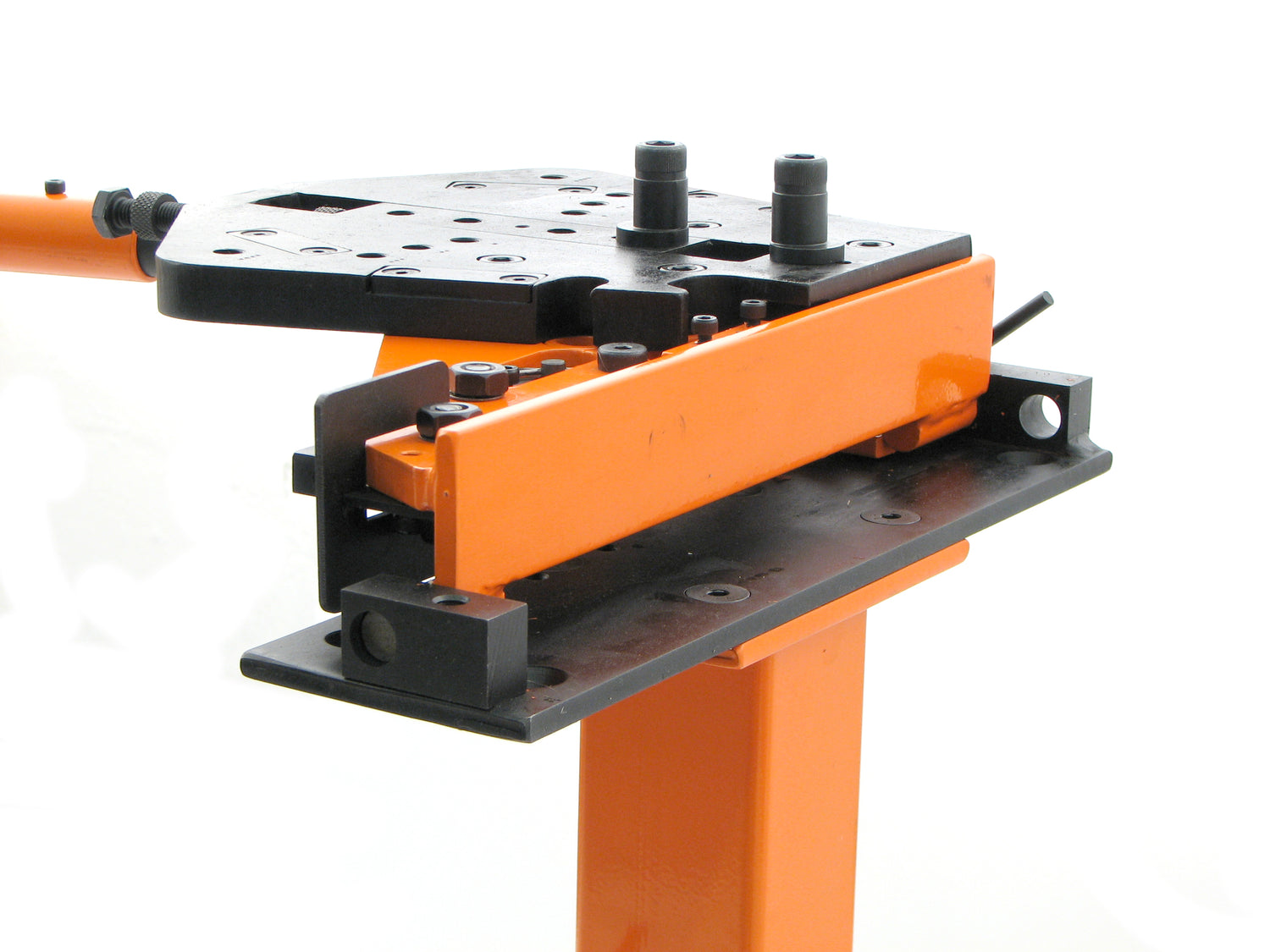

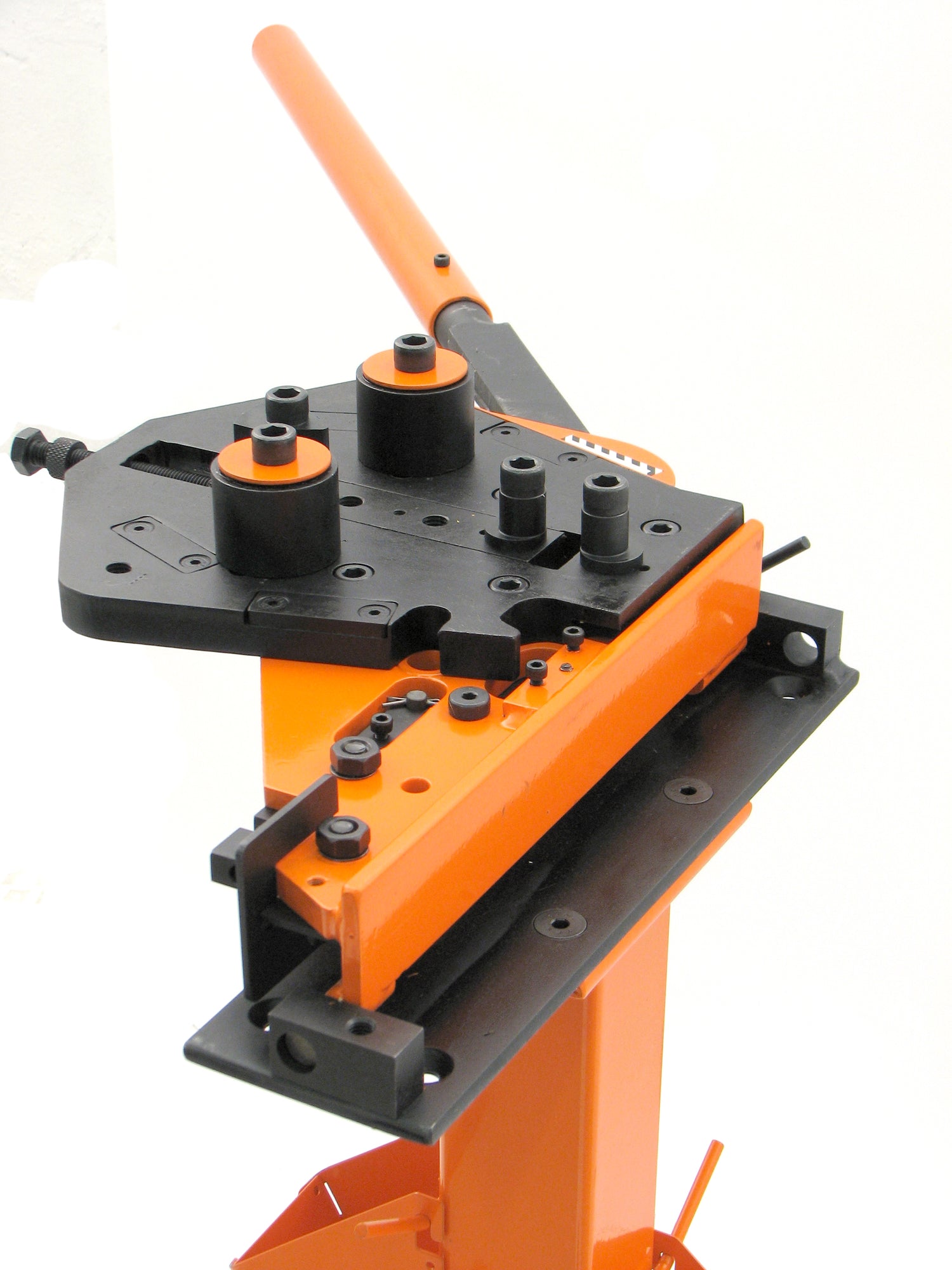

Metalcraft XL5+ Power Bender laying flat while mounted on option 1: Pedestal

With the Metalcraft XL5+ Power Bender in the horizontal position, one can roll curves/circles, angle bend, rivet AND when options 2, 3, 4, and 5 are being used on tool

The Metalcraft XL5+ Power Bender allows one to roll arches, curves and rings in flat and square bars by driving steel backwards and forwards through rollers using the winding handle. (note - be aware that the knurled drive roller can leave a "knurl" pattern impression on the face of the steel bar being rolled)

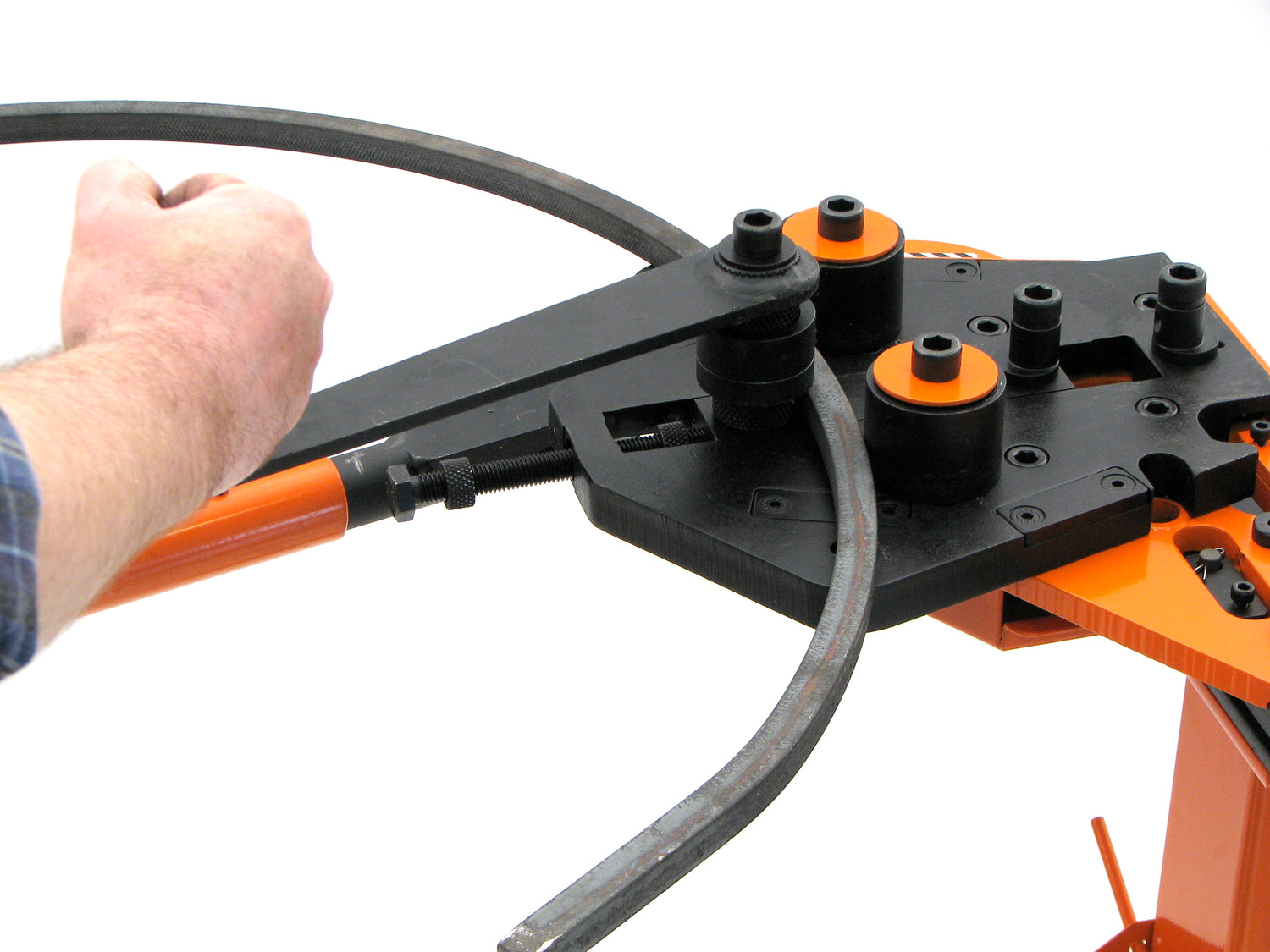

Look at the size of the solid square bar being rolled in a curve. Solid round rod can also be rolled into a curve or circle

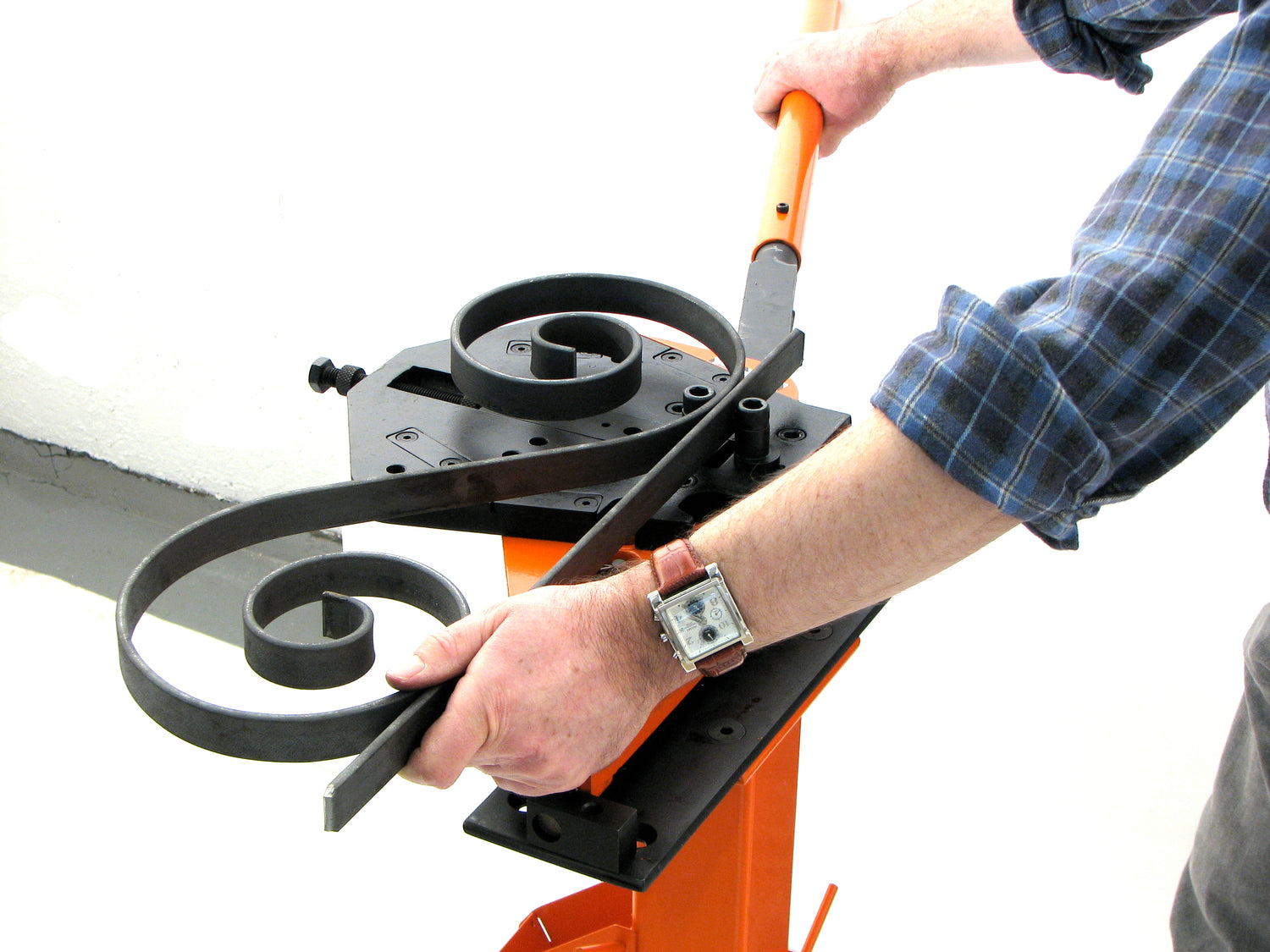

Metalcraft XL5+ Power Bender allows one to produce strong authentic looking ornamental joints using cold rivets. A useful alternative to welding when availability of welding equipment or power is an issue.

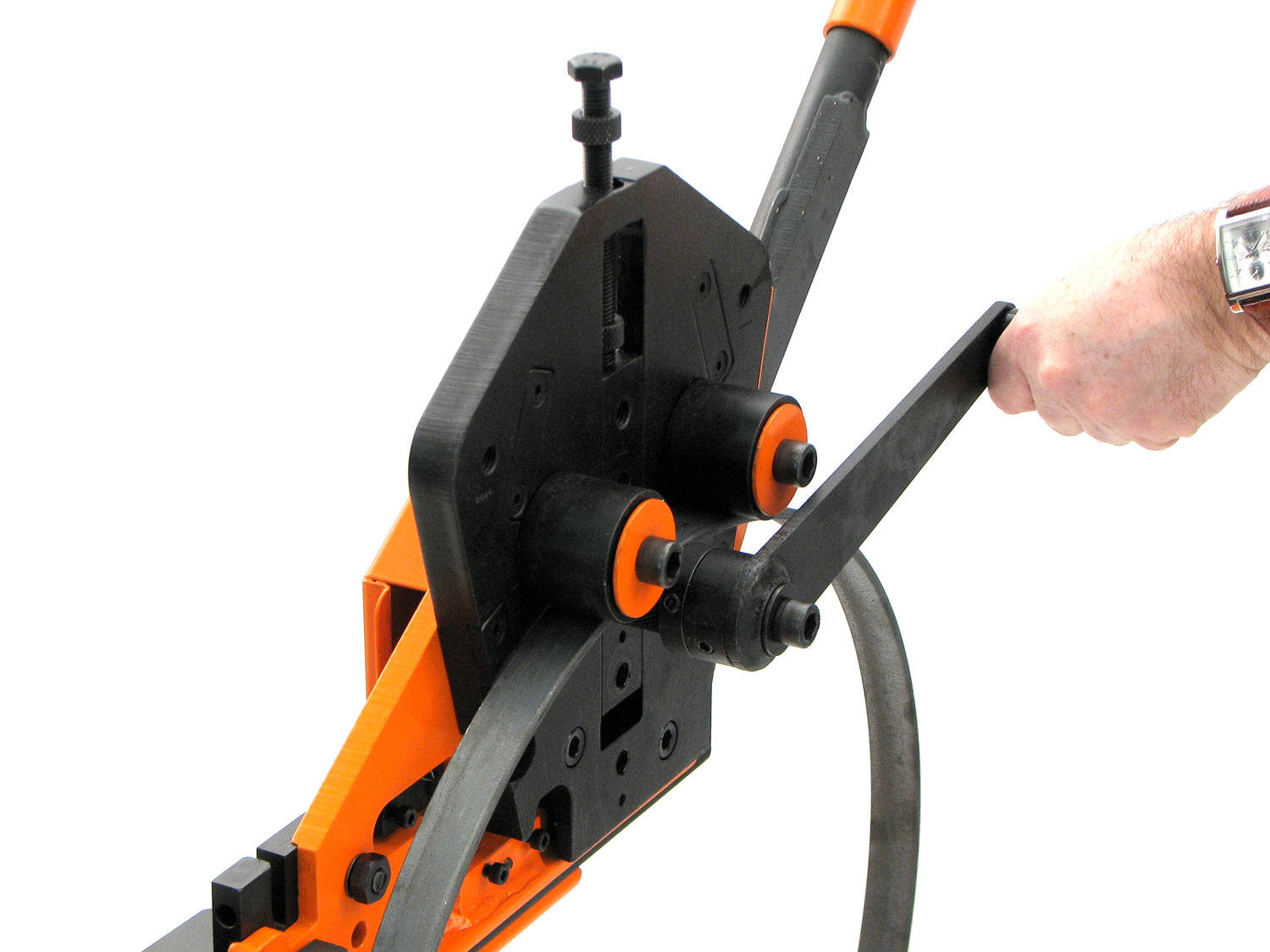

Rolling on the Metalcraft XL5+ Power Bender can be done while tool is in the vertical or horizontal position

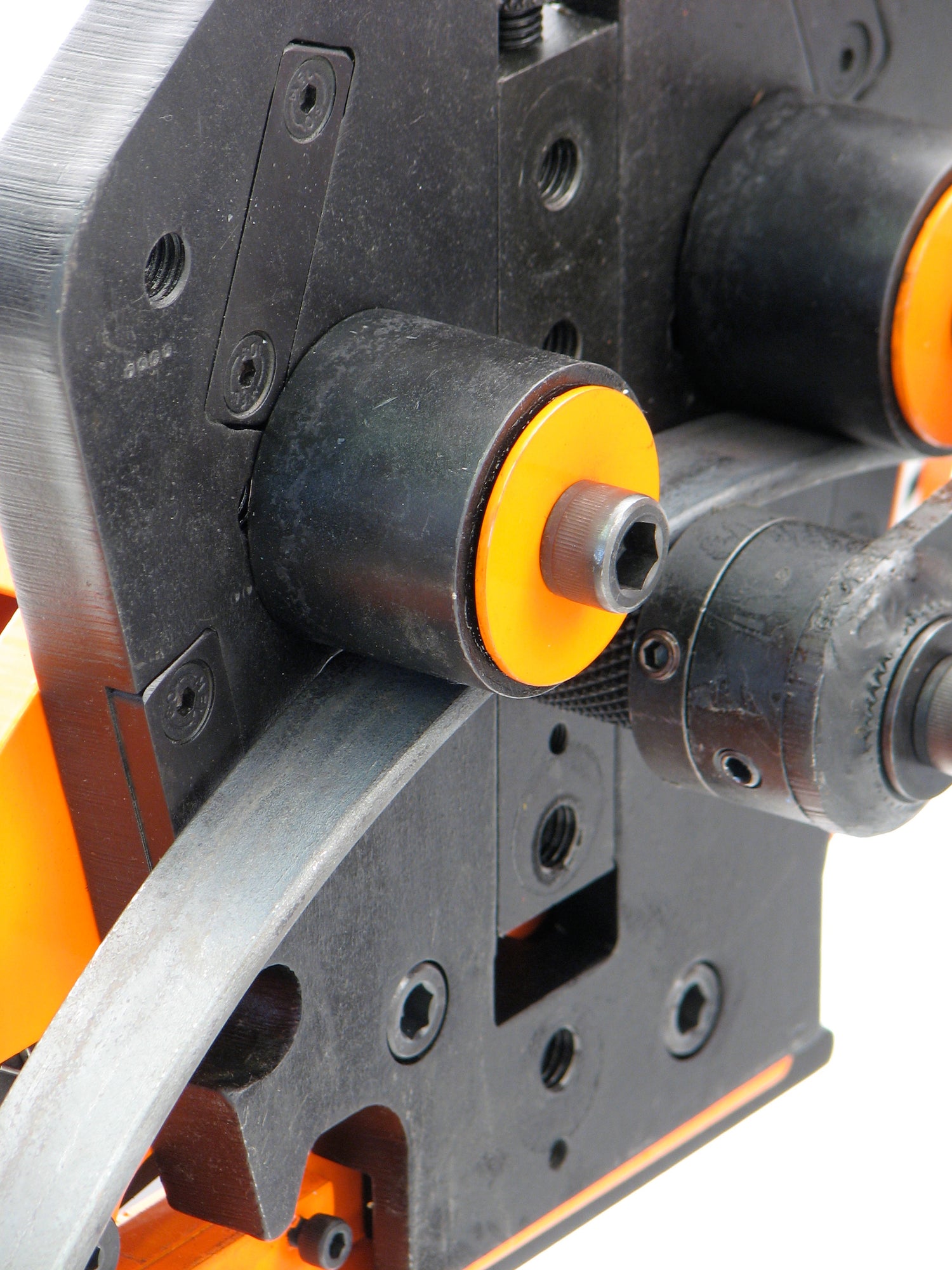

Closeup of flat metal strip being rolled on the Metalcraft XL5+ Power Bender

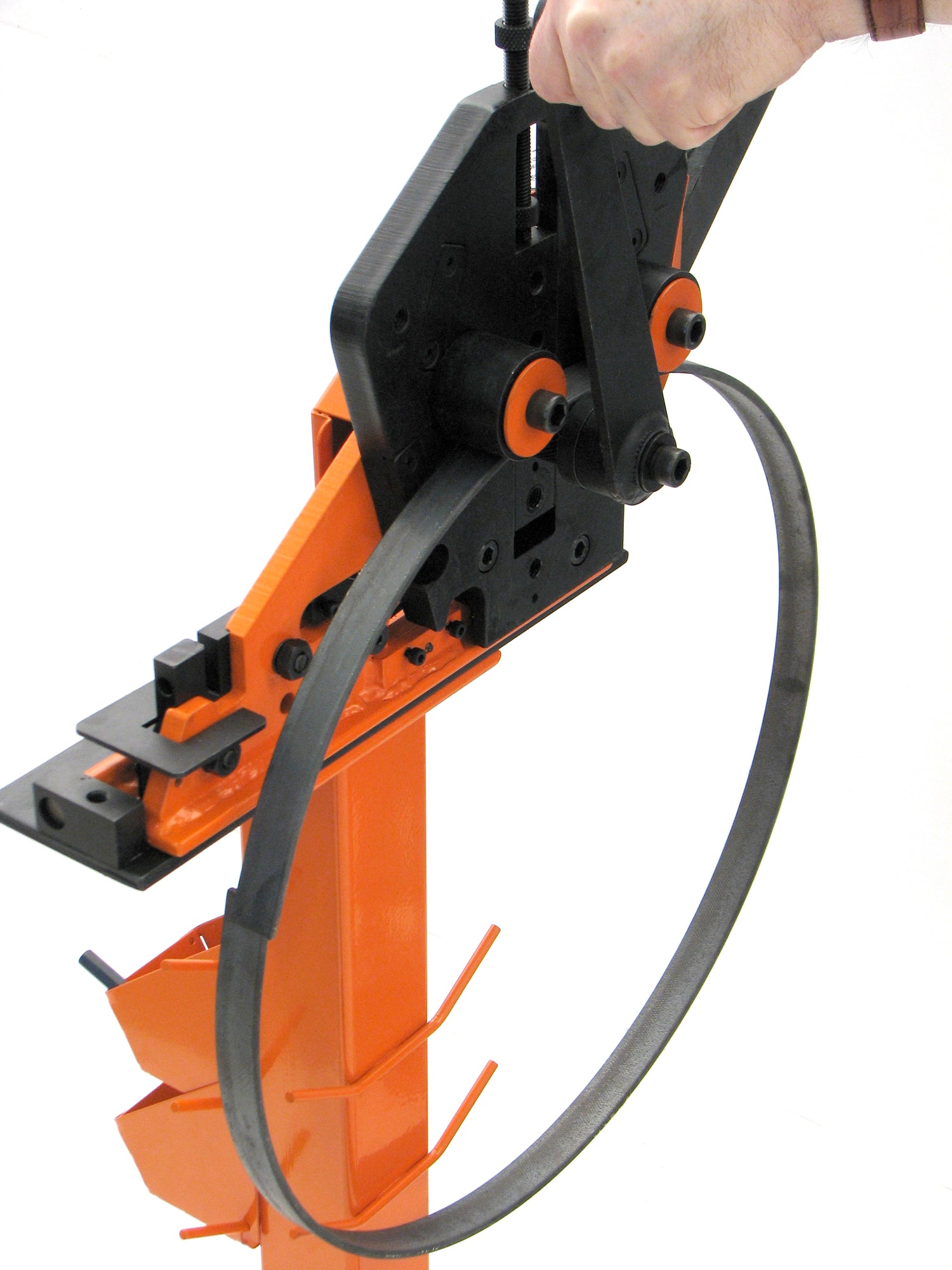

Larger photo of flat metal strip being rolled into a circle on the Metalcraft XL5+ Power Bender Tool

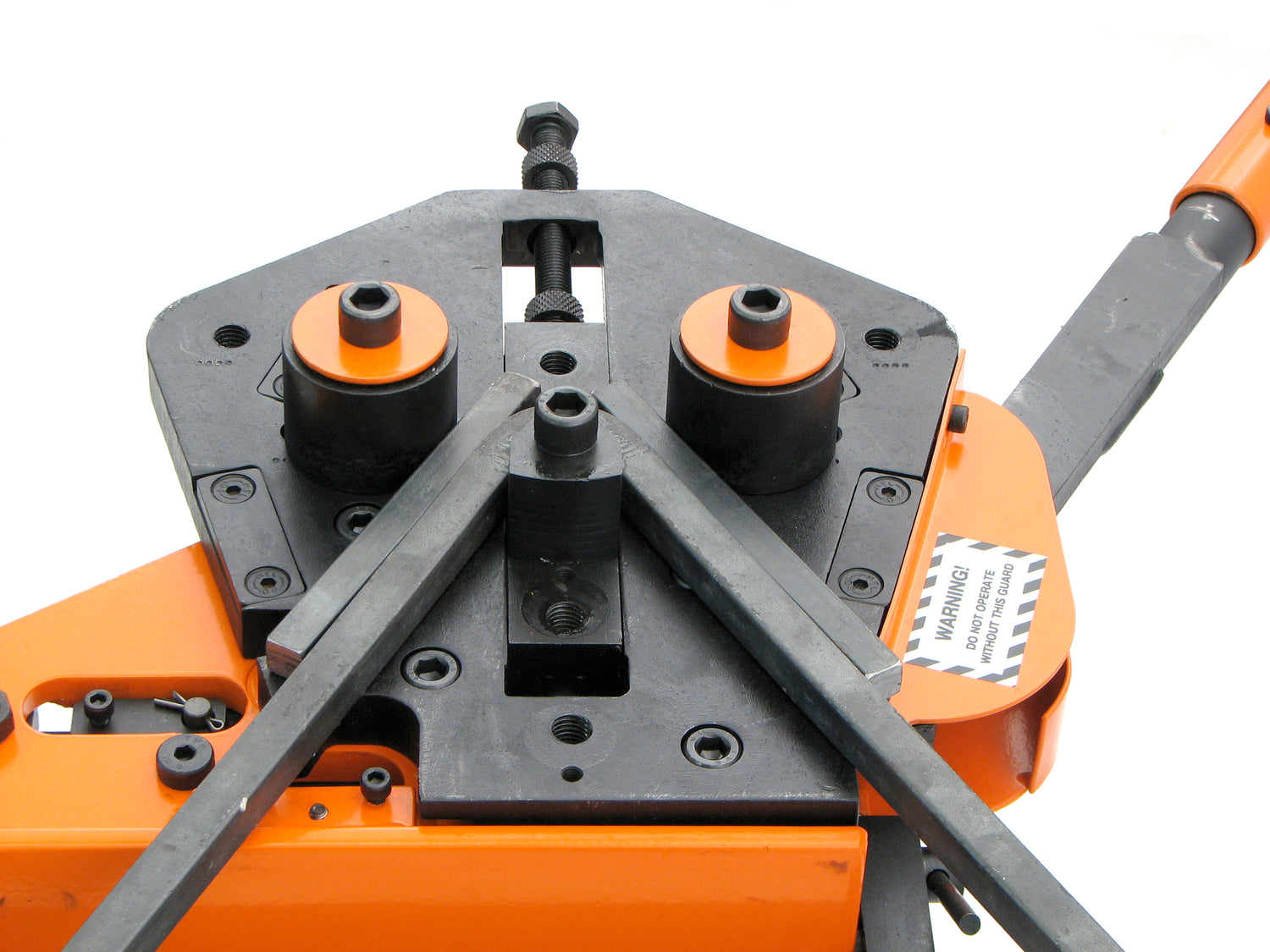

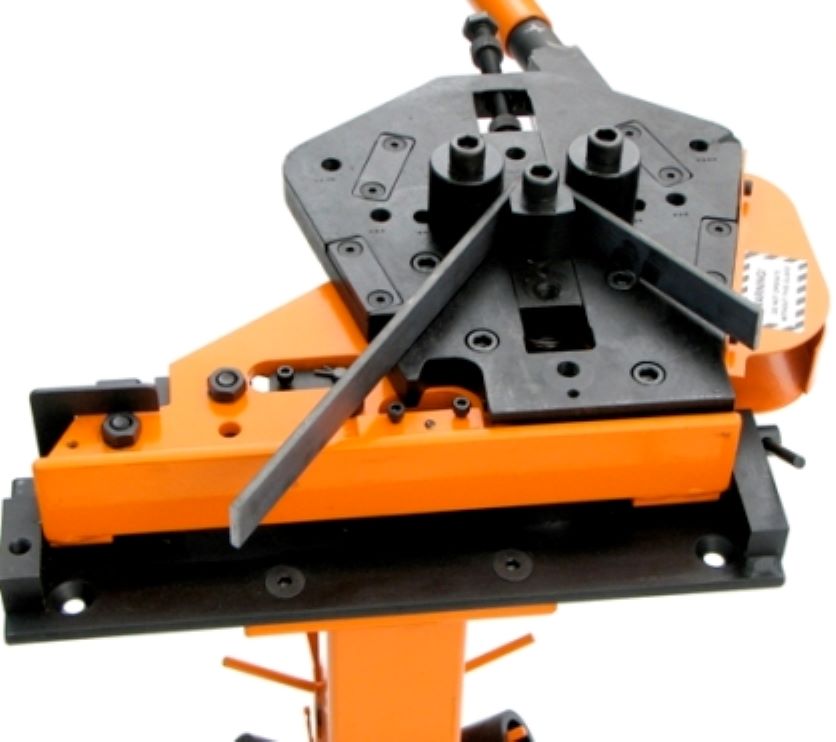

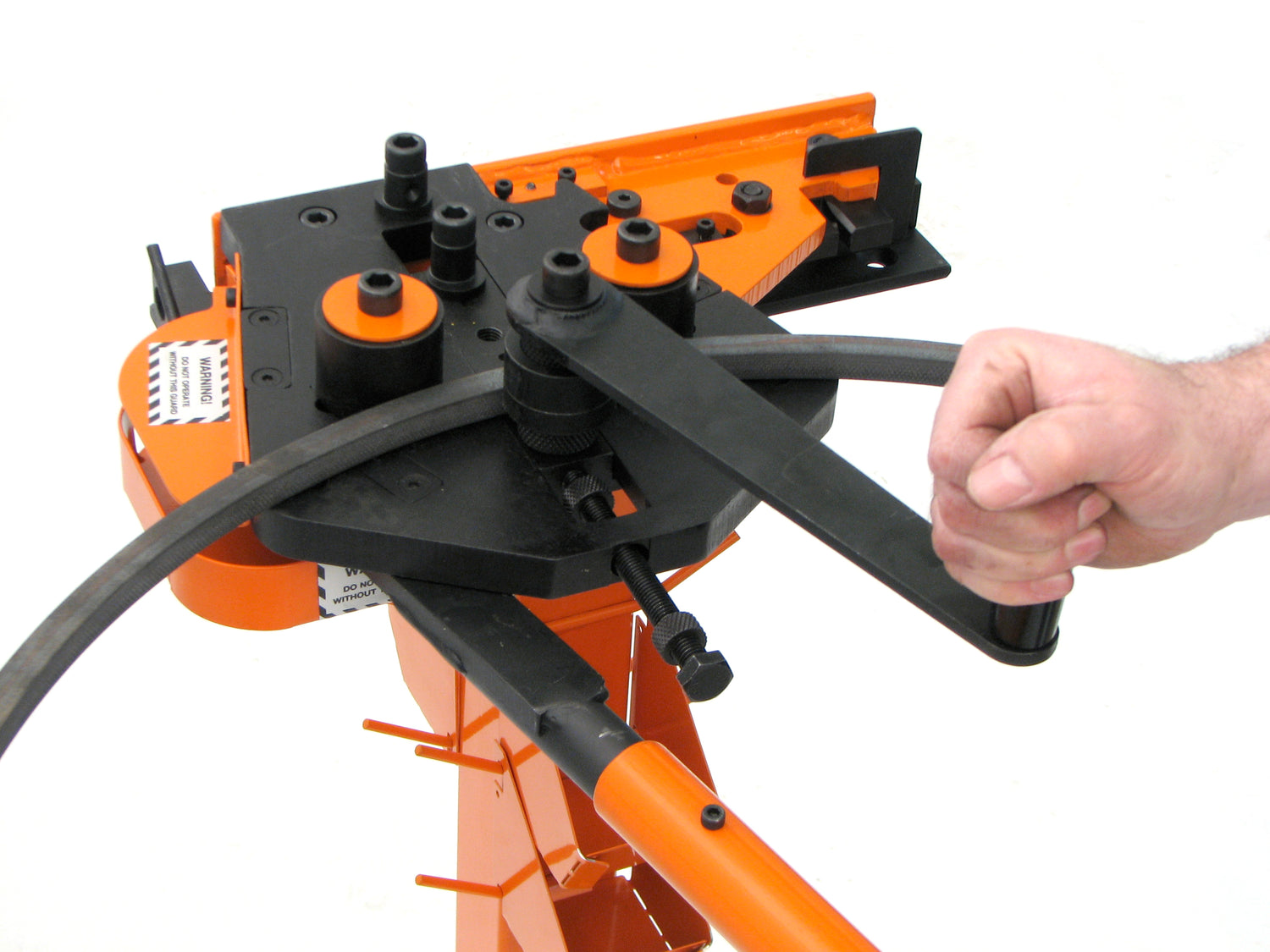

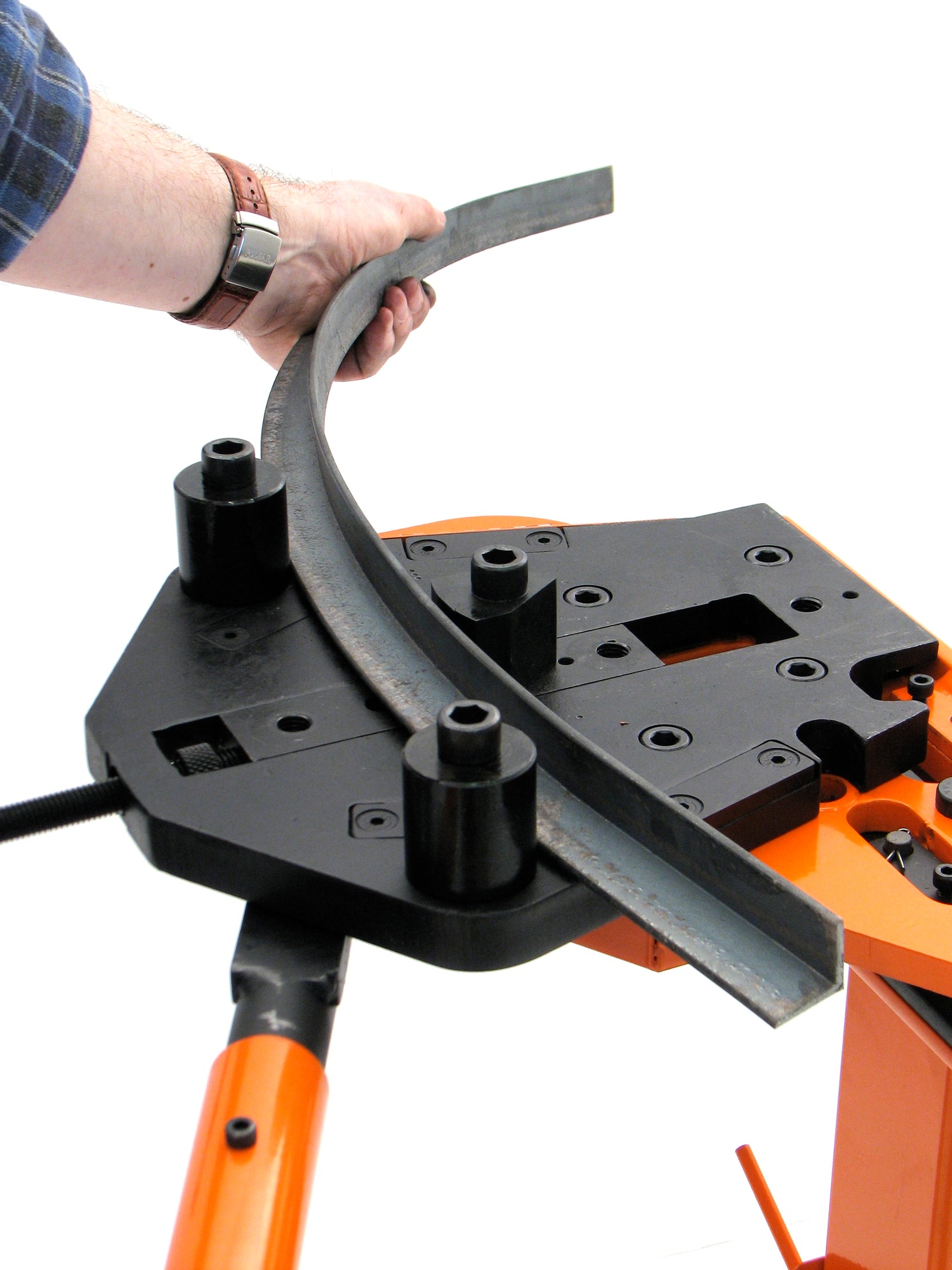

Tighter angle bends can be produced on the Metalcraft XL5+ Power Bender by using "cheater" bars

Real power bending completed in a single pull of a lever. Bends up to 60° angles in material sizes up to 1/2" thick. Bends up to 90° angles in material beyond 1/2" and up to 5/8" thick.

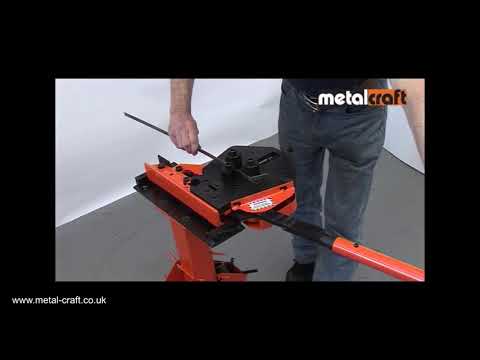

Video on the Metalcraft XL5+ Power Bender in action

metalcraftusa

Metalcraft XL5+ Power Bender Tool

Name: Metalcraft XL5+ Power Bender Tool
Brand: metalcraftusa
SKU: SMC732
Price: 1700.0 USD
Availability: InStock

SKU: SMC732

$1,700.00

The Metalcraft XL5+ Power Bender packs 5+ functions that makes it more than just an impressive metal bar bender. This baseline version of the tool is a metal bar cutter, a metal ring roller, a metal hole punch and it will also rivet heavy duty metal work together effortlessly. As well as being able to bend bar in a single pass, it’s unique design allows a wide range of steel profiles to be bent progressively in order to curve steel into complex shapes.

5+ FUNCTIONS FOR AN AMAZINGLY LOW PRICE! THE ULTIMATE DREAM MACHINE FOR FABRICATORS & ORNAMENTAL METALWORKERS

If that wasn’t enough, you can add option packs to increase tools capabilities and allow it to do the work of other fabrication equipment. You can get this baseline XL5+ machine and purchase selected Option Packs as and when you require them OR we do offer the XL5+ Power Bender complete with ALL 5 Options for those wanting to purchase the ultimate ironworker.
