Metalcraft Scroll Bender MK2/3 Former complete with Tube Bending Components
Transform Your Metalworking with the Metalcraft Scroll Bender MK2/3 Former
Unmatched Versatility with Tube Bending Capability

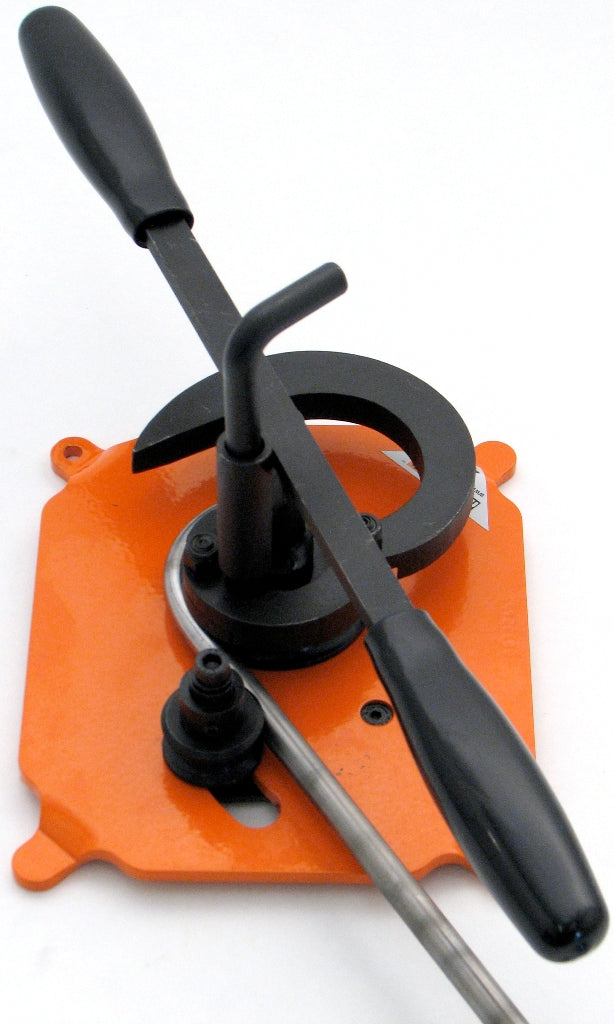

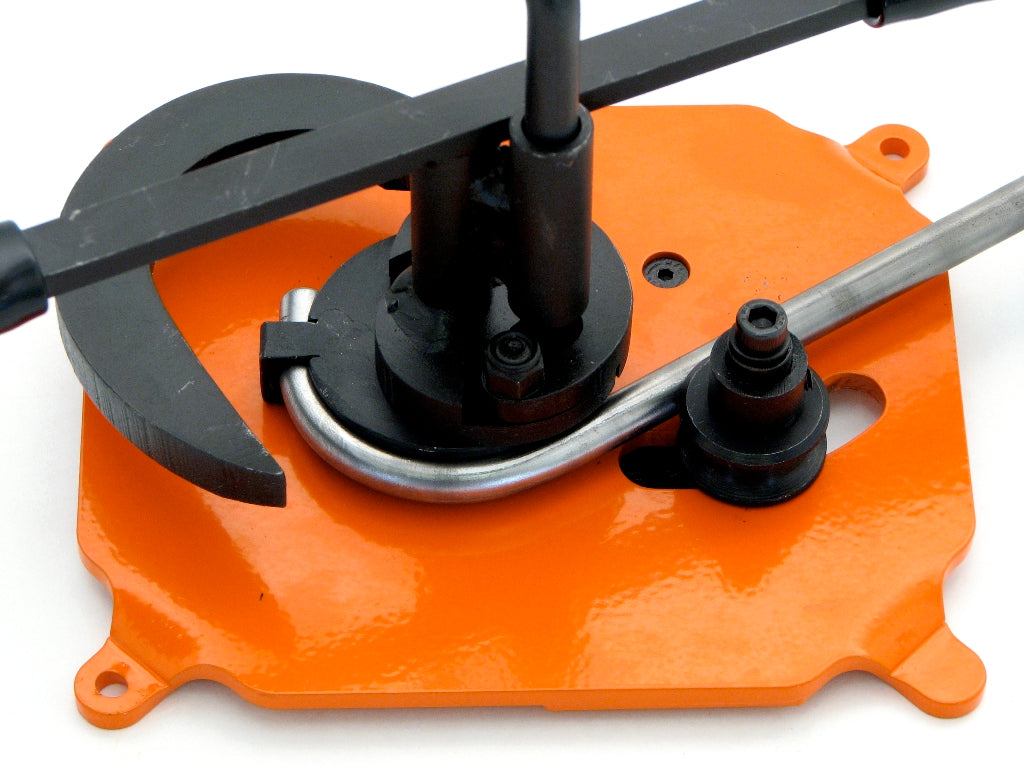

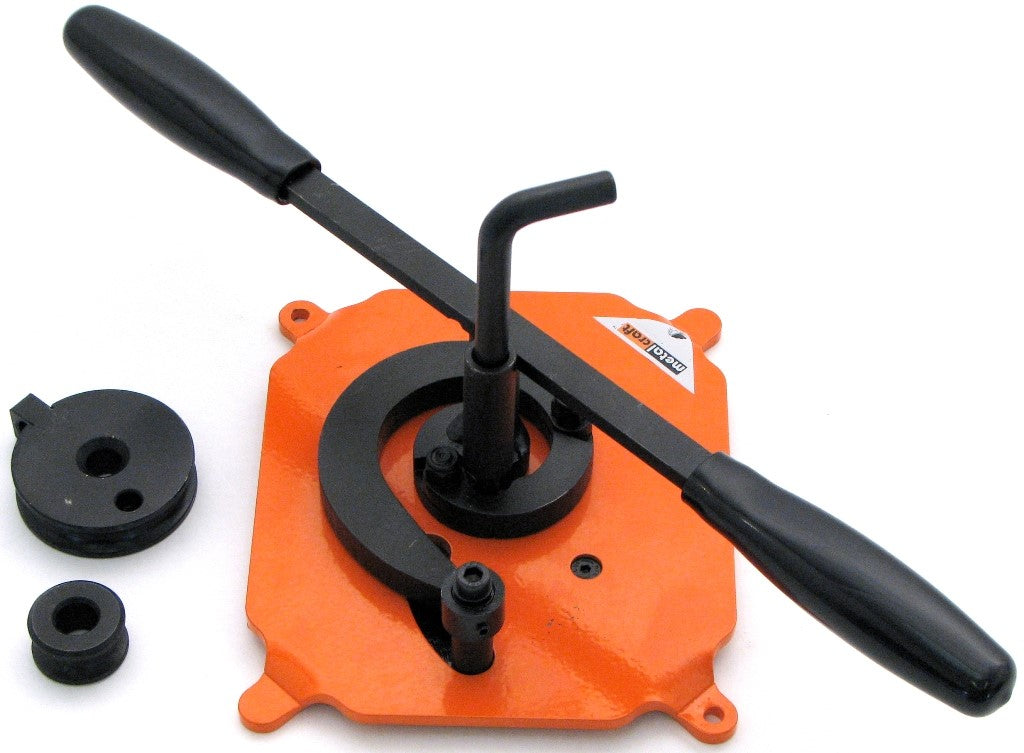

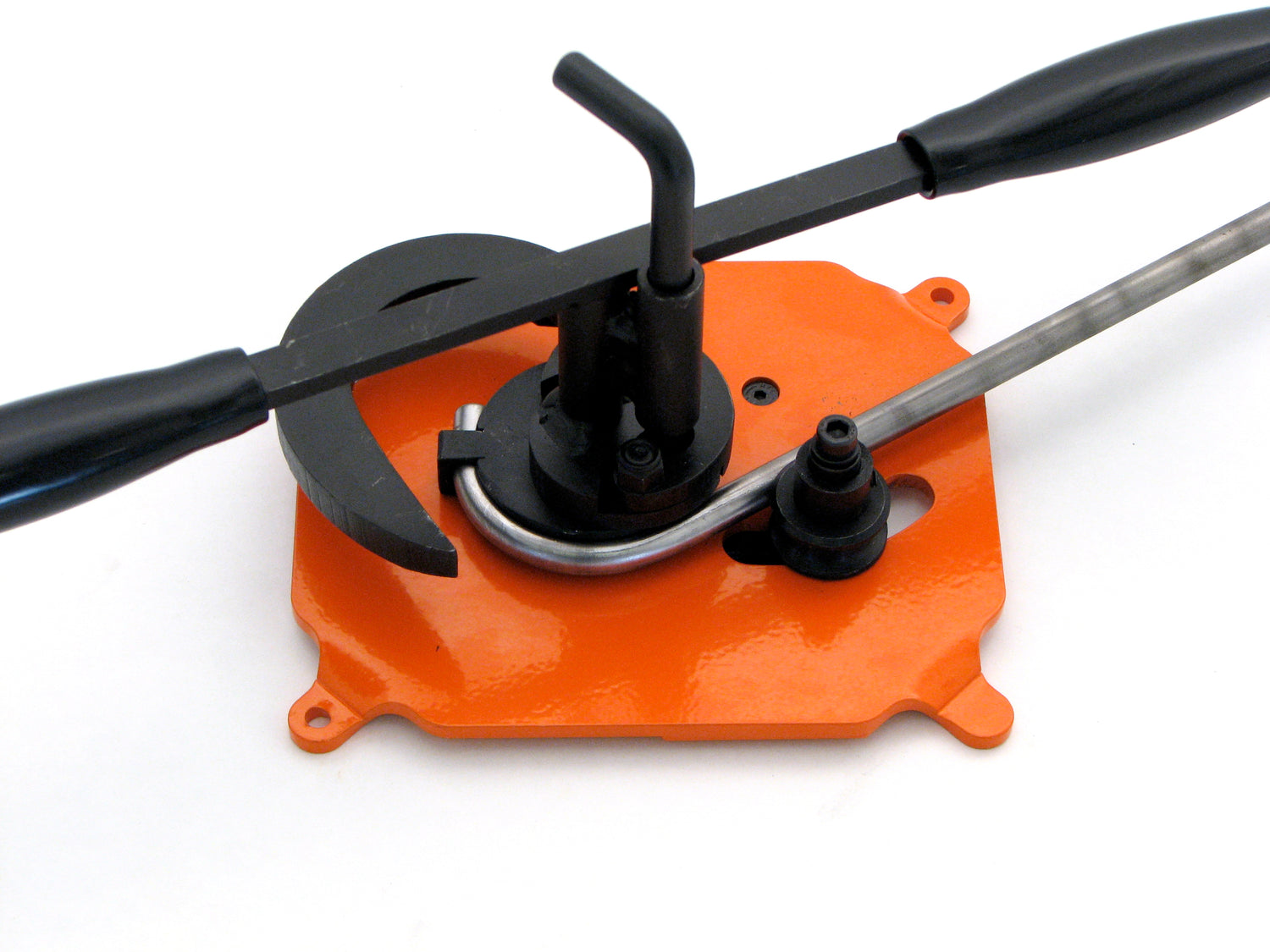

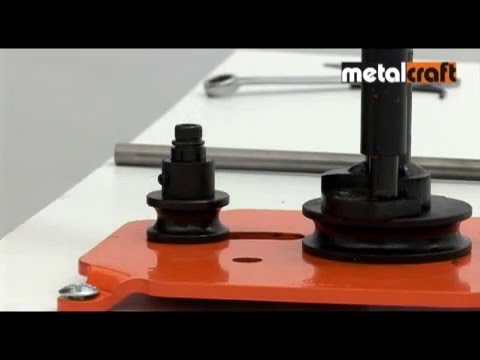

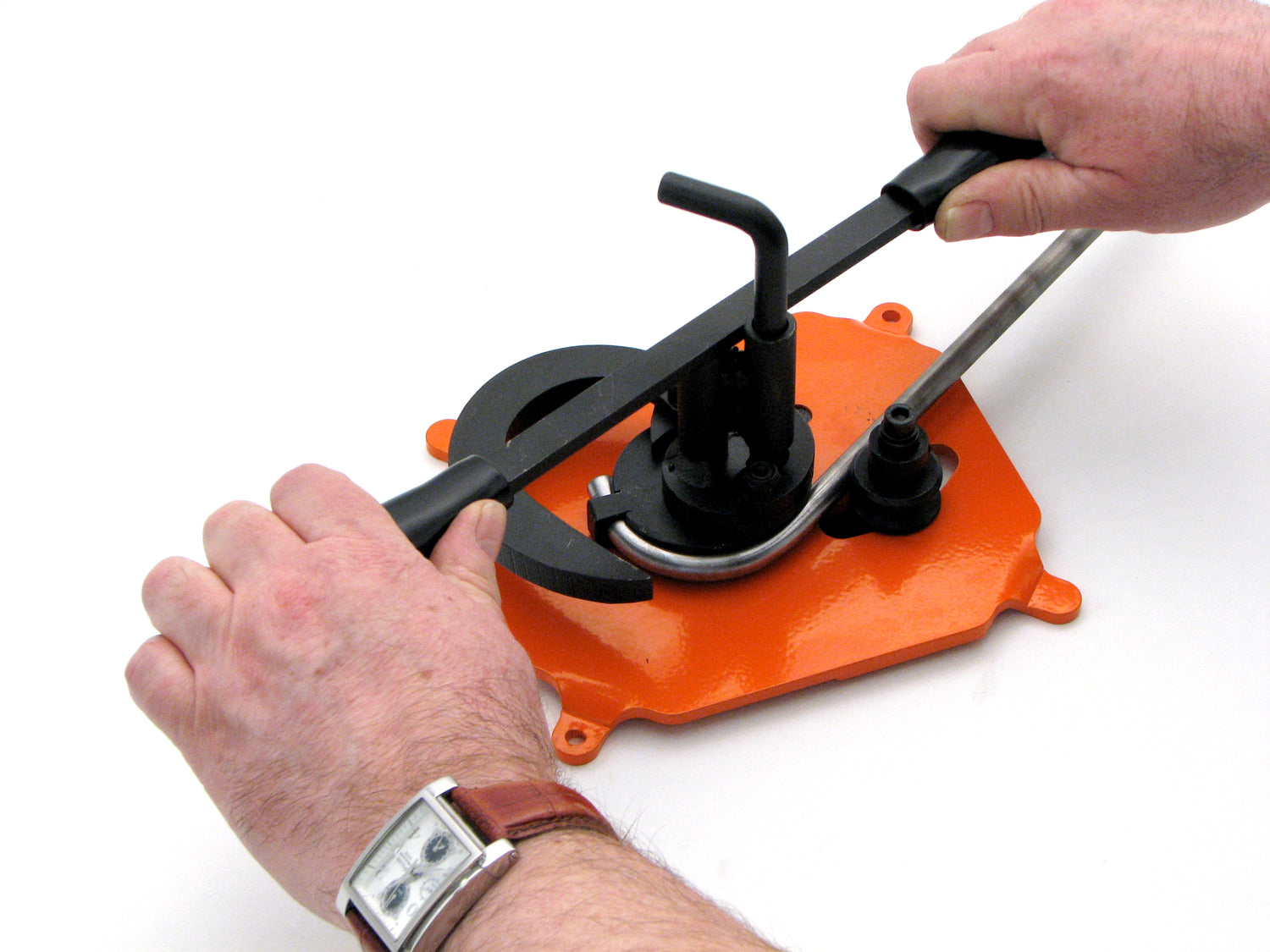

Introducing the latest version of the Metalcraft Scroll Bender MK2/3 Former, now enhanced with specialized tube bending components. This upgraded tool retains all the scrolling capabilities of the MC029 MK2/3 Scroll Maker Tool, while offering added functionality to bend tubes with precision. The included larger tube former, along with a special pressure guide roller, seamlessly integrates with the scroll bender, converting it into a fixed radius tube bender. This clever design enhancement makes it an indispensable tool for any metalworking enthusiast looking to expand their creative possibilities.
Precision and Ease of Use

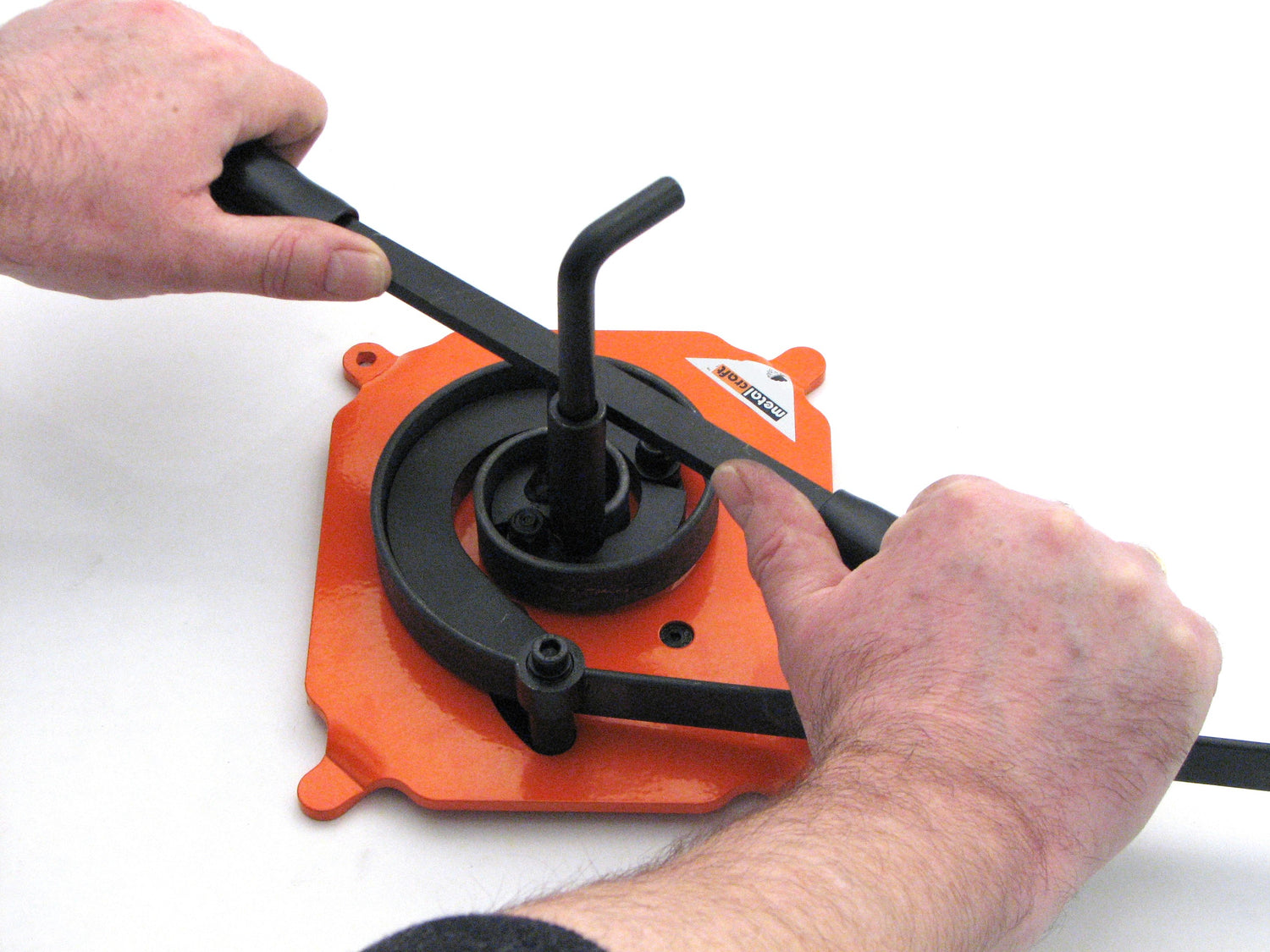

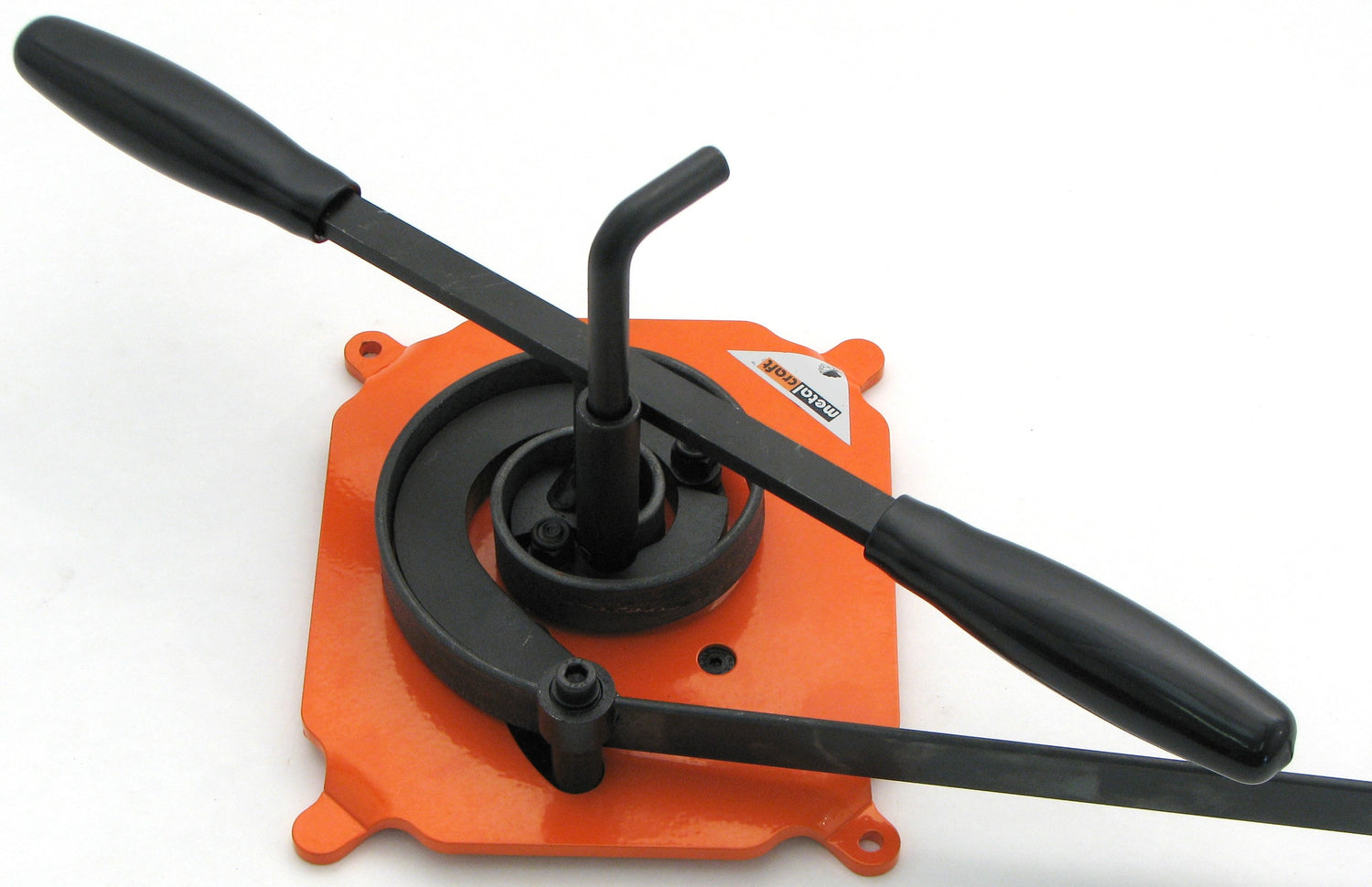

Experience the perfect blend of precision and ease with the Metalcraft Scroll Bender MK2/3 Former. The hinged segments open out to allow easy insertion of the metal strip, which is then securely gripped by a locking bar mechanism. As you position the metal to the right of the special pressure roller, the material is effortlessly drawn into the center segment. The T-bar handle is then operated to form scrolls of the desired size. This intuitive process ensures consistent and accurate results, making your metalworking projects more efficient and enjoyable.
Enhanced Efficiency and Creativity
The Metalcraft Scroll Bender MK2/3 Former is designed to enhance both efficiency and creativity in your metalworking projects. The innovative capstan operation pulls the metal into the tool, requiring less space around your workbench and making it easier on your hands. This feature, combined with the new tube bending capability, allows you to create intricate scrolls and precise bends faster and with greater ease. Whether you're working on ornamental wrought iron projects or practical applications, this tool offers the versatility and reliability you need to achieve professional-quality results.
FREE Downloadable MK1/2, MK2/2H, and MK2/3 scroll outline sheet. CLICK HERE for .pdf file
________________________________
Metalcraft Scroll Bender MK2/3 Former Complete with Tube Bending Components SPECIFICATIONS:
Maximum Working Capacity:
3/4" x 1/8" (flat metal steel strip)
1/8" (solid round rod)
Max. Scroll Size:
4 3/8" (flat metal steel strip) - the maximum scroll size quoted is approximate due to the varying temper (spring) of steel.
Tool Dimensions:
6"w x 9"d x 4 3/4"h x 8 1/4" (handle radius).
Boxed Weight: 8 lbs.
Max. Tube Dimensions:
3/8" O.D.
1/32" Recommended wall thickness.
Dia. of tube former segment (inner diameter of formed tube): 1 15/16"
This version of the MK2/3 Scroller comes complete with Tube Bending Components.
All tools are supplied with operating instructions. Please note that the maximum working capacity stated is for Hot Rolled mild steel or annealed metal. Working beyond these limits or with material of greater hardness may reduce the operational life of the tool.
