Metalcraft Master Twister complete with Basket Making Components

Elevate Your Metalwork with the Metalcraft Master Twister

SPECIFICATIONS:
Maximum Working Capacity:
1" wide x 3/8" thickness (flat metal steel strip)
5/8" (solid square bar)

Length of Twist Possible:
Min. 1 3/4"
Max. 38 1/2" - (longer twists can be achieved by moving twisted section through the machine and then twisting the next section).

Basket Maker Info:

Produces slender decorative baskets to fit 1/2" and 5/8" bars. 5/8" (4 pcs x 5/16" x 5/16") - Basket length 6 1/2" 1/2" (4 pcs x 1/4" x 1/4") - Basket length 5"

 Machine Dimensions:

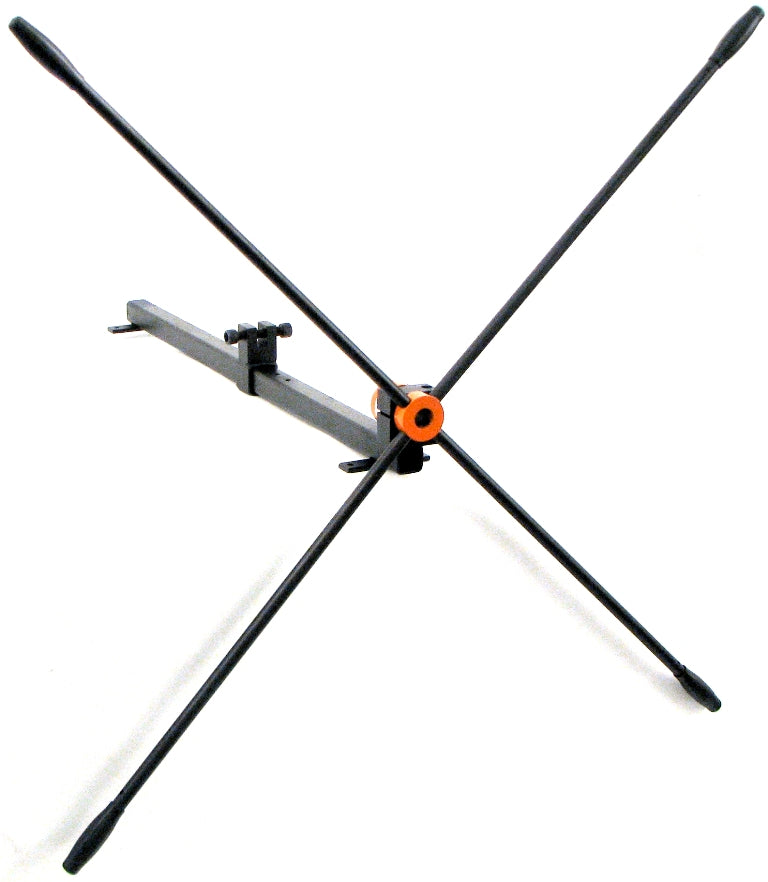

5 1/2" wide x 42 7/8" Long x 5 1/2" high x 23 1/2" (handle length).
Boxed weight: 42 lbs.
Box dimensions 32" long x 8" wide x 8" high

EASY TO USE - NO PRE-HEATING OF METAL REQUIRED TO TWIST.

Perfect Twists for Ornamental Wrought Ironwork

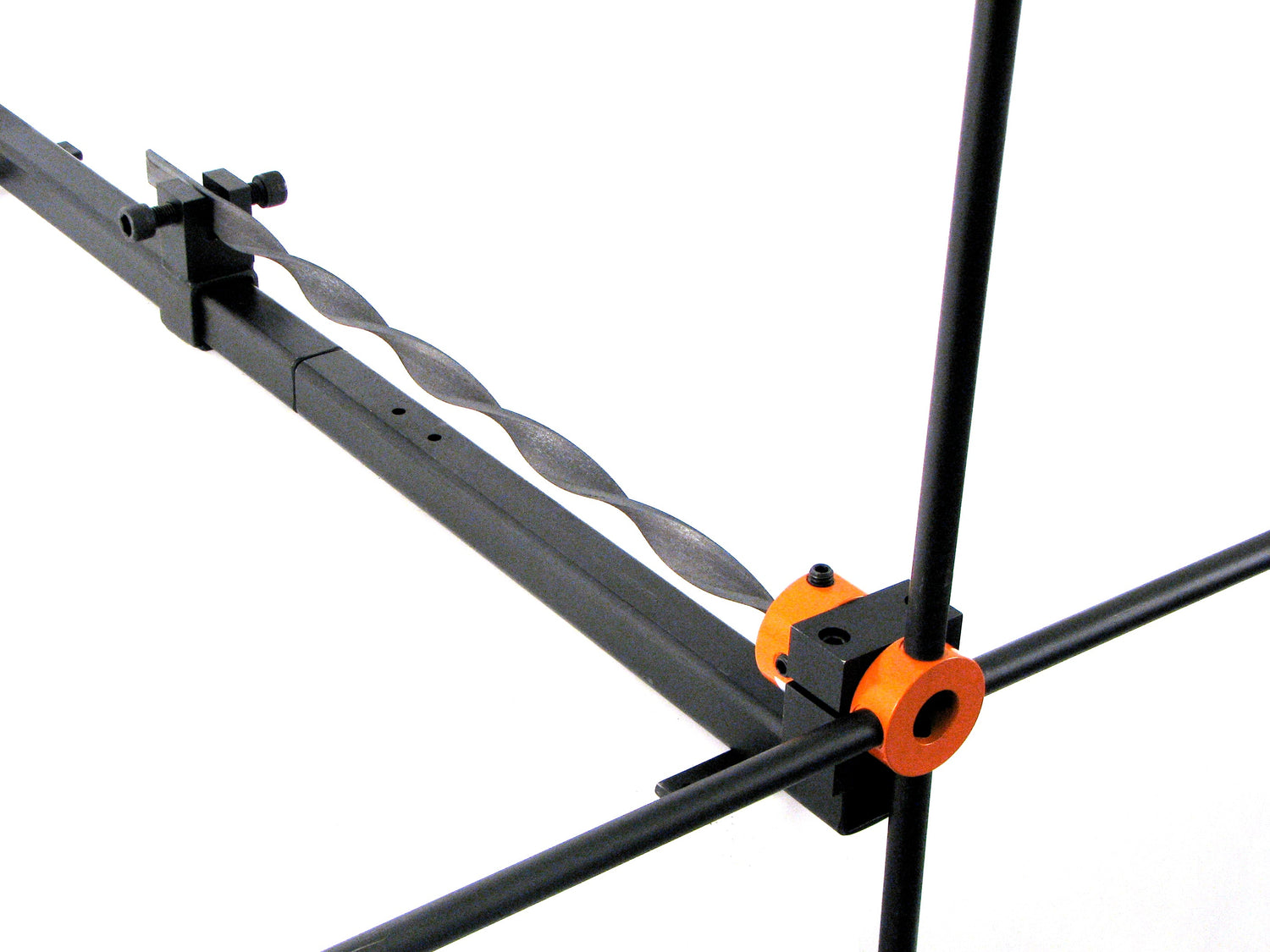

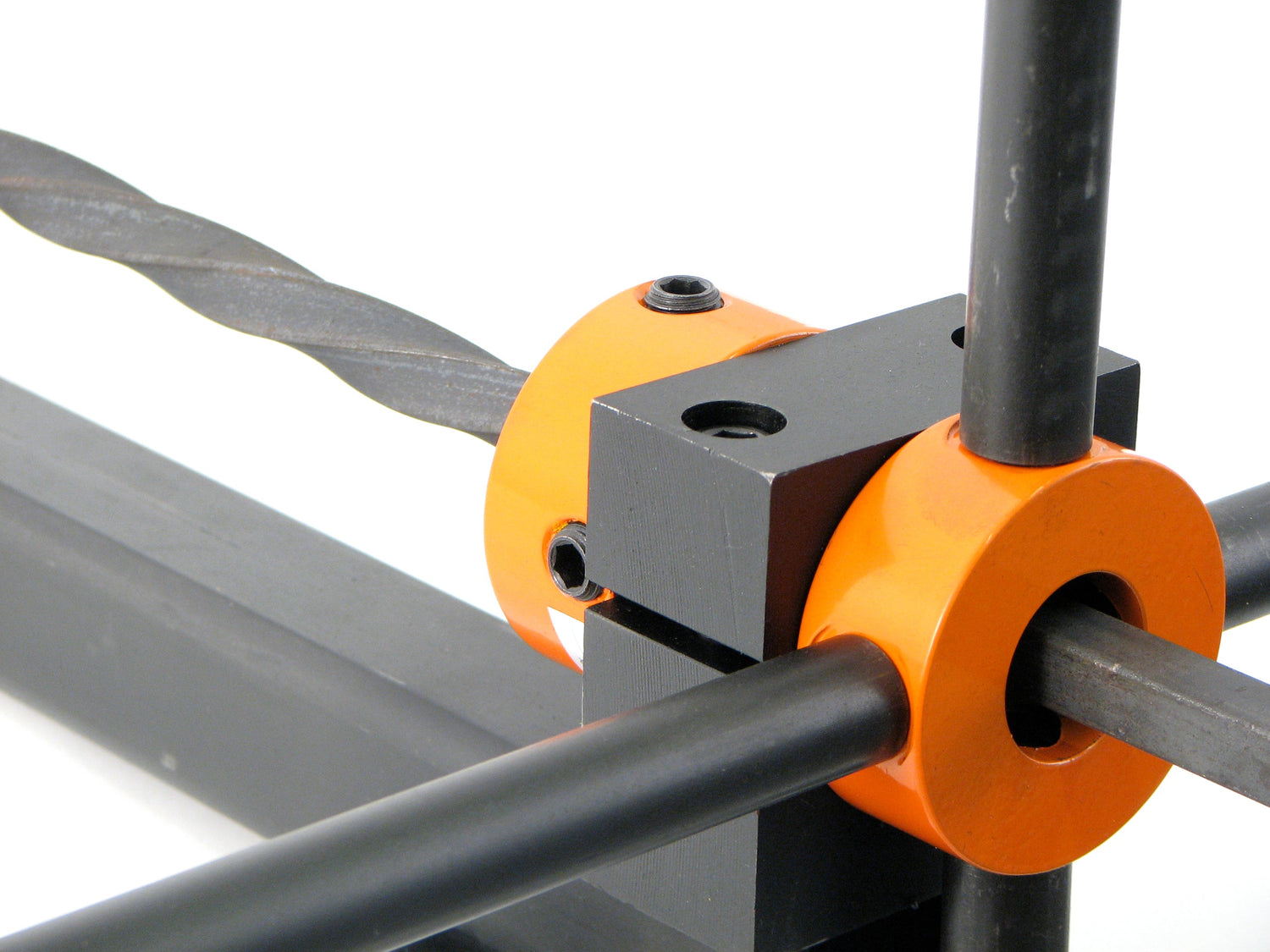

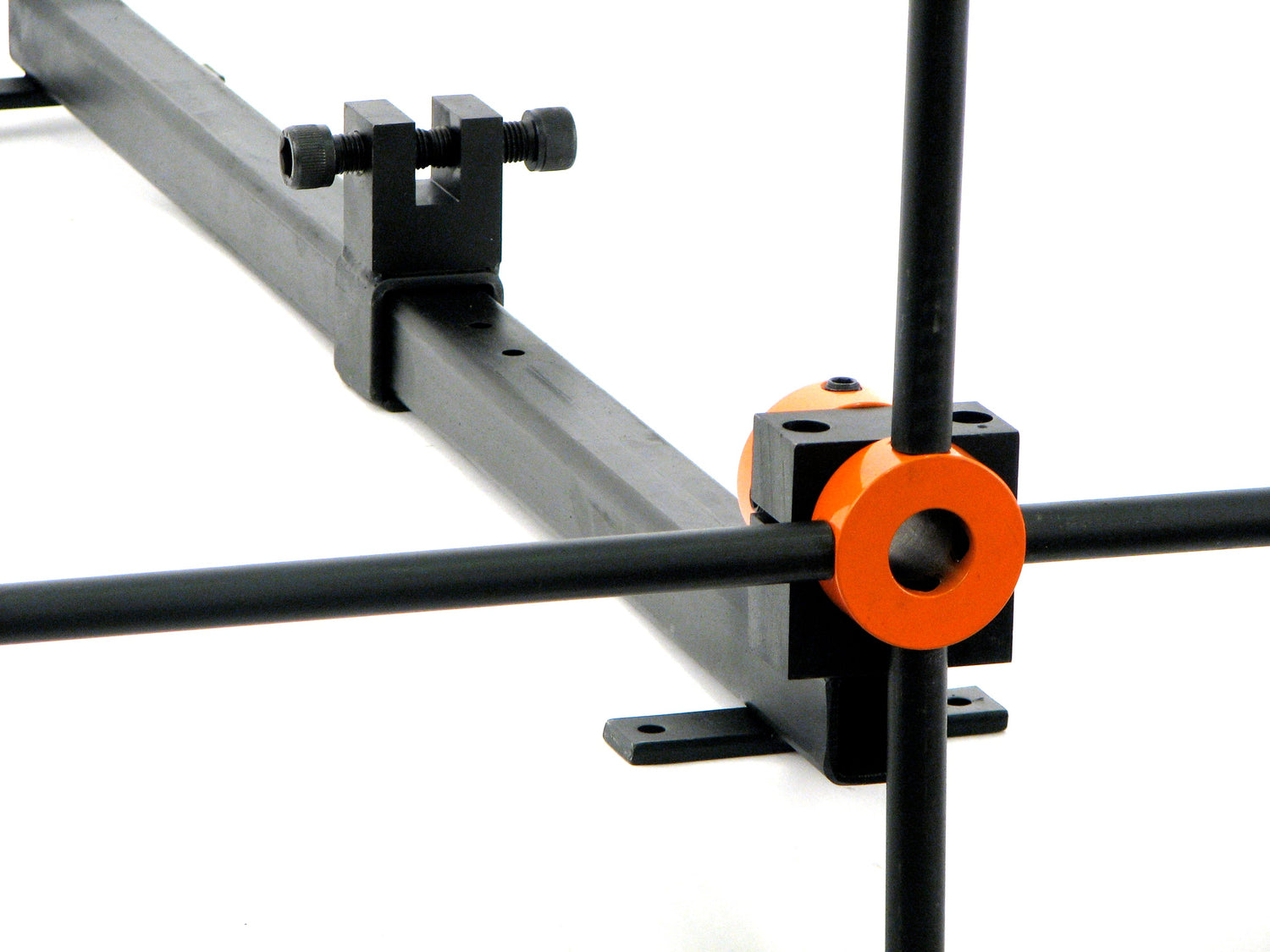

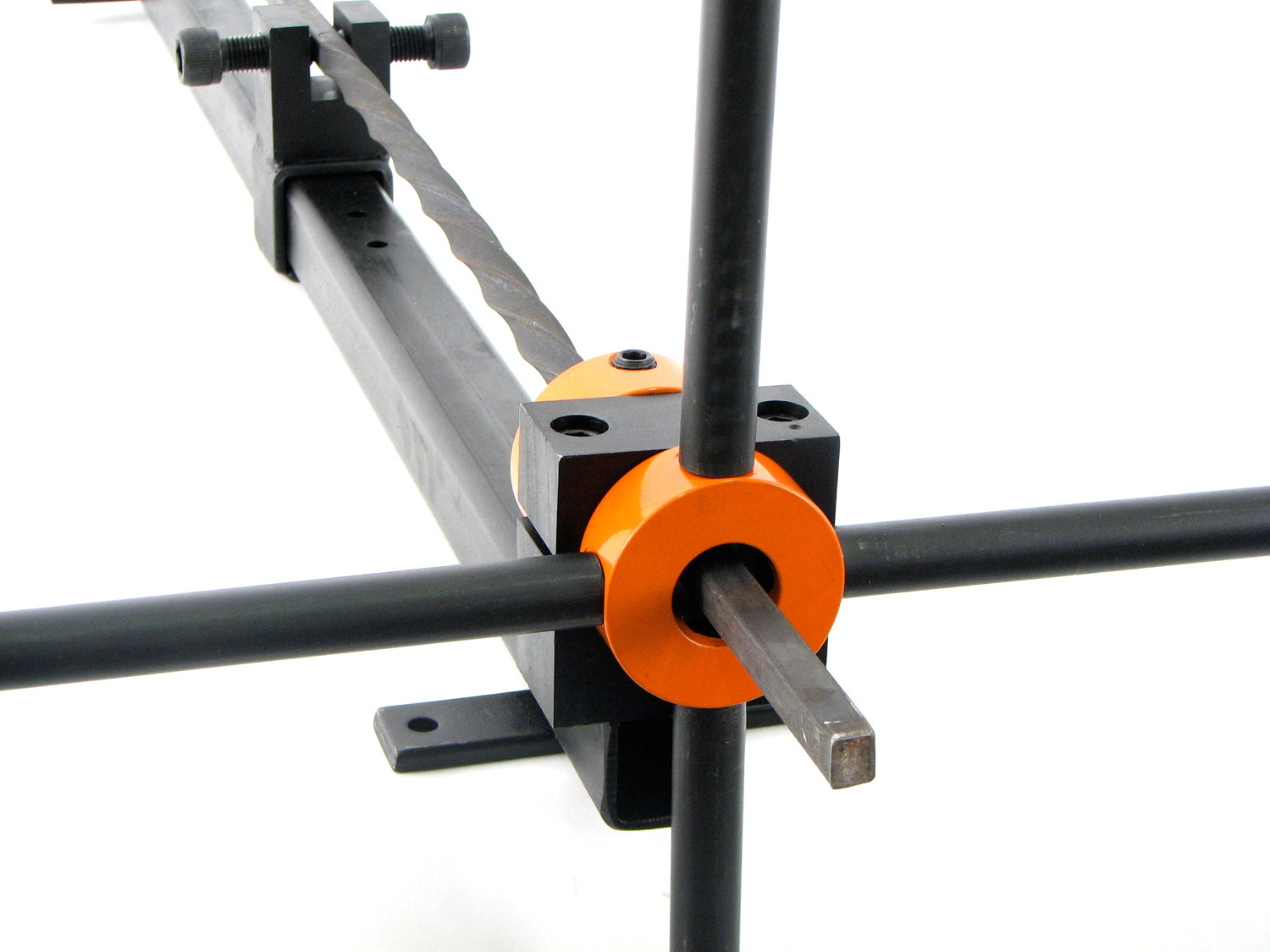

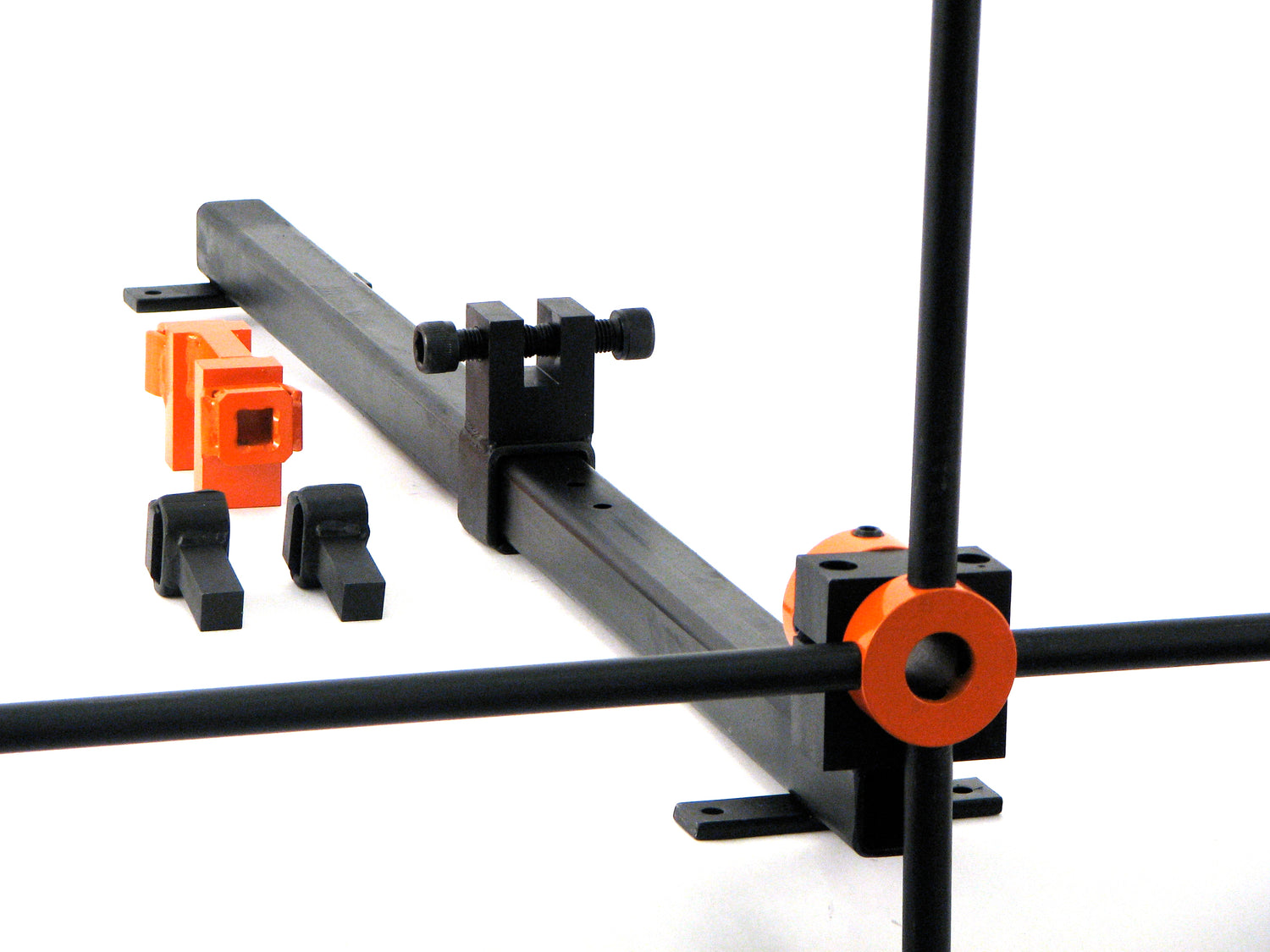

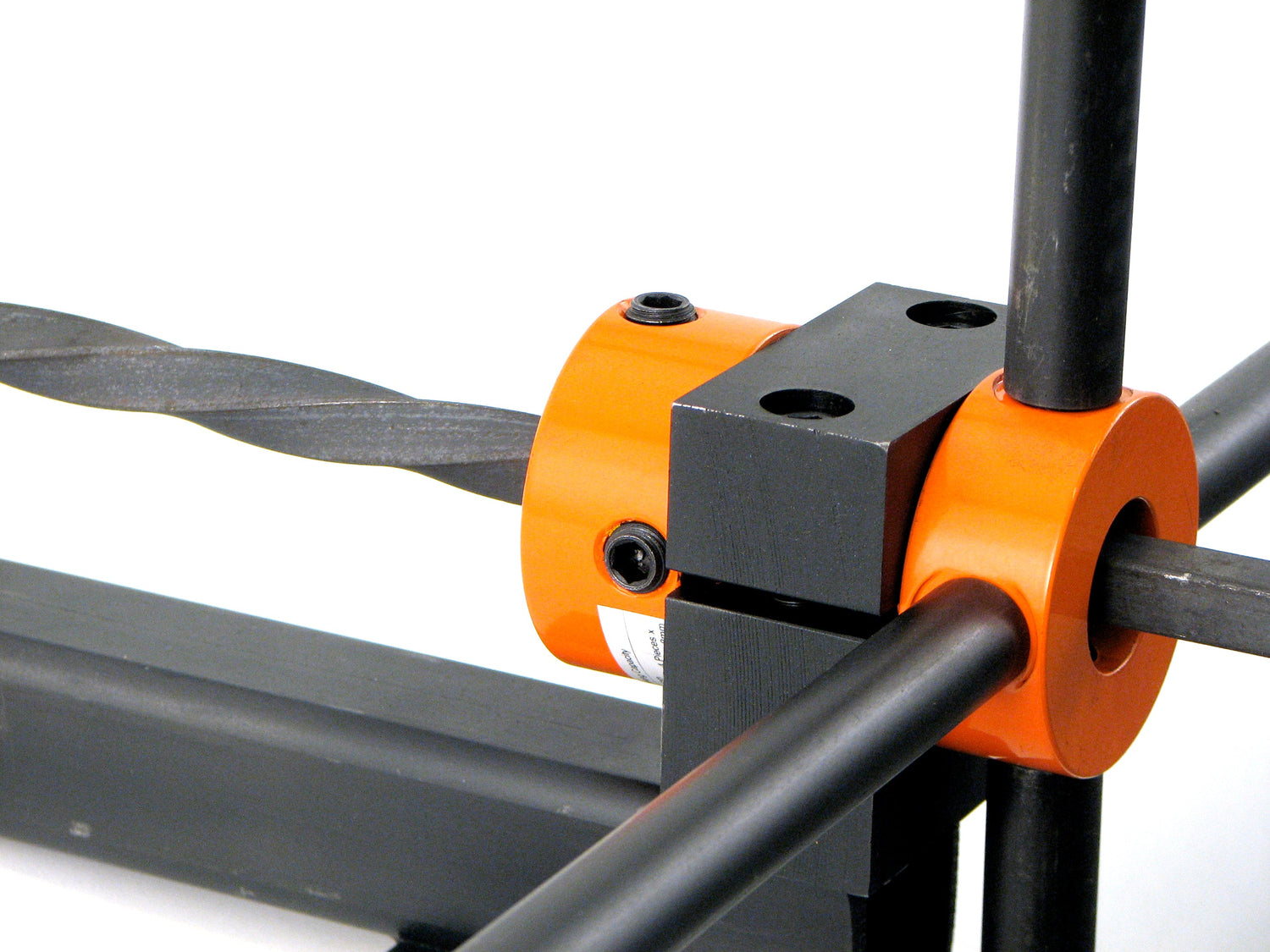

Unlock the full potential of your metalworking projects with the mid-range Metalcraft Master Twister. This hand-operated metal twisting machine is designed to add subtle, consistent twists to your ornamental wrought ironwork. With its clever clamp and sliding carriage arrangement, you can achieve even and precisely spaced twists in flat metal and solid square bar. This makes it an invaluable tool for creating decorative twisted wrought iron bars, particularly for fencing, gates, and balustrades. No preheating required—simply rotate the four handles to achieve the desired number of twists effortlessly.

Enhance Your Designs with Basket Making Components

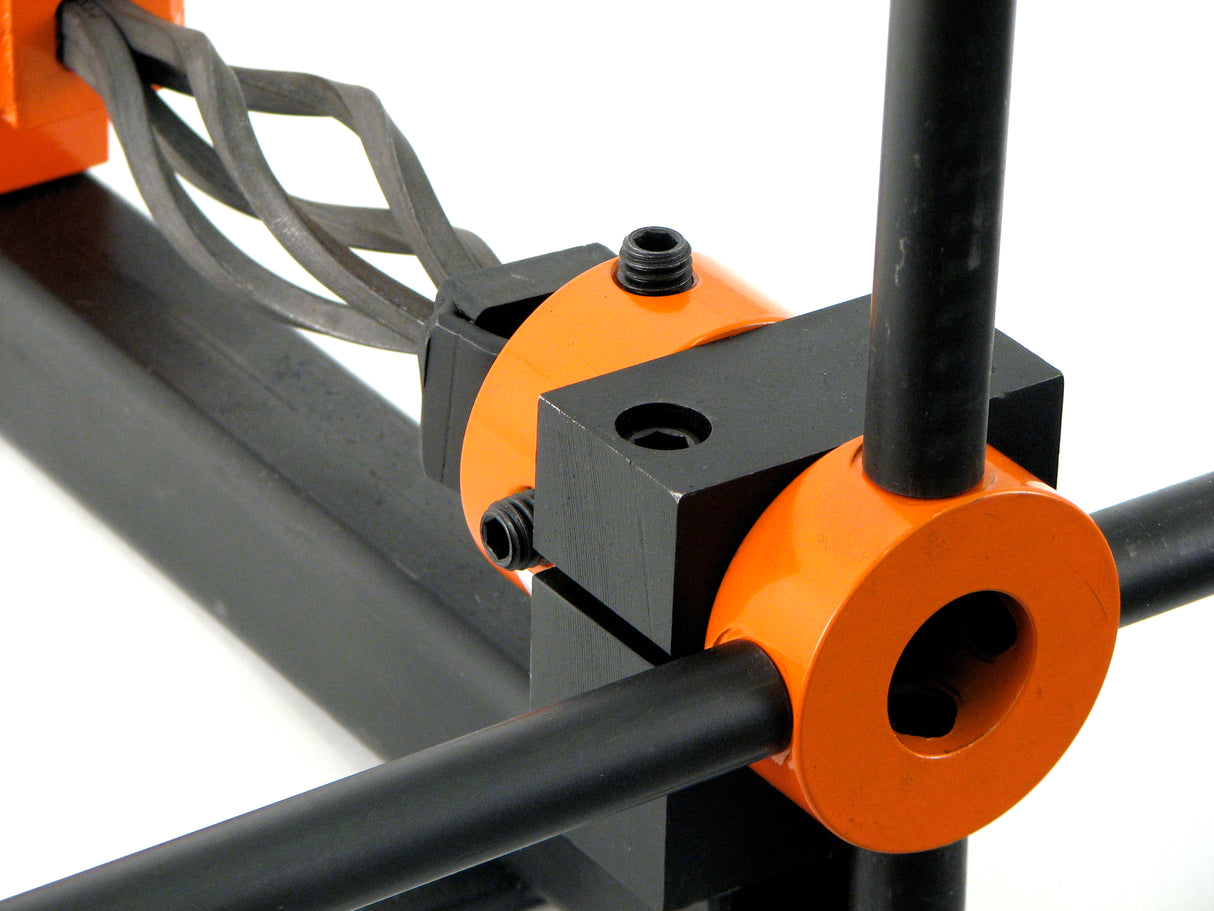

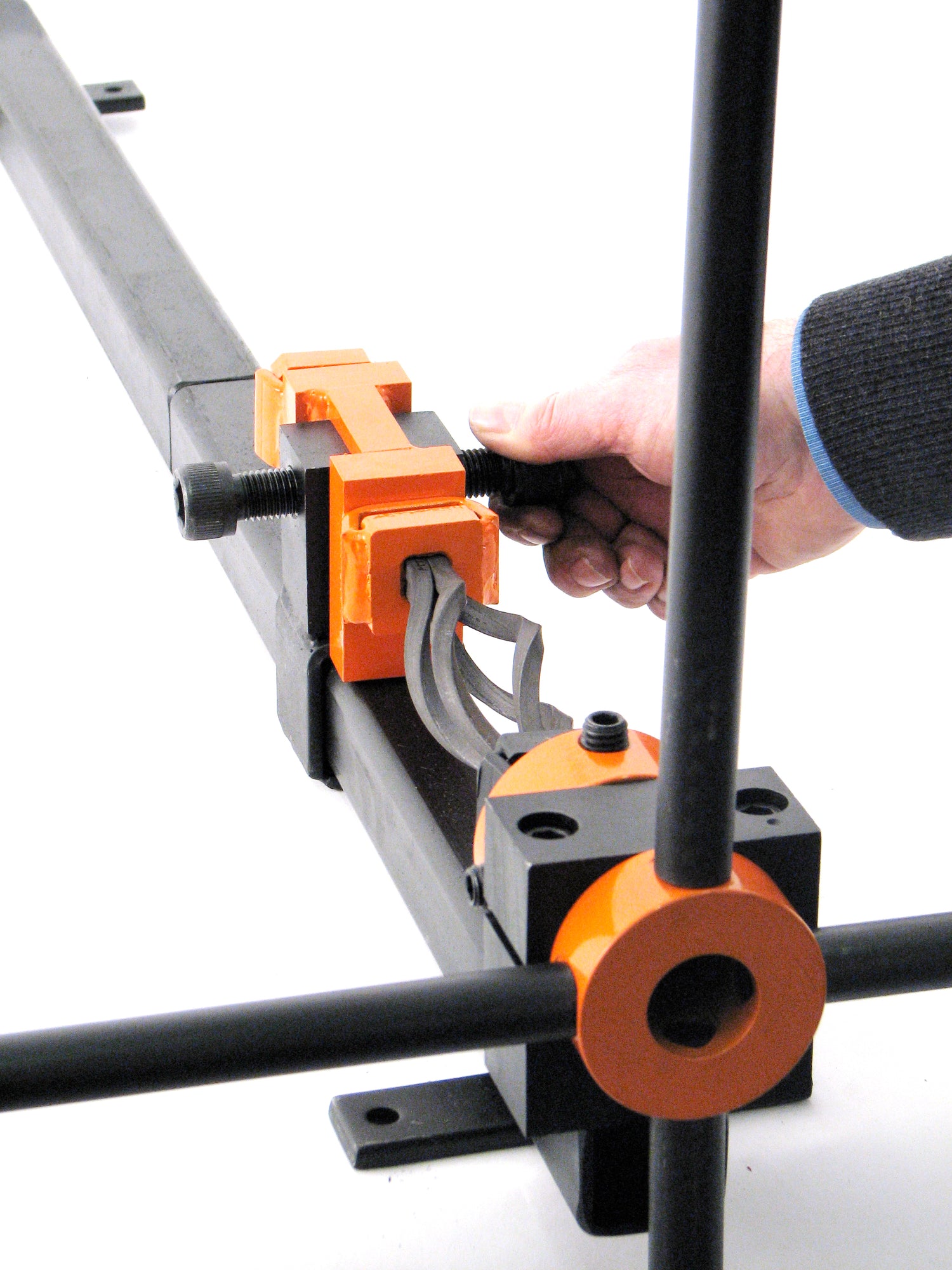

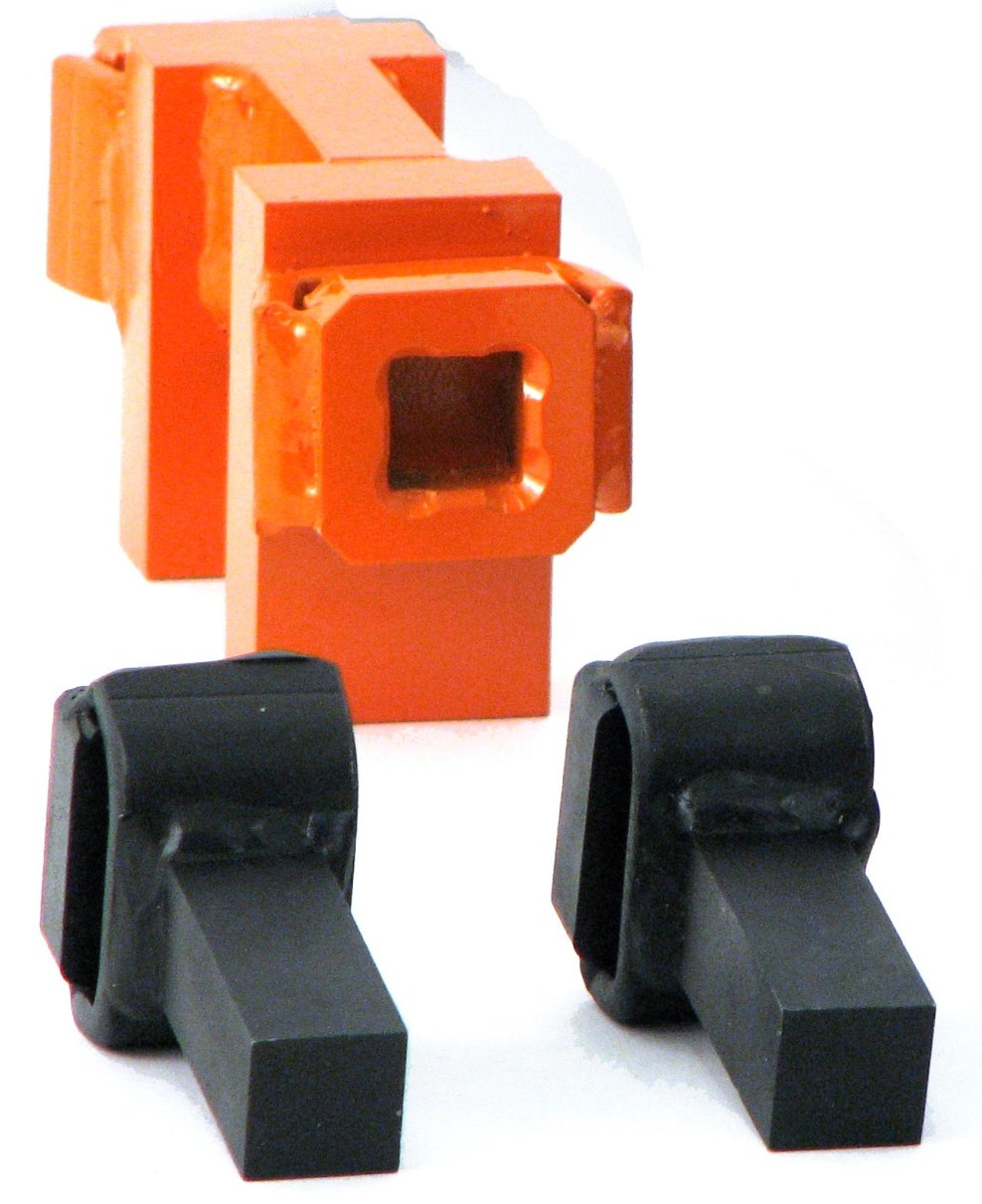

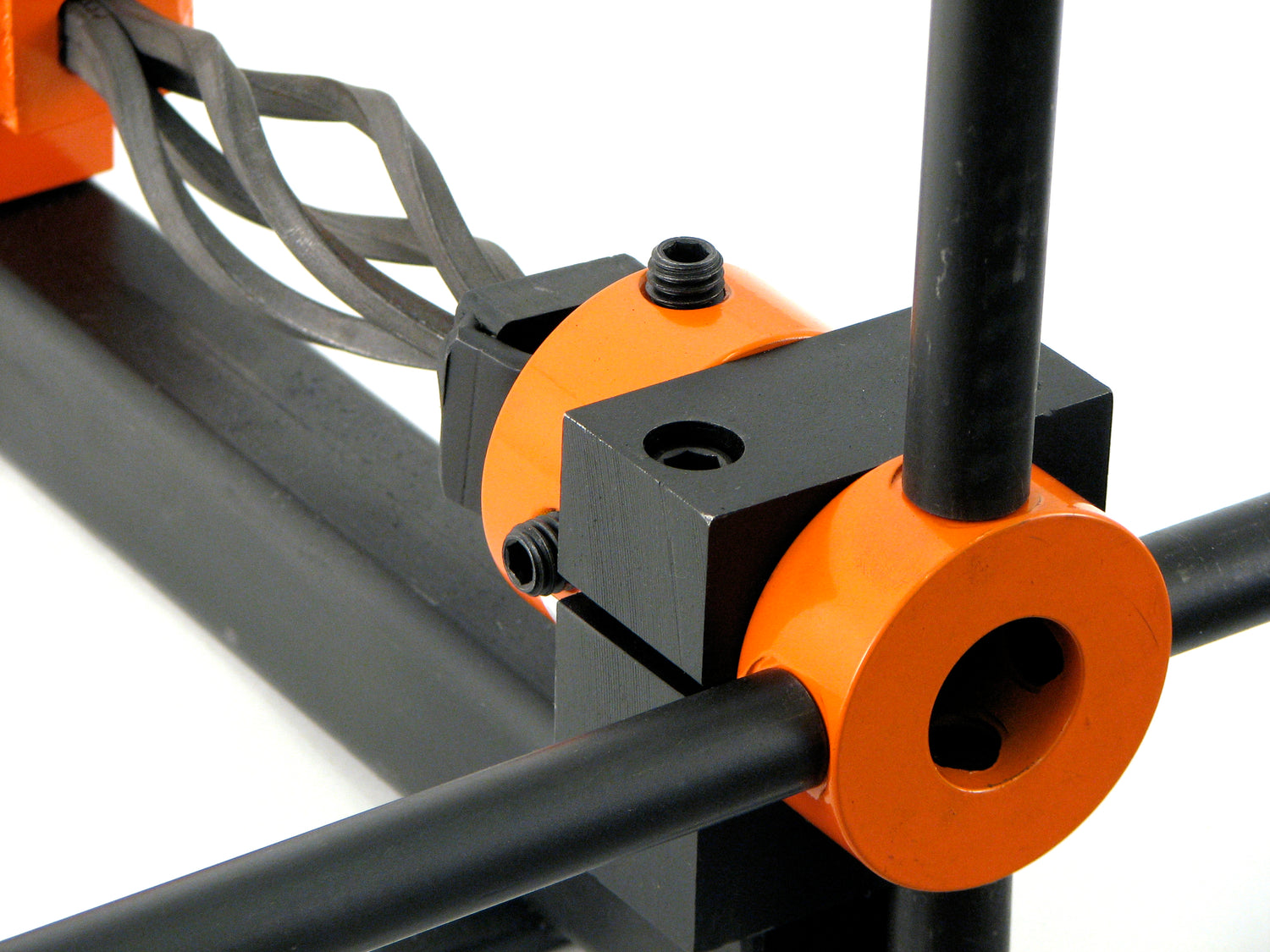

This version of the Metalcraft Master Twister includes the optional Basket Making Components, allowing you to expand your creative possibilities. These attachments are designed to grip the ends of pre-welded clusters of square bars (clusters of four 1/4" or 5/16" hot rolled mild steel solid square bars). You can twist these clusters into a rope bar and then twist them back in the opposite direction to open out into slender decorative baskets. The Basket Making Attachment also enables you to put a general twist in square tubing, with a twisting length of approximately 34 1/8". Additionally, you can twist 1/4" solid round rods into a rope design, giving you even more versatility in your metalwork.

Versatility and Ease of Use

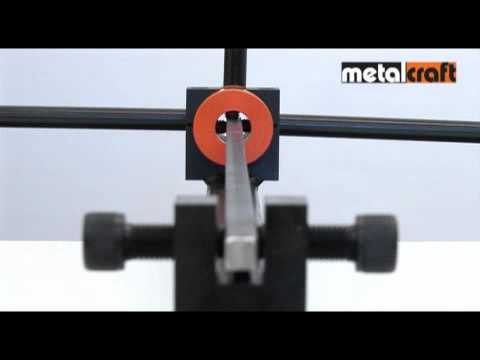

The Metalcraft Master Twister is not only powerful but also user-friendly. Its ergonomic design ensures ease of use, allowing both professionals and hobbyists to achieve high-quality results with minimal effort. The included video clip demonstrates the process of using the Basket Making Components, guiding you step-by-step to create beautiful and intricate designs. Whether you're enhancing gates, fences, or balustrades, this tool provides the precision and versatility you need to bring your artistic visions to life.

All tools are supplied with operating instructions. Please note that the maximum working capacity stated is for Hot Rolled Material or Annealed metal. Working beyond these limits or with material of greater hardness may reduce the operational life of the tool.
