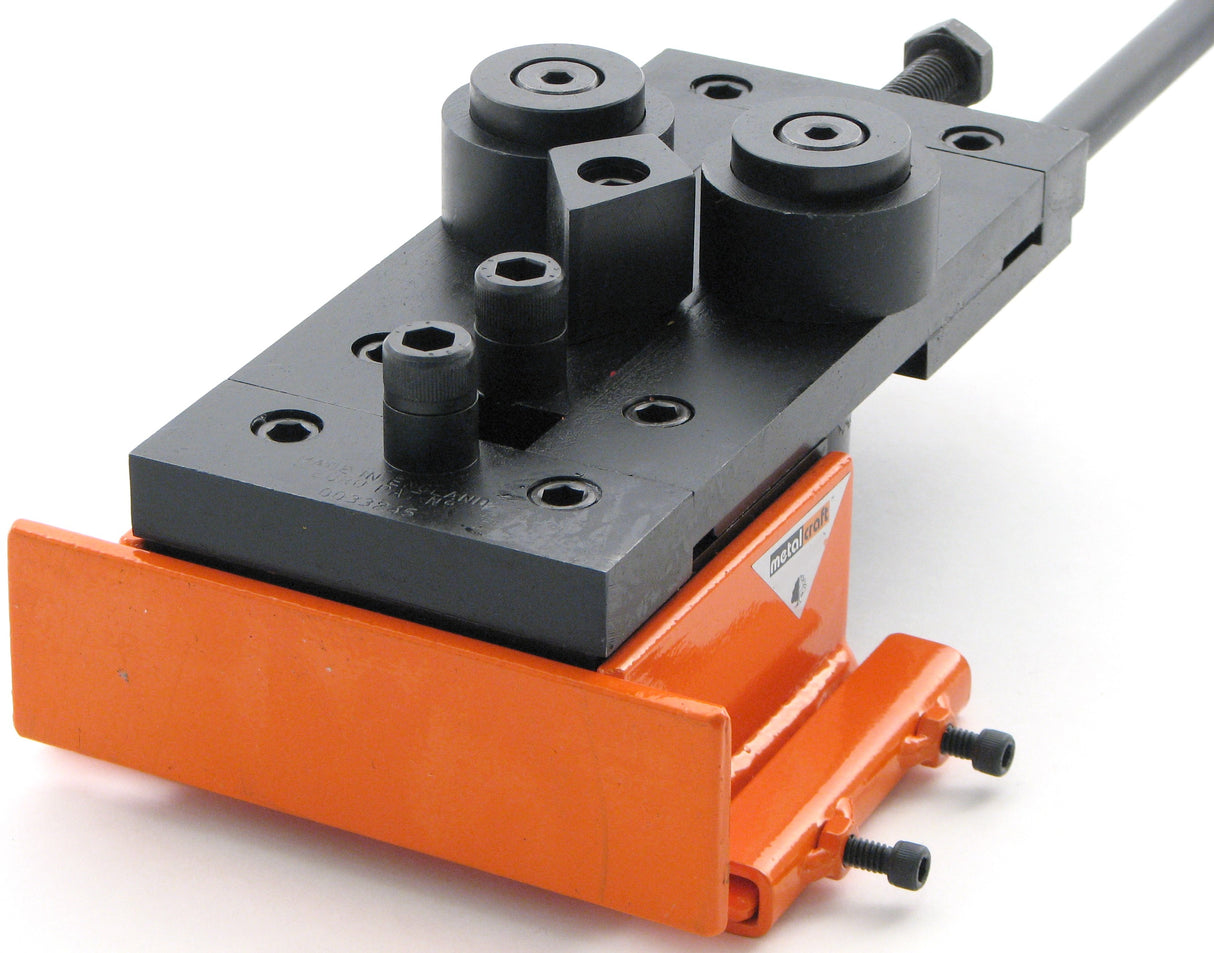

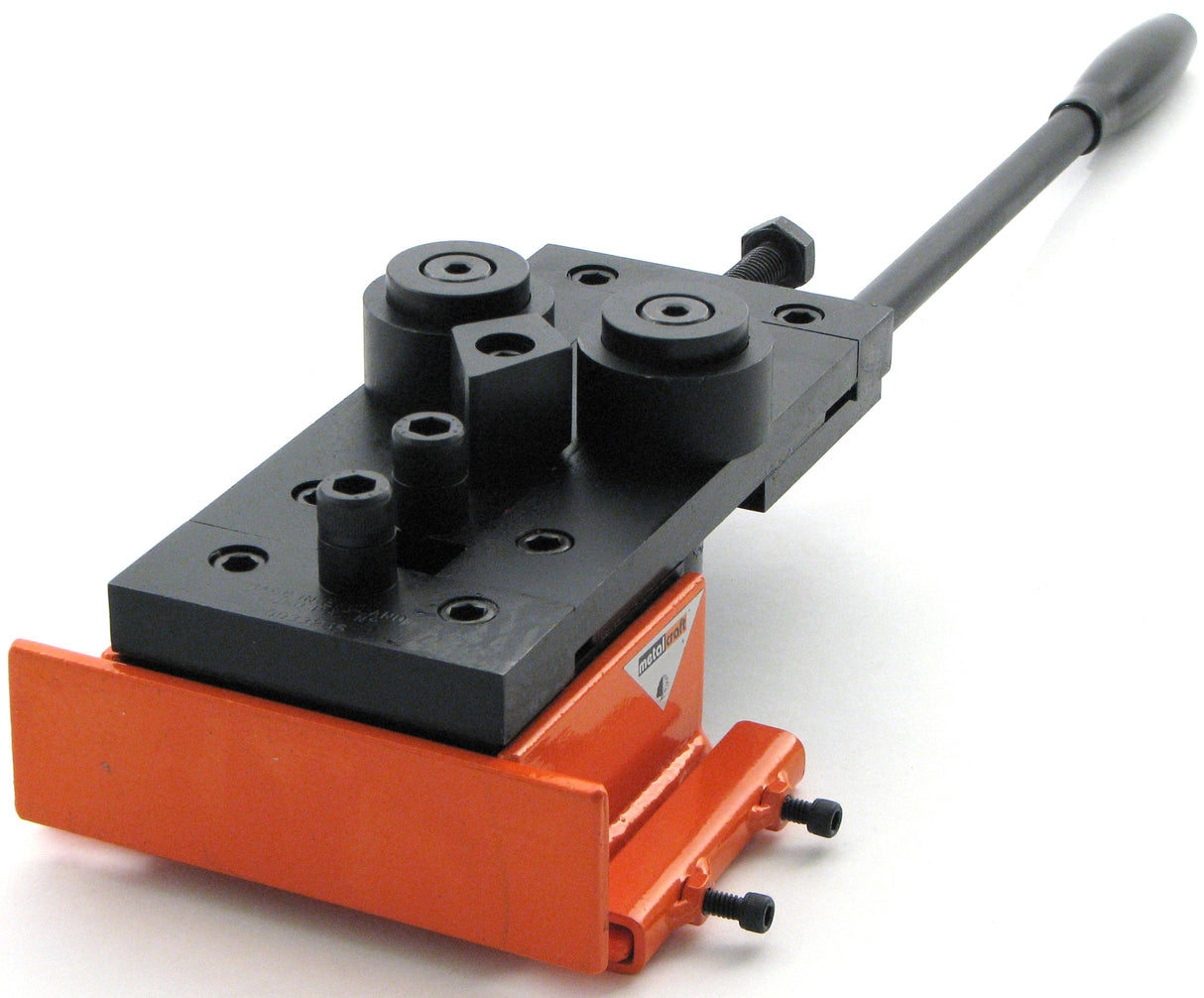

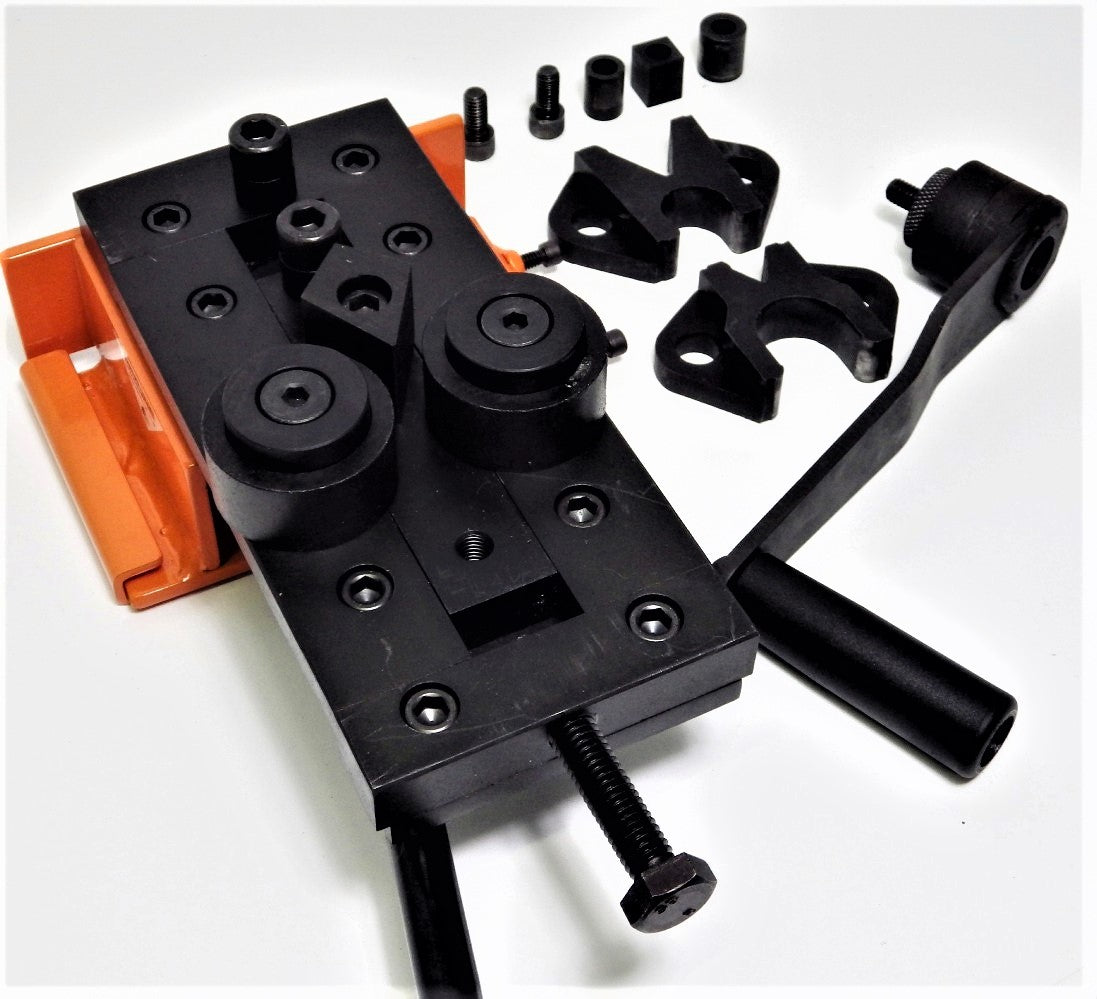

Metalcraft Master RBR Tool complete with Micro Bending Kit

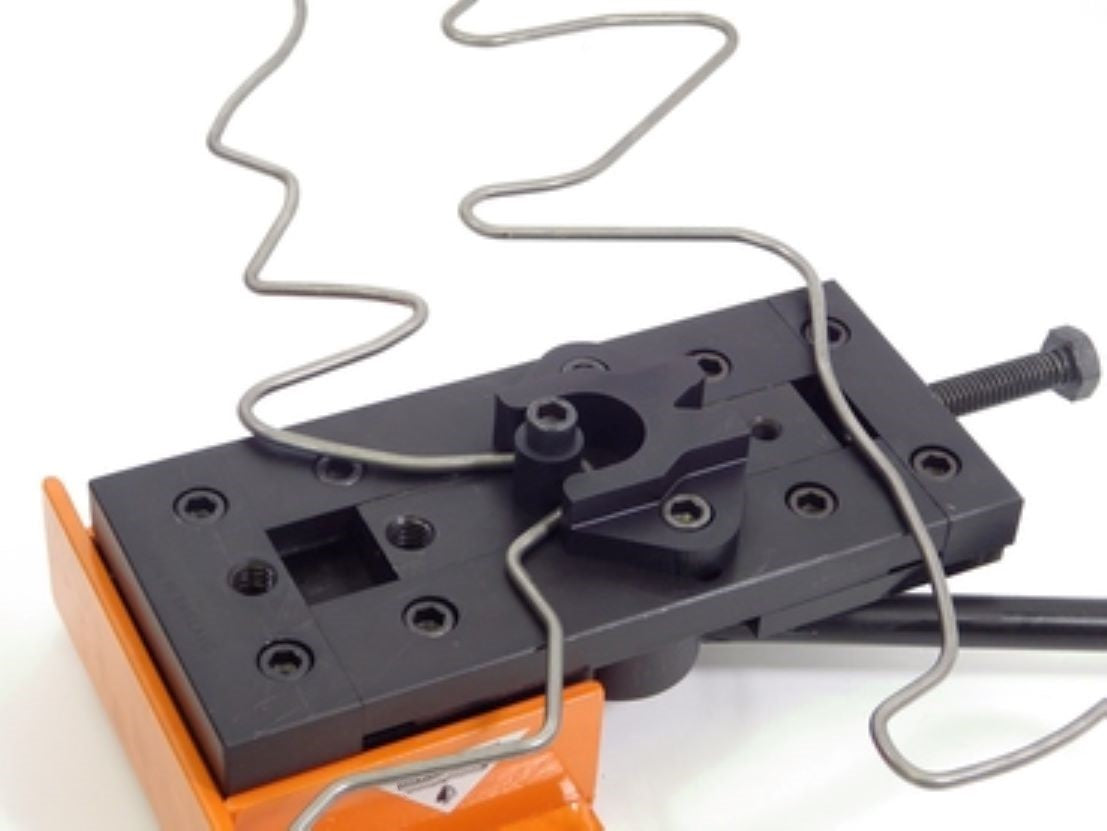

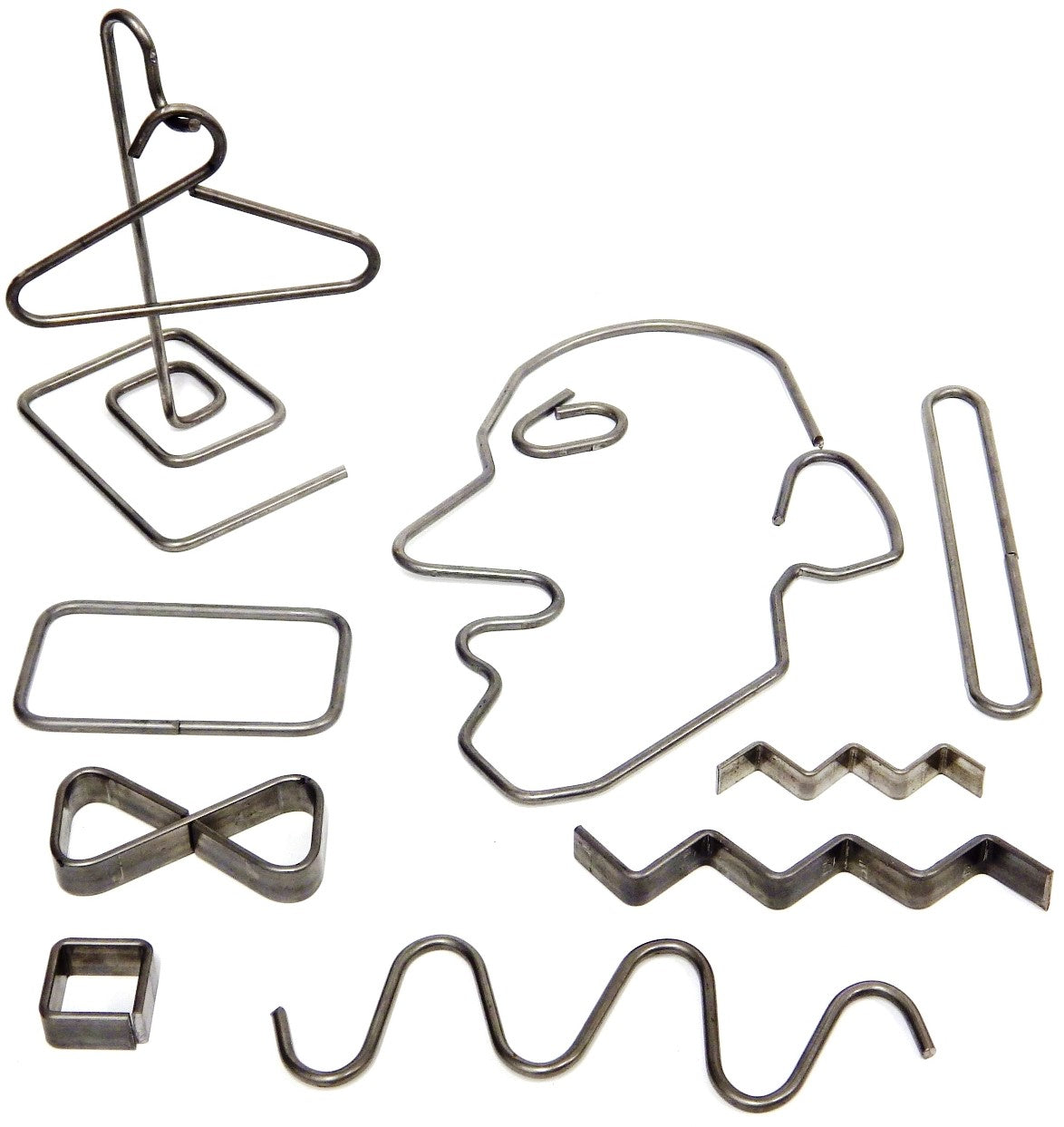

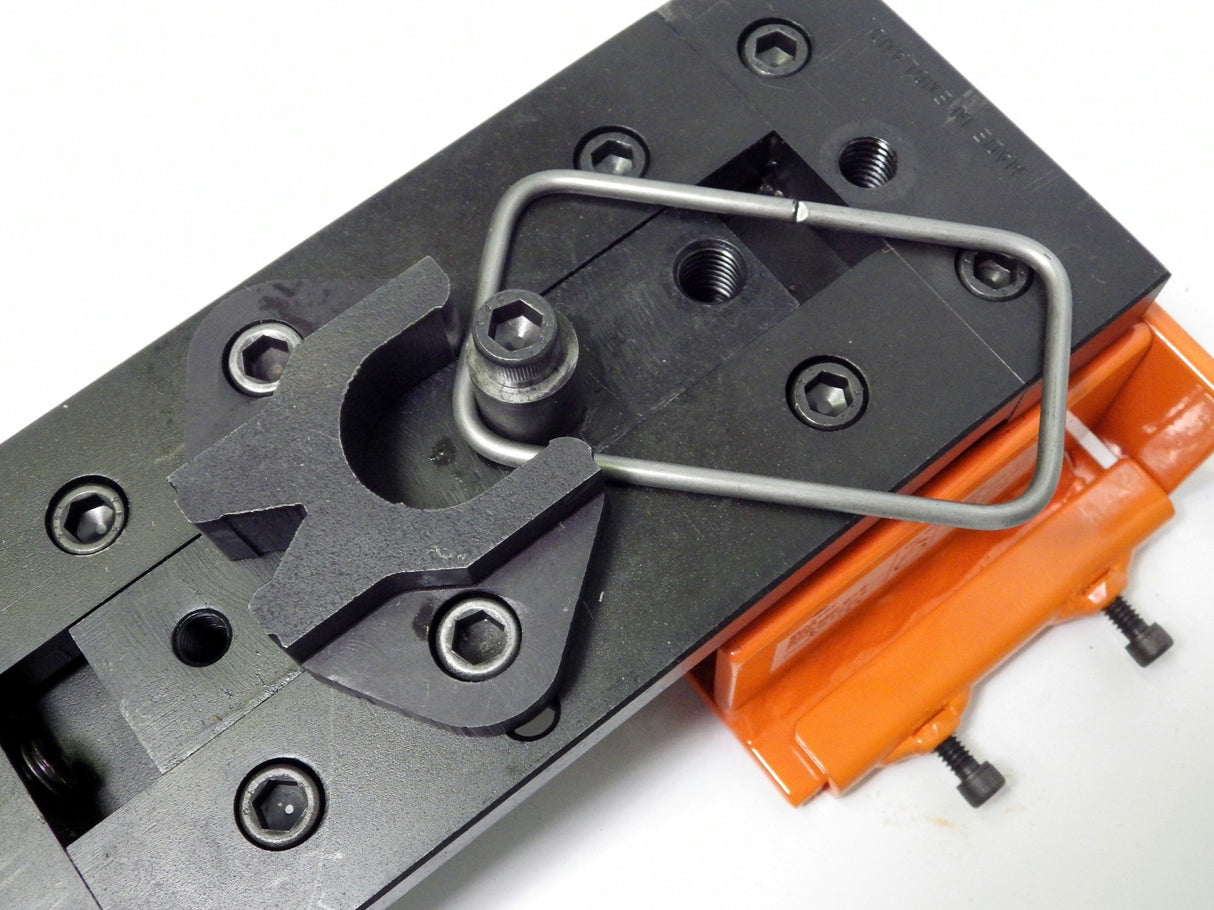

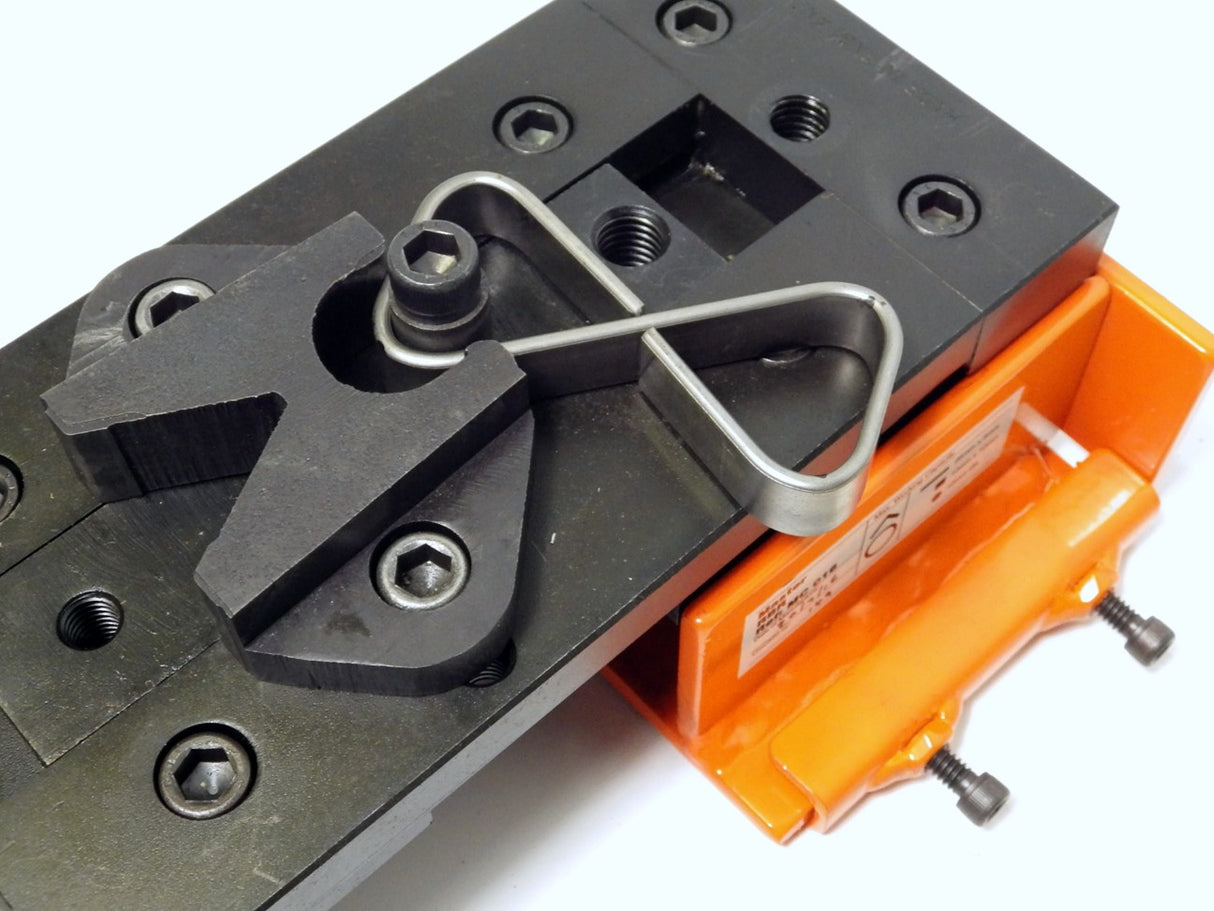

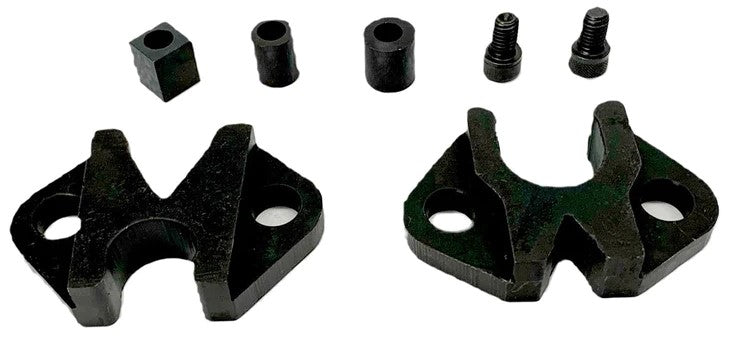

Packing all the features of the basic Metalcraft Master RBR (Riveting, Bending & Rolling) Tool (MC016), the Micro Bending Kit add on comprises 2 dual functions drop on dies which can be used with three new bending heads as well as the existing diamond shaped bending head to allow you to make tighter bends, radiused bends and also allow free form progressive bending.
All these features make this combo a remarkably powerful and versatile metal forming hand tool. Cornerstone of the Metalcraft Range of Tools.
For those existing owners of the MC016 Master RBR tool only, a separate micro bender kit can be purchased so you too can utilize the Master RBR Tools full capability.
Metal bender which can bend angles up to 60 degrees using its’ special diamond shaped forming head making this great bending tool a must for anyone looking for quality metal forming equipment.
Additionally, you can rivet metal together using the cold riveting system which squeezes a mild steel rivet (also available from Metalcraft) placed in the holes punched on our Master Punch & Shear tool to create a very strong joint without you needing to invest in welding equipment and training. Little wonder these tools prove so popular with hobbyists, DIY enthusiasts, and educational institutions alike.
For what this versatile 3 in 1 tool does, it is arguably the most valuable metal bending hand tool around today.
EASY TO USE - no pre-heating of metal required to roll, bend, or rivet.

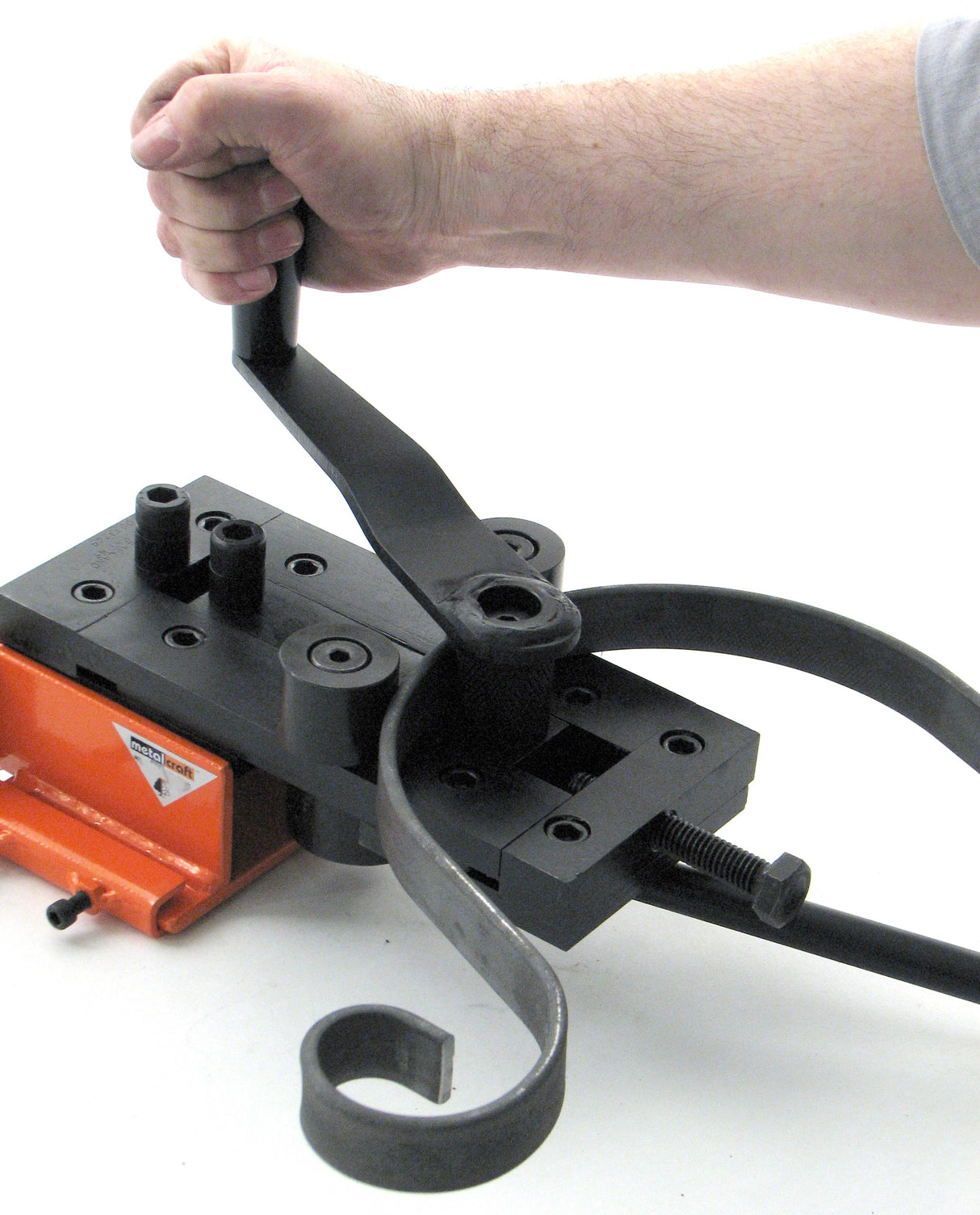

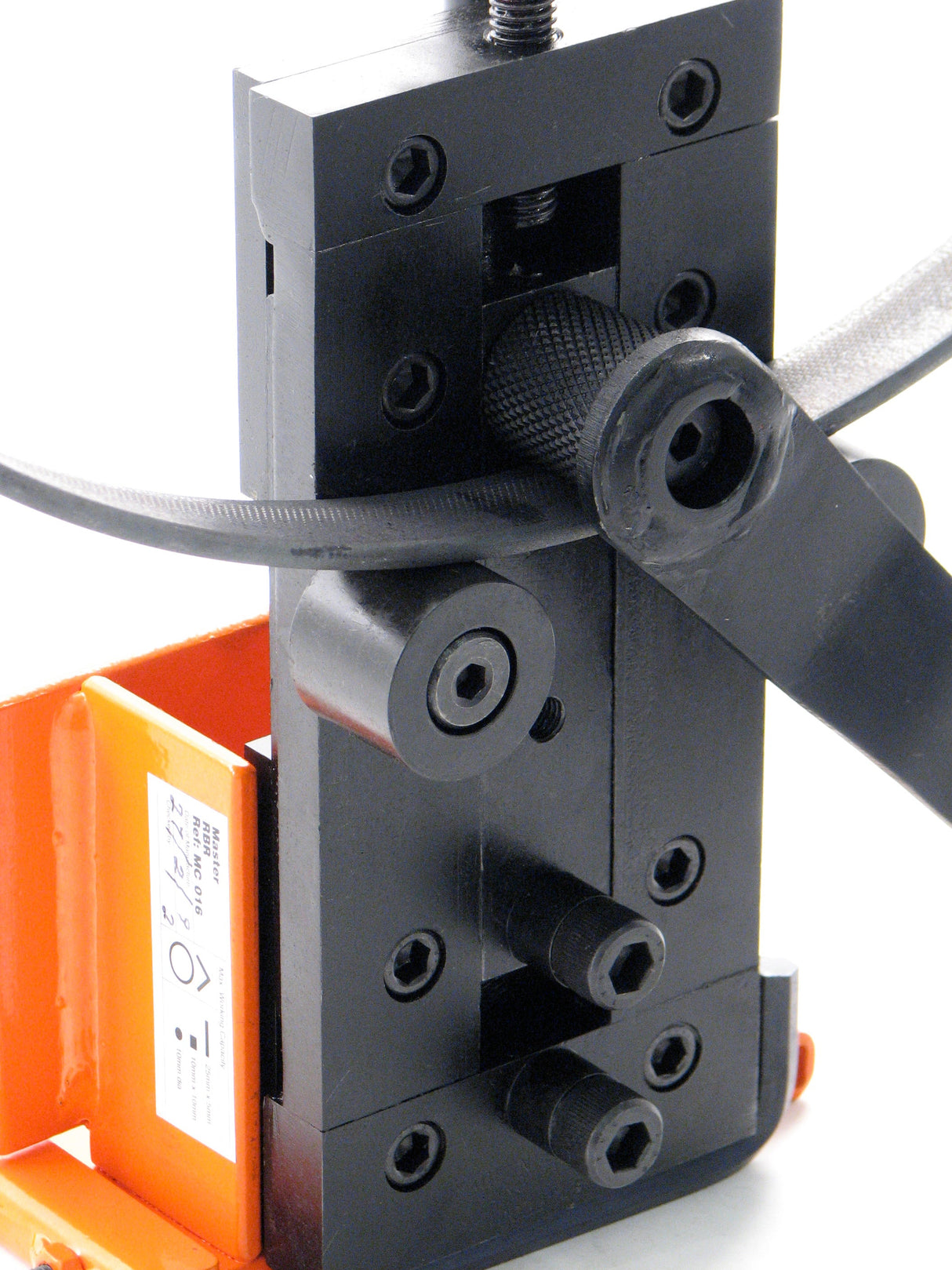

Rolling is achieved by using the winding handle to drive the bar forwards and backwards through the rollers. As this is done with each pass, the long lever is used to gradually increase pressure to roll an ever tighter curve. Updated in 2017 to now make it even easier to produce more consistent bends and circles/arcs when rolling.
(Master RBR tool shown in this photo)

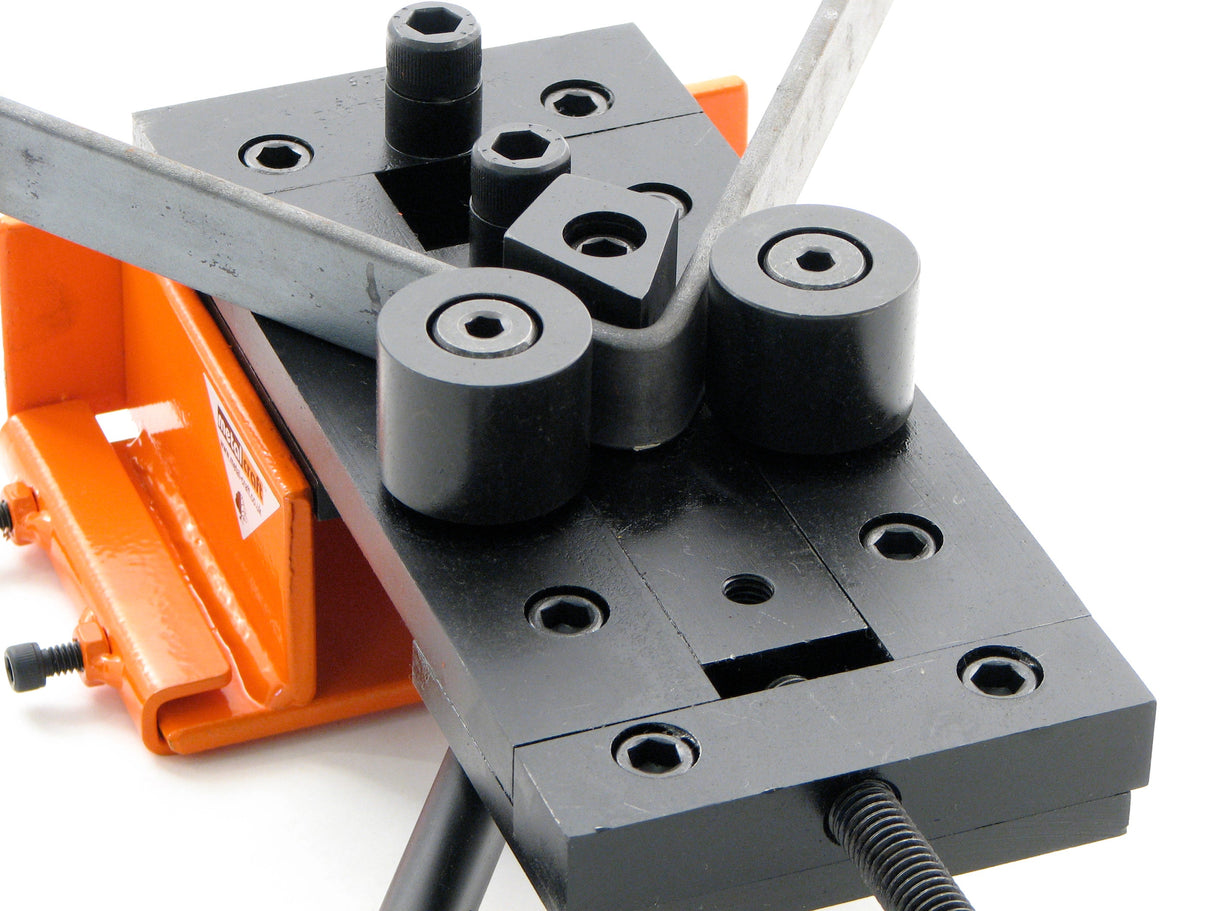

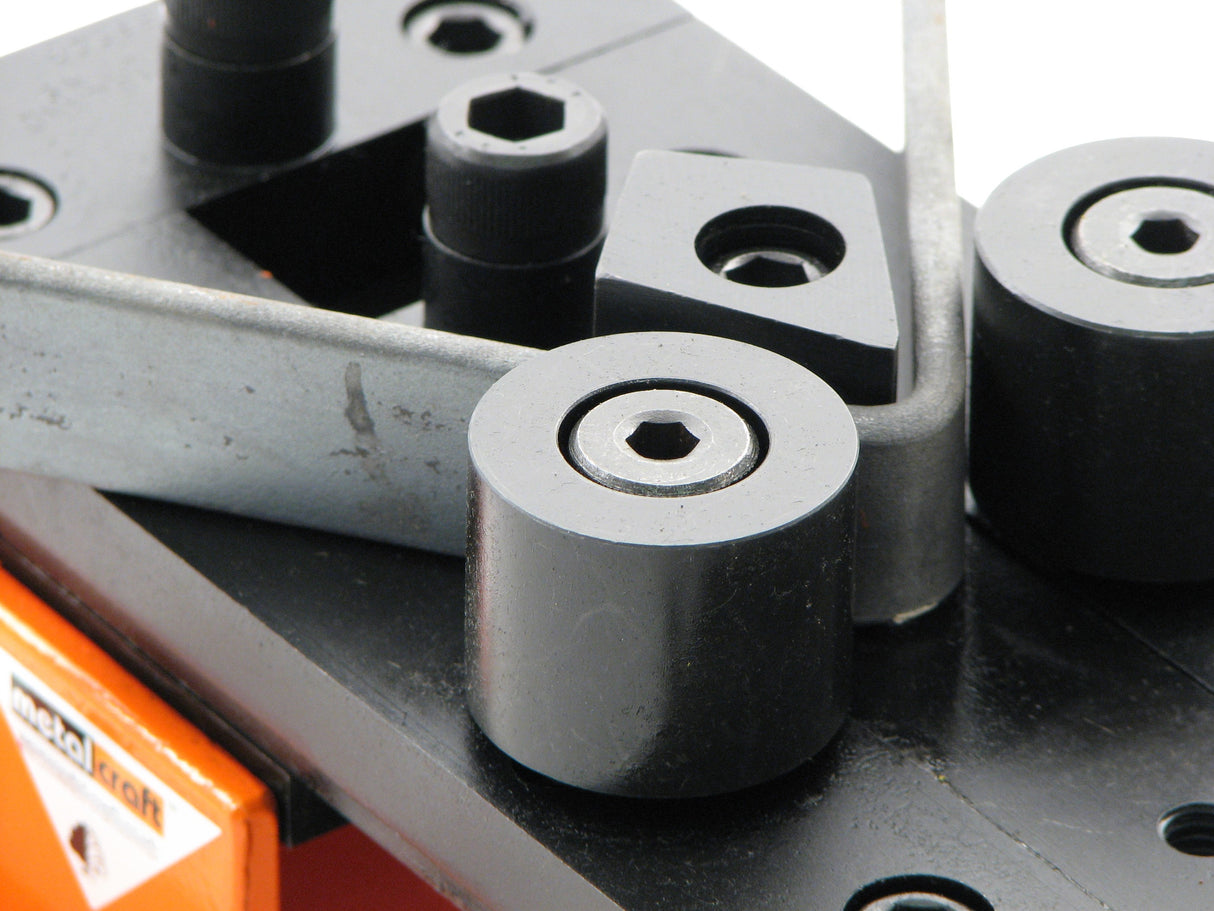

Bending For the bending operation, metal is placed between the diamond shaped former and the two rollers. Operate the lever to gradually bend to required angle. (Master RBR tool shown in this photo)
Riveting is simply achieved by placing the material to be joined (with rivet in pre-punched hole) between the riveting posts on the machine. Use the lever to squeeze the rivet to form a strong joint.
Metalcraft's riveting system provides a safe, strong and authentic way of joining metalwork together for beginner and professional alike. Naturally, those with welding equipment may prefer to use this as a quick and convenient way to join formed metalwork together particularly in commercial use. It is no surprise that those able to weld easily spot the business diversification opportunities that Metalcraft tools offer. (Practical RBR tool shown in these two riveting photos)
Master RBR Micro Bending Kit IS included with this version of Master RBR Tool.
_____________________________________________________
METALCRAFT MASTER RBR TOOL complete with MICRO BENDING KIT TOOL SPECIFICATIONS:
Maximum Working Capacity:
Rolling: 1" wide x 1/4" thickness OR 1 3/16" wide x 3/16" thickness (flat metal strip)
3/8" (solid round rod)
3/8" (solid square bar)
Bending: 1" wide x 3/16" thickness (flat metal strip)
3/8" (solid round rod)
3/8" (solid square bar)
Angle of bend achievable 180 degrees to 60 degrees
Riveting: 3/16" diameter rivet

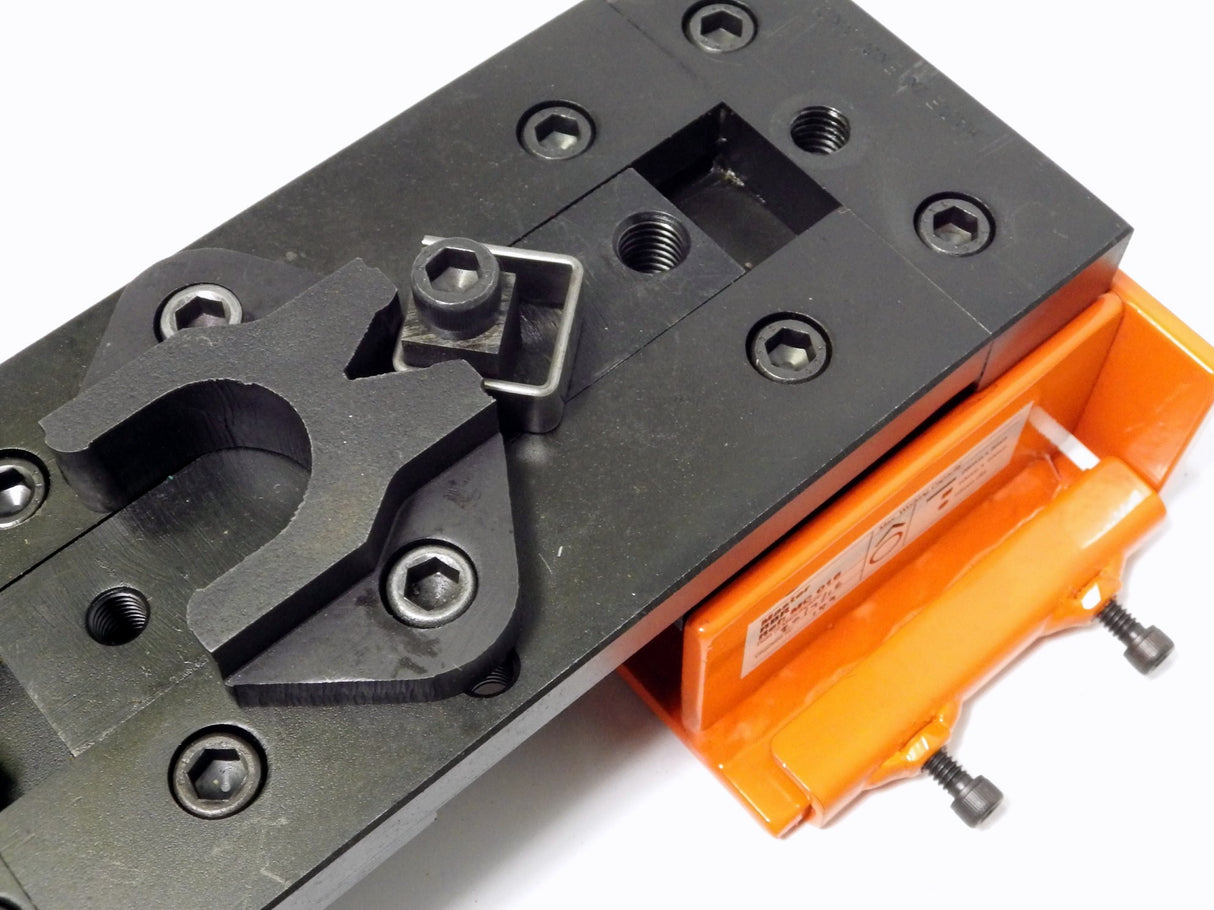

Micro Bending using "U" Formed Die: 3/4" wide x 1/8" thickness (flat metal strip)
9/16" wide x 1/8" thickness - reverse bend only - (flat metal strip)
1/4" Solid Round Rod/Square Bar using the larger of the 2 "U" dies provided in kit.
3/16" Solid Round Rod/Square Bar using the smaller of the 2 "U" dies provided in kit.
Micro Bending using "V" Formed Die:
3/4" wide x 1/8" thickness (flat metal strip)
9/16" wide x 1/8" thickness - reverse bend only** - (flat metal strip)
1/4" Solid Round Rod/Square Bar using the larger of the 2 "V" dies provided in kit.
3/16" Solid Round Rod/Square Bar using the smaller of the 2 "V" dies provided in kit.
FREE Downloadable Micro Bending Kit How To. CLICK HERE for .pdf file
Machine Dimensions:
6 1/2"w x 11 3/8"d x 4 1/2"h x 17 1/4" (handle length).
Boxed Weight: 34 lbs.
Other Features:
End Stop Screw fitted for producing consistent bends and circles/arcs when rolling.

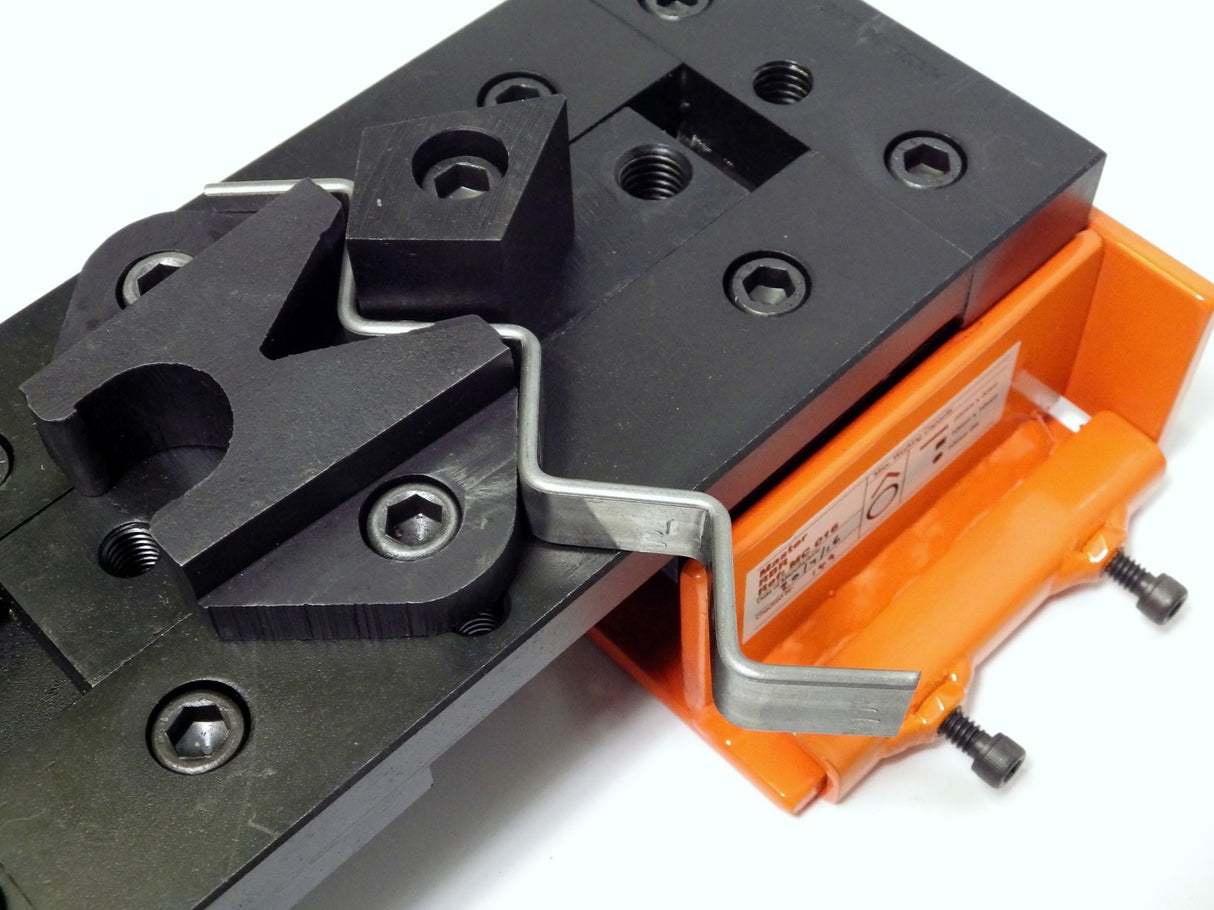

** A reverse bend is: When bending on the Micro Bender making a square or a pentagon shape is what we call a closed bend as the shape is being closed and the steel ends will eventually touch. A reverse or “s” bend is where the second bend is bringing the steel away from the original bend i.e. like a zig zag effect. Reason you can only use a lighter gauge material on a reverse bend is because when reverse bending the steel needs to sit on the recessed part of the die ( if the reverse bend is tight ) which is only half the width and so the bent steel does not have the full support of the die.
All tools are supplied with operating instructions. Please note that the maximum working capacity stated is for Hot Rolled Material or Annealed metal. Working beyond these limits or with material of greater hardness may reduce the operational life of the tool.
