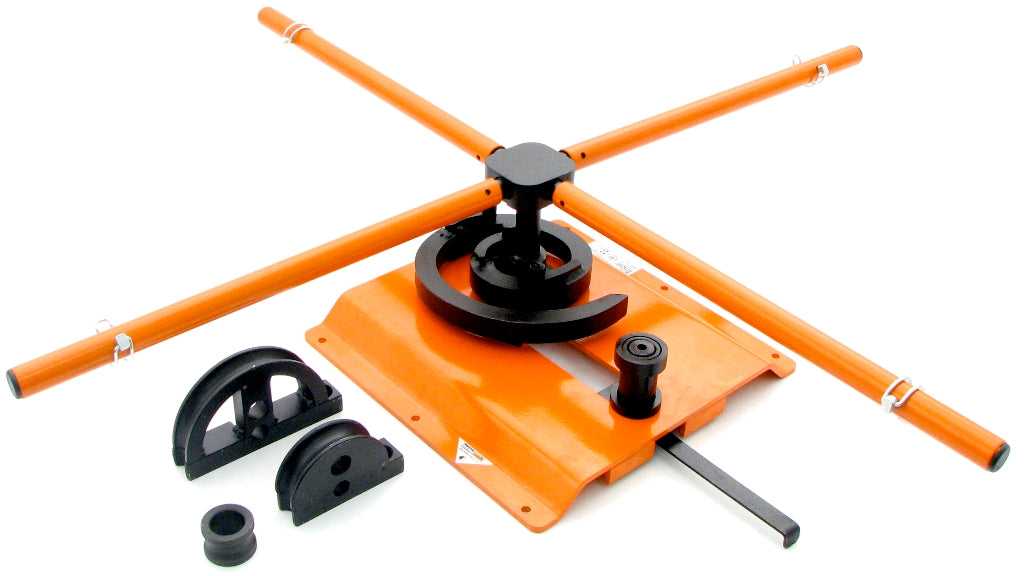

Metalcraft Scroll Bender MK3/4 Former complete with Tube Bending Components
LOOK AT THE SIZES - flat strip, solid round rod/solid square bar, and tubing - THE MK3/4 SCROLL BENDER complete with TUBE BENDING COMPONENTS WILL DO!

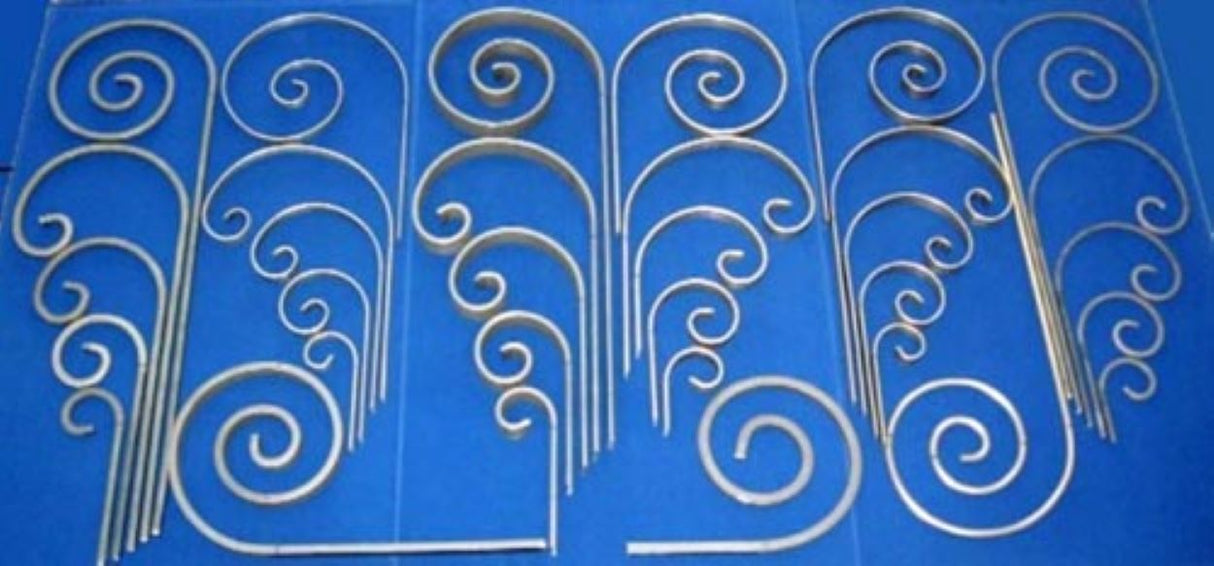

Combining ease of operation with versatility along with the ability to produce a range of different scroll shapes and sizes by using different combinations of the 4 scroll segments that are included with the MK3/4 makes this a popular scroll bender.
FREE Downloadable MK3/4 Scroll Outline Sheet showing scroll made using 1"w x 3/16" thickness flat metal strip. CLICK HERE for .pdf file
FREE Downloadable MK3/4 Scroll Outline Sheet showing scroll made using 1/2" solid square bar. CLICK HERE for .pdf file

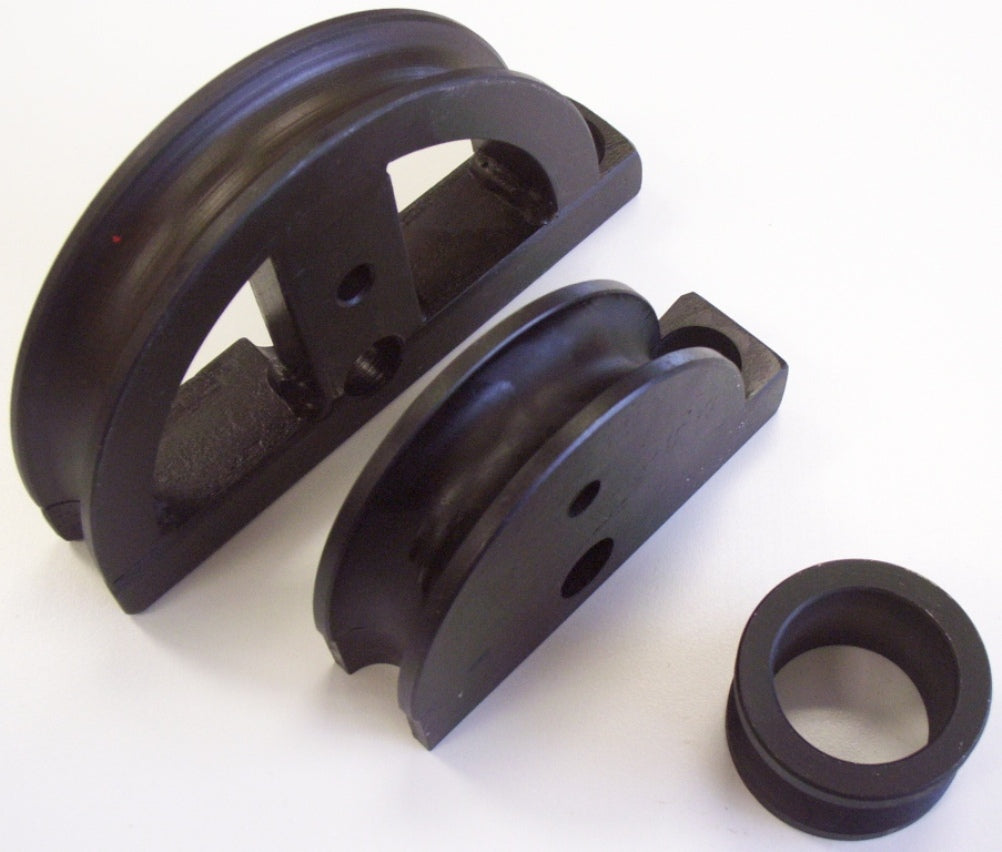

This version takes the baseline MK3/4 (MC025) and includes an optional extra set of tube bending components. These components include a special guide pressure roller plus one small and one large tube former segment to provide the extra capability of a pipe bender in addition to being an amazing metal scroller.

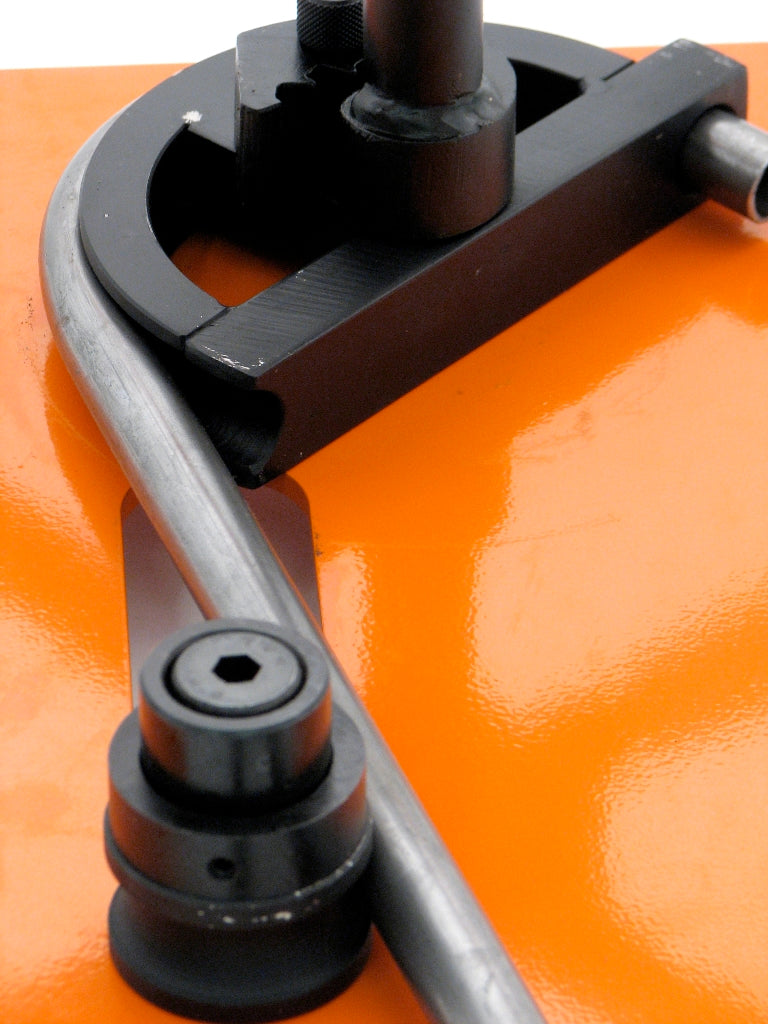

Selecting the large or small former dictates the radius of the bend and this is positioned under and driven by, the main center segment with all the outer scroll forming segments detached. Please watch the video clip here for a demonstration of how this provides a truly universal scroll bender and tube bending machine.
___________________________________________________________________________
SPECIFICATIONS:

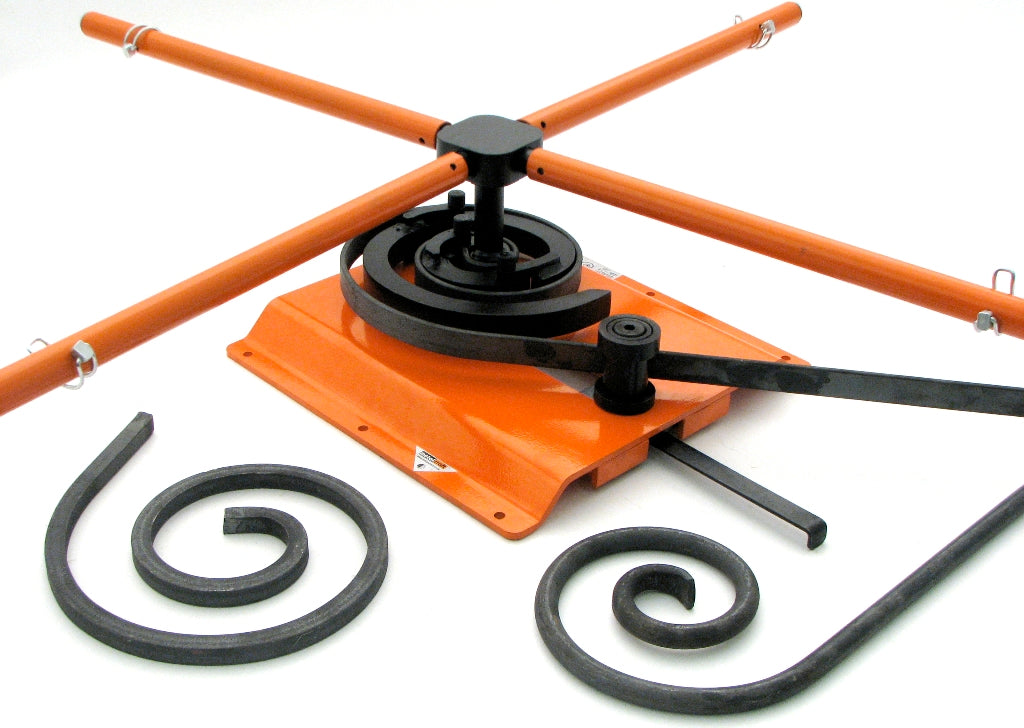

Maximum Working Capacity:
2" wide x 1/4" thickness OR
1" wide x 3/8" thickness (flat metal steel strip).
1/2" (unheated) or 5/8" (with end heated) (solid round rod)
1/2" (unheated) or 5/8" (with end heated) (solid square bar)
Max. Scroll Size:
10" (approximate due to the varying temper (spring) of steel)
Min. Scroll Size:
For 2"wide x 1/4" thickness flat strip metal (using #1 scroll segment only) is approx. 2 3/8"
For 1"wide x 3/8" thickness flat strip metal (using #1 scroll segment only) is approx. 3 1/8"
For 1/2" or 5/8" solid square bar or solid round rod (#1 and #2 scroll segments must be used together for these sizes) is approx. 4 3/4"

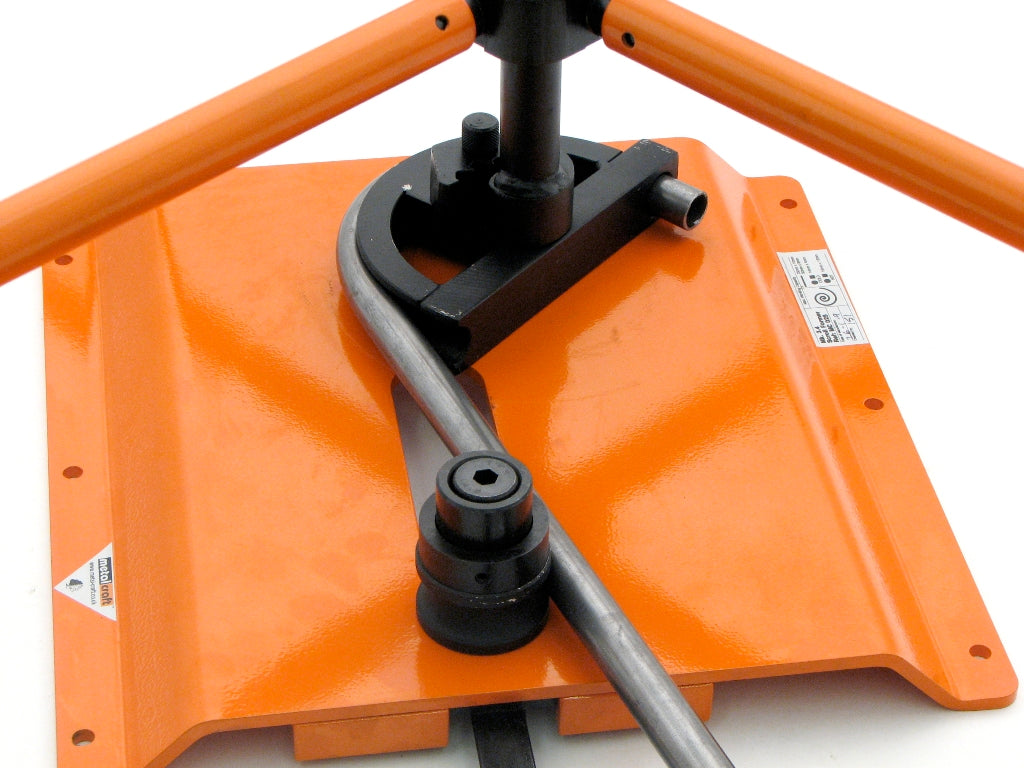

Max. Tube Dimensions: (tube components ARE included in this version)
3/4" O/D. Round Tubing
1/16" Recommended wall thickness.
Dia. of small tube bender segment (inner diameter of formed tube) 3".
Dia. of large tube bender segment (inner diameter of formed tube) 5 1/16".
Tool Dimensions:
14 1/4" (width) x 14 1/4" (depth) x 7" (height)
18" each handle length OR

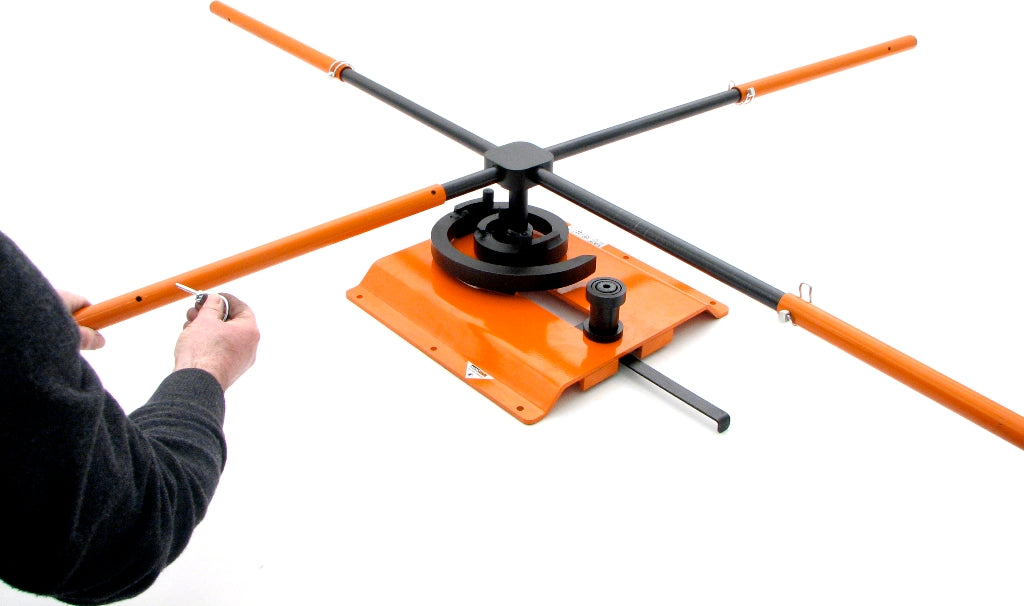

34" each handle length with extensions on.
Boxed weight: 55 lbs.
Other Features:
Interchangeable segments to enable you to make various scroll profiles.
Rapid locking system for holding and releasing bar ends.
Easy scroll release allows for rapid removal of formed scrolls. Handle extensions for added leverage when working larger material.
Allows forged fish tail ends to be scrolled.
All tools are supplied with operating instructions. Please note that the maximum working capacity stated is for Hot Rolled Material or Annealed metal. Working beyond these limits or with material of greater hardness may reduce the operational life of the tool.
