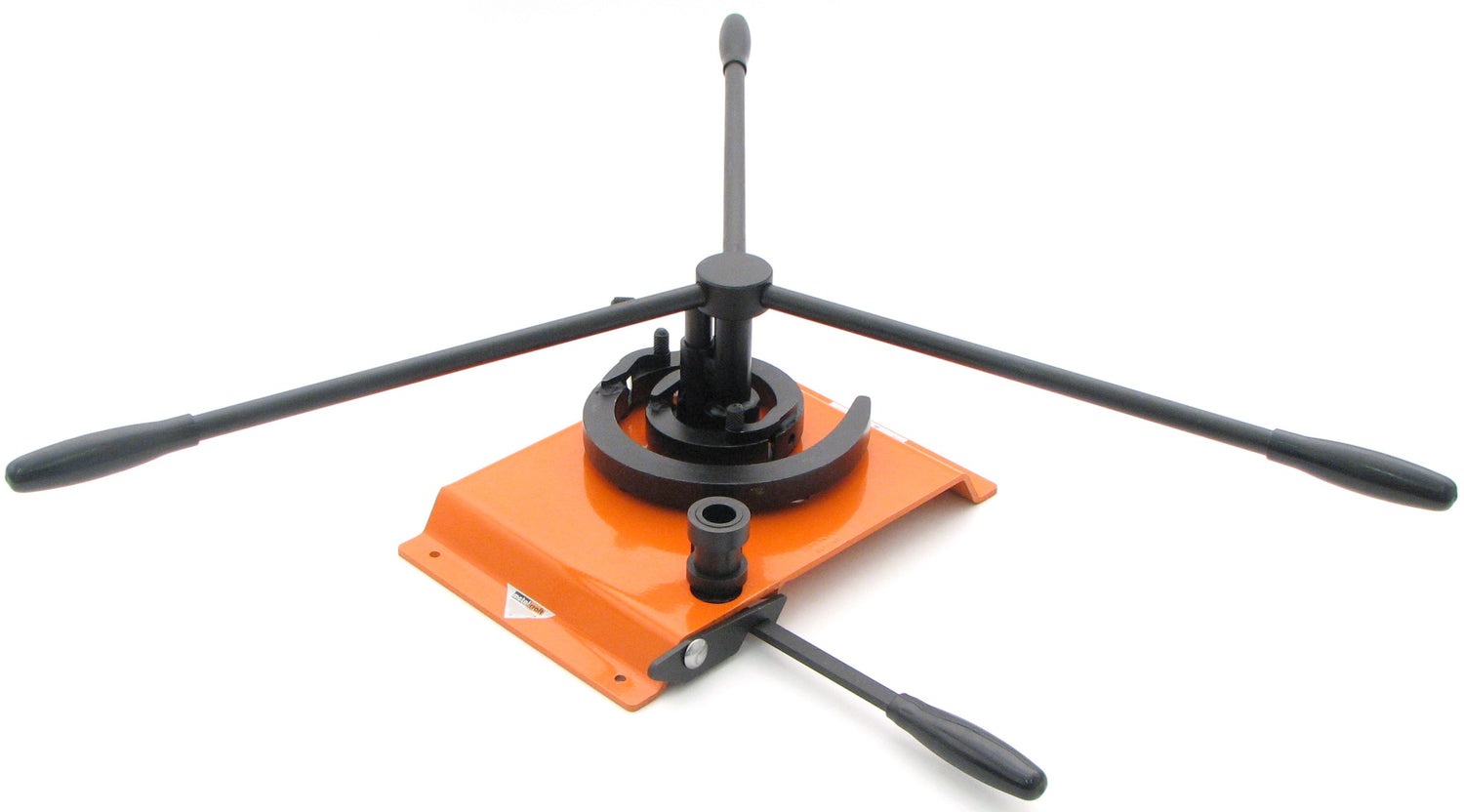

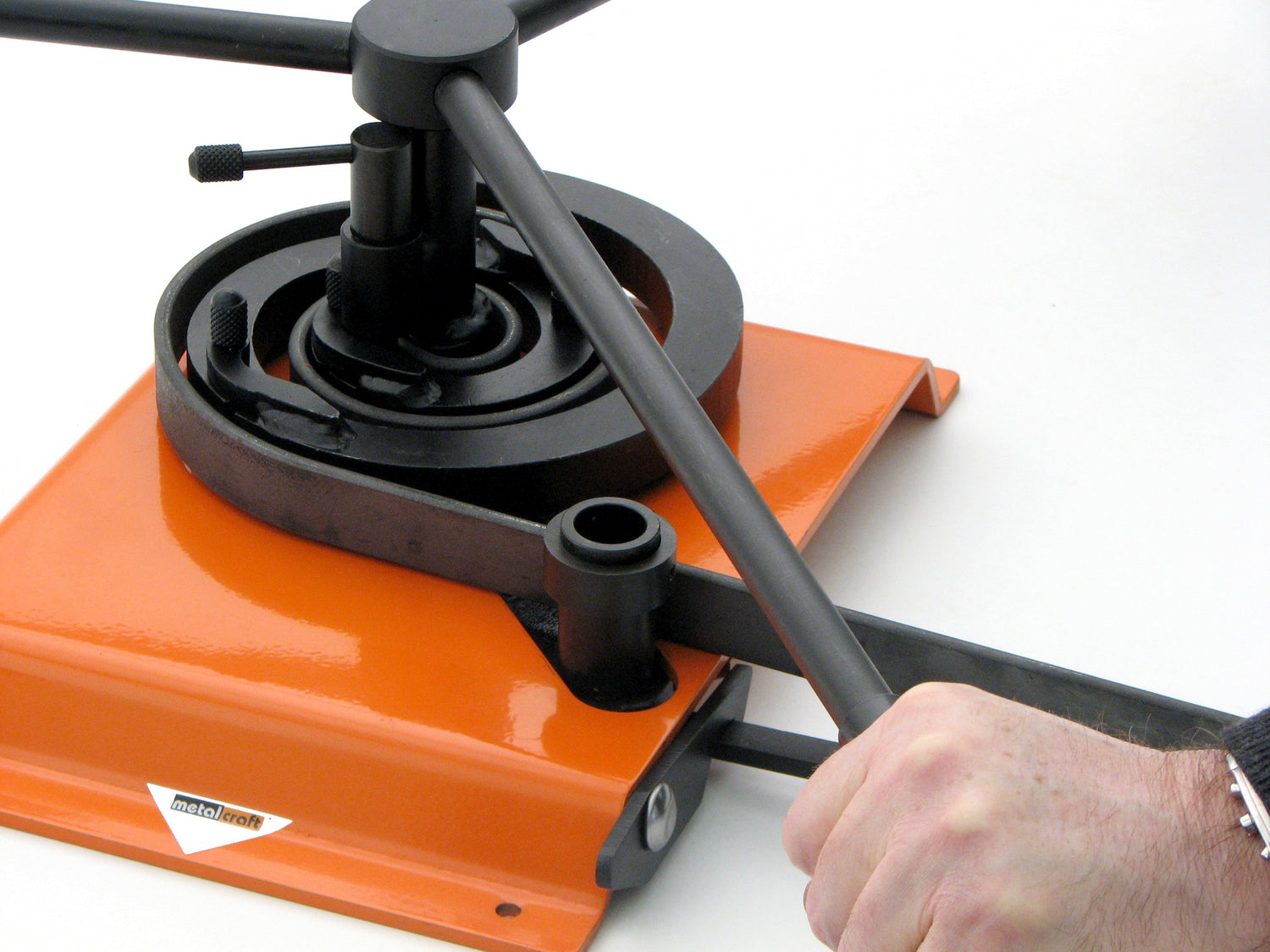

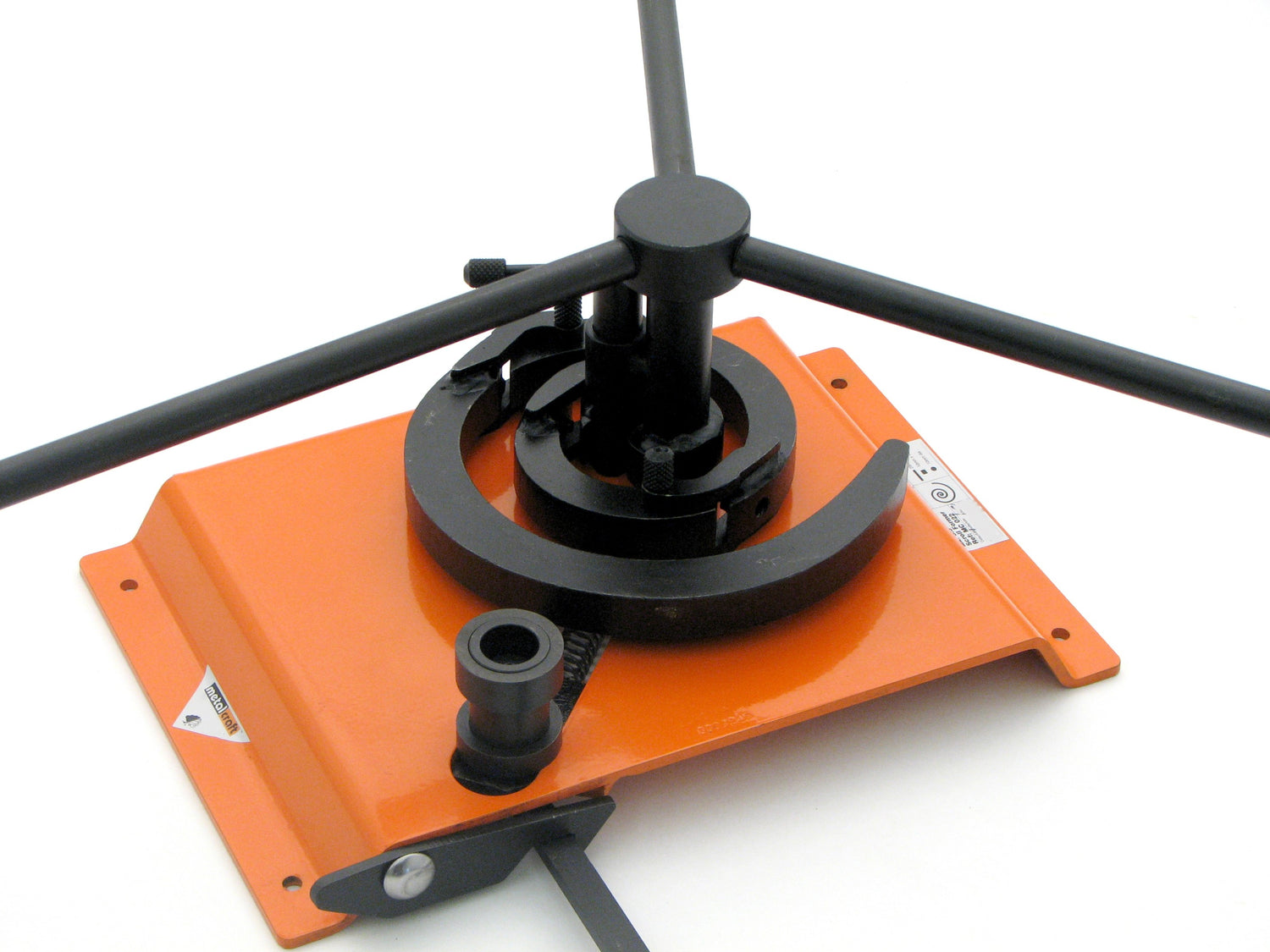

Metalcraft Scroll Bender MK3/3 Former

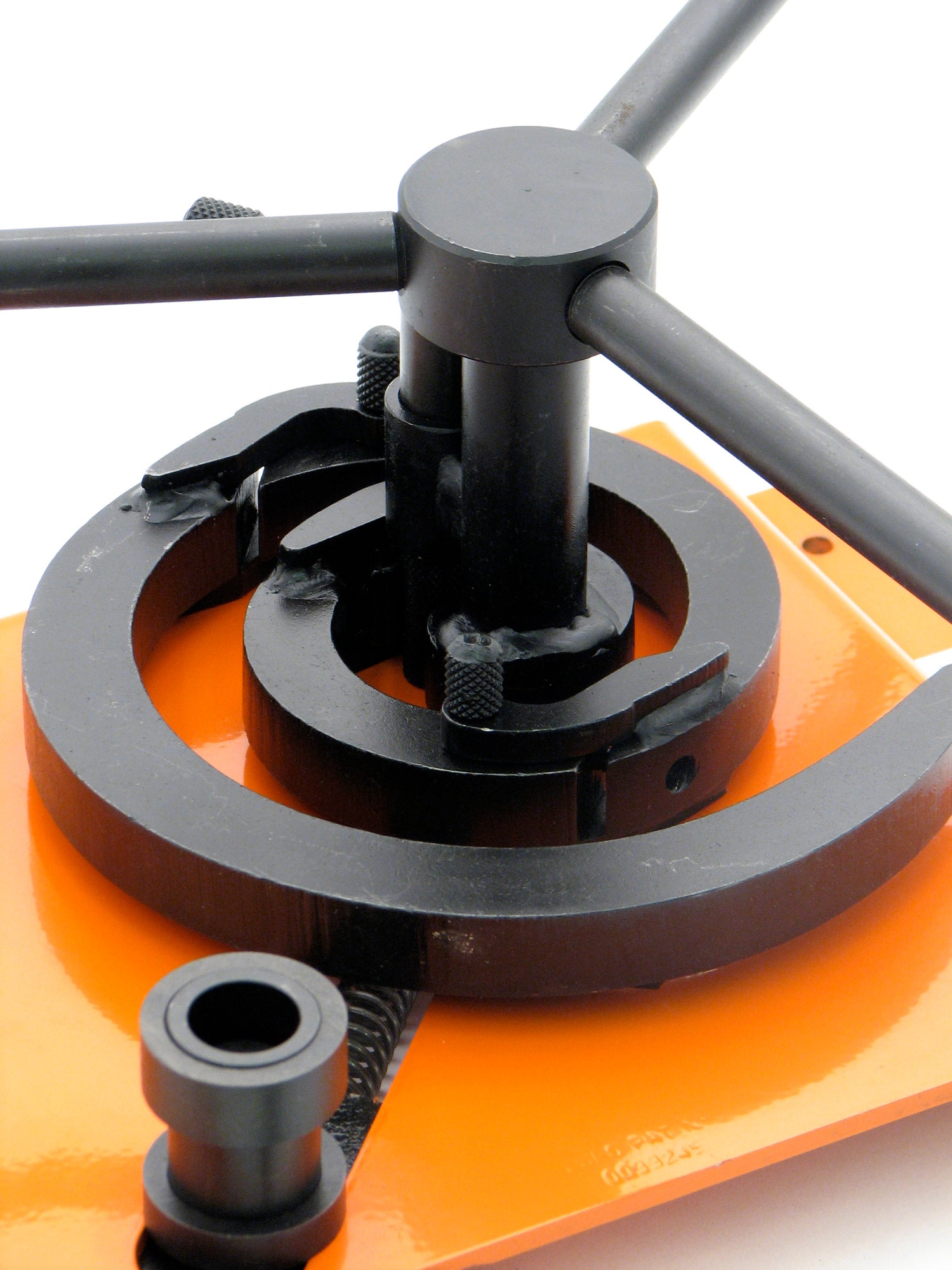

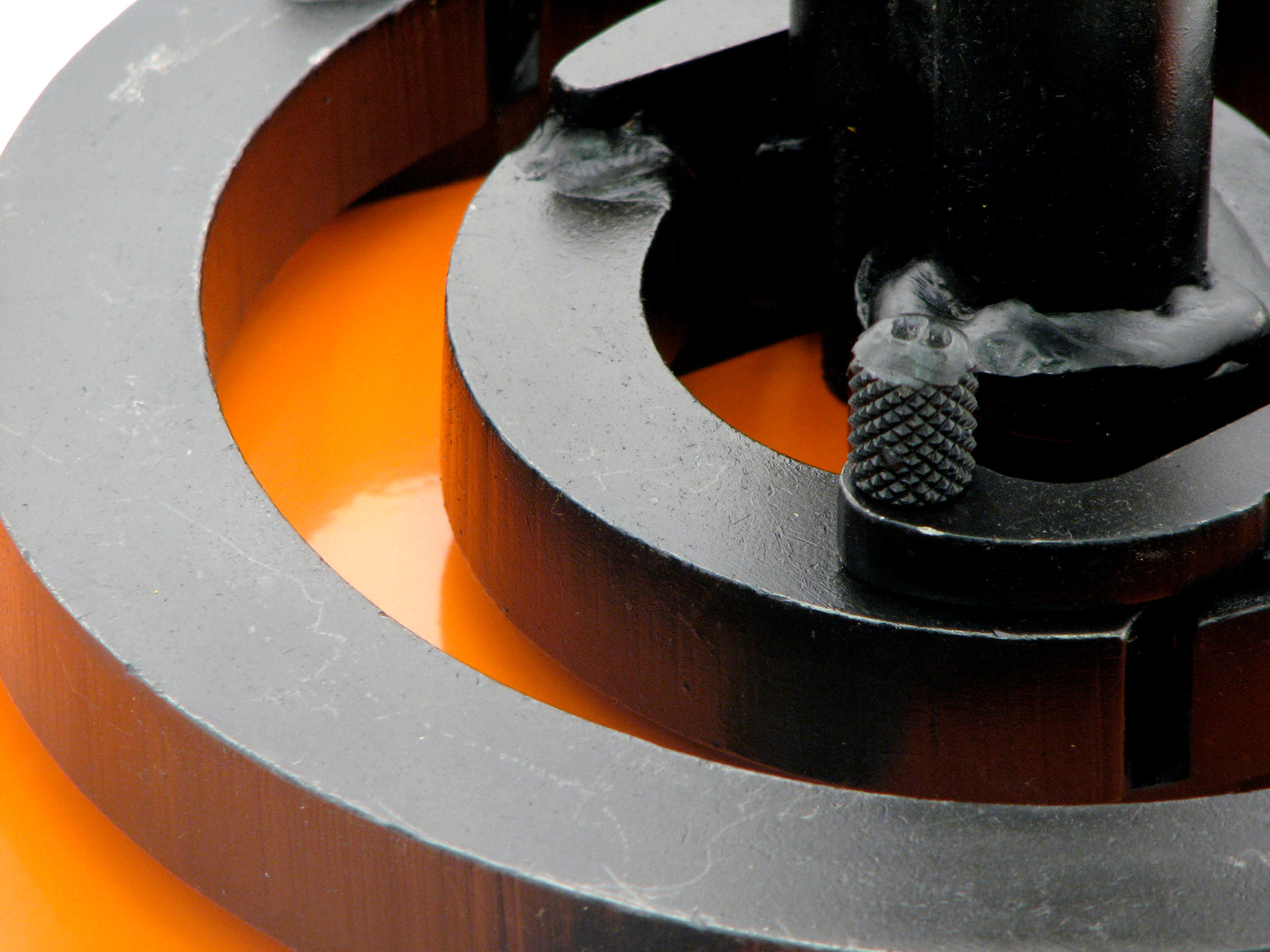

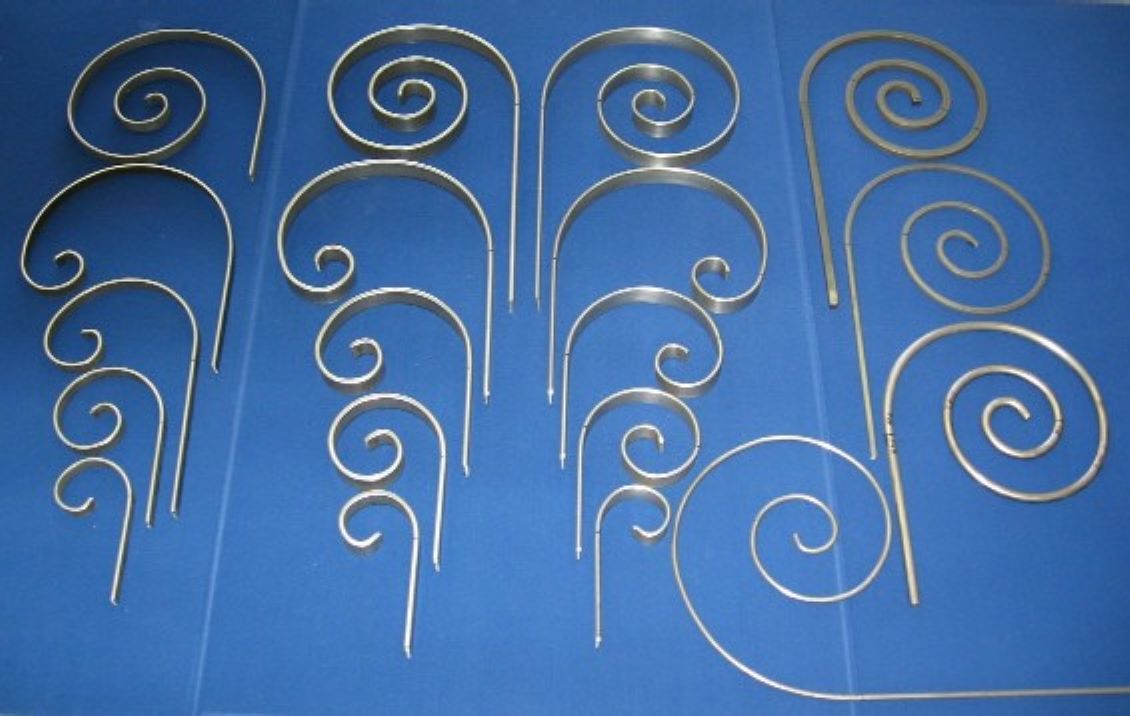

Combining ease of operation with the versatility the MK3/3 Scroll Bender offers, makes this a popular scroll bender. The versatility of the MK 3/3 Scroll Bender stems from its ability to produce a range of different scroll shapes and sizes. This is achieved by interchanging 4 hinged segments.
FREE Downloadable MK3/3 scroll outline sheet. CLICK HERE for .pdf file
SPECIFICATIONS:
Maximum Working Capacity:
1" x 3/16" (flat metal steel strip)
3/8" (solid round rod)
3/8" (solid square bar)
Max. Scroll Size:
8 1/4" (approximate due to the varying temper (spring) of steel)
Tool Dimensions:
14 1/4" wide x 12 1/2" deep x 6 1/4" high x 18 1/8" (handle radius).
Boxed weight: 34 lbs.
Box dimensions 16" long x 16" wide x 8" high.
Other Features:

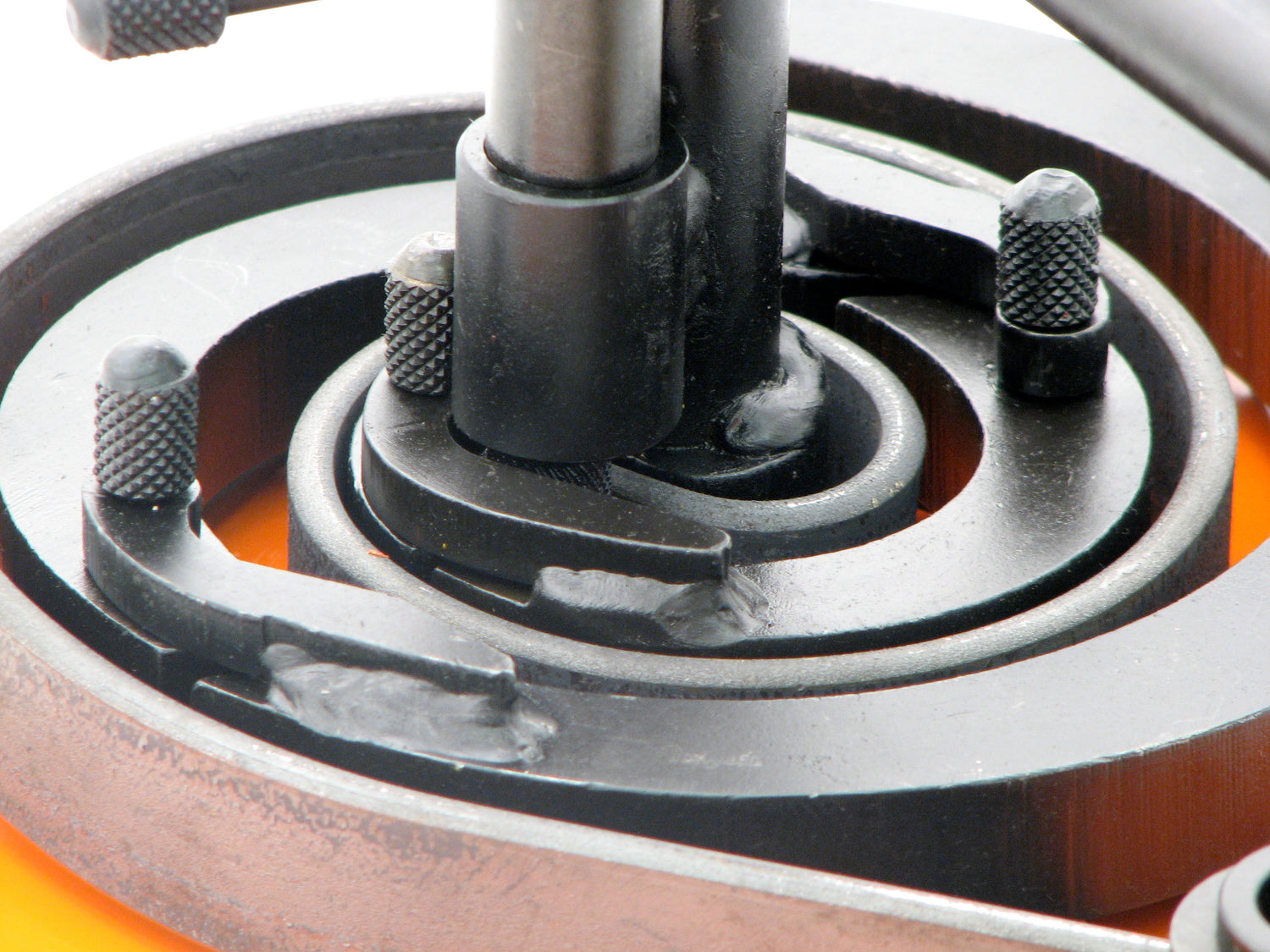

Interchangeable segments allow one to produce a wide range of scroll sizes and shapes. Can also work material with fish tail ends.
This version of the MK3/3 DOES NOT include the optional Tube Bending Components.
All tools are supplied with operating instructions. Please note that the maximum working
capacity stated is for Hot Rolled Material or Annealed metal. Working beyond these limits or with material of greater hardness may reduce the operational life of the tool.
