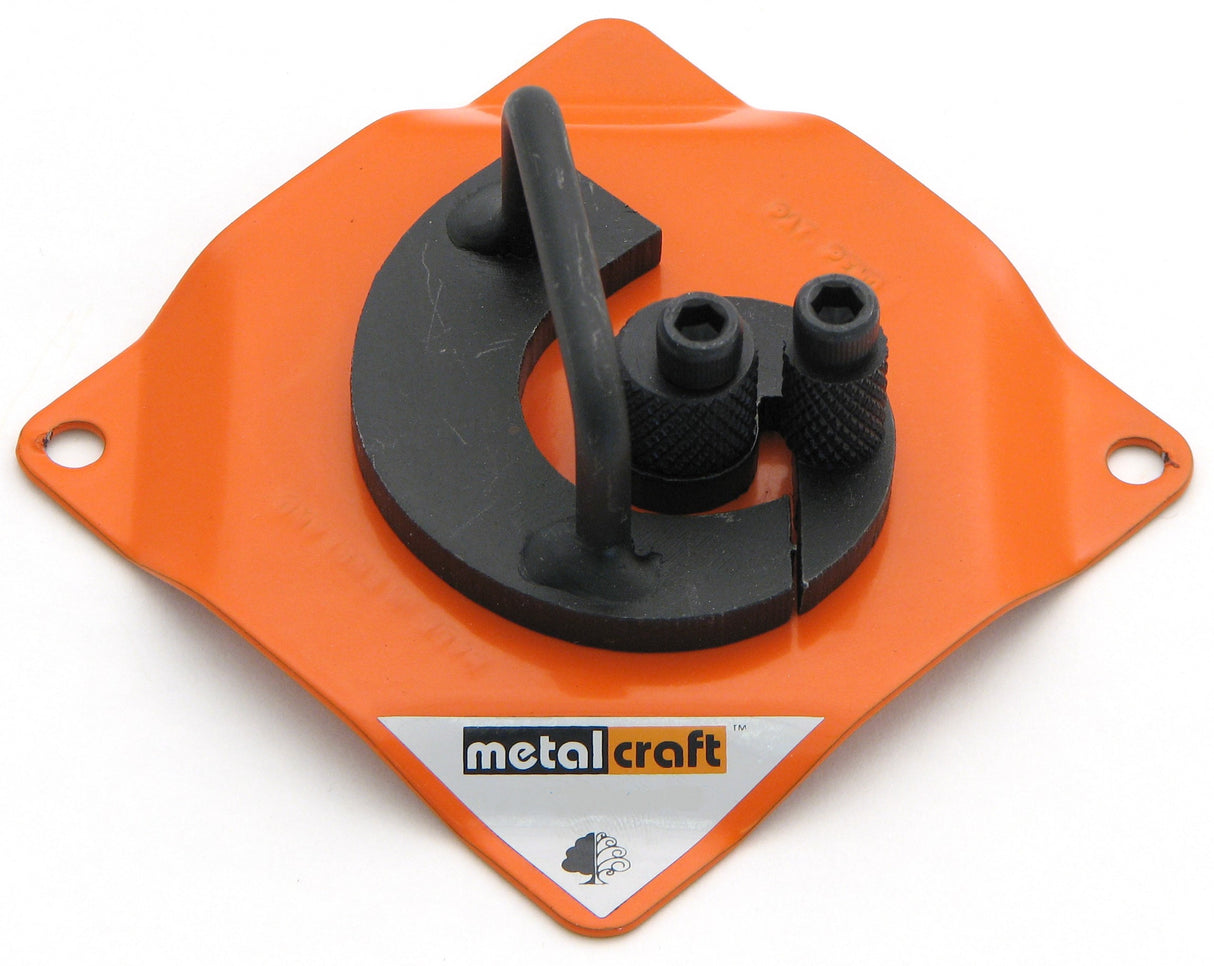

Metalcraft Scroll Bender MK1/2 Former
SKU: SMC017
$59.00

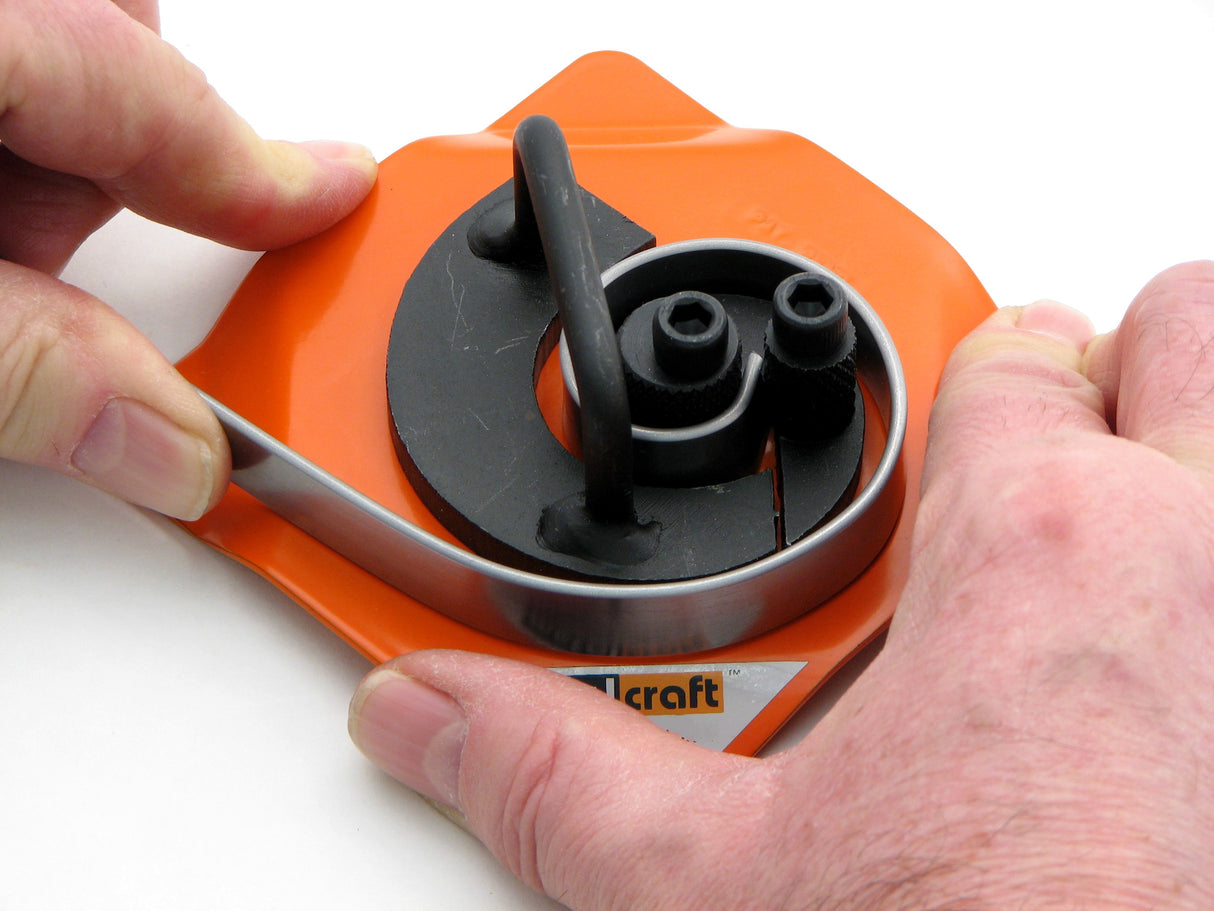

The Scroll Bender MK1/2 Former is the smallest in our Metalcraft range of scroll bending tools. It produces consistent smaller scrolls - scrolls that are widely used in candle holder and other smaller in home type projects. It works as a hand drawn scroll bender by gripping the steel bar in the center and you then draw the steel around it’s inner central segment to create the initial part of the scroll and you then drop in the outer segment to make the scroll bigger if needed.
By using a marker to use the point at which you stop, you can make repeated identical scrolls.
FREE Downloadable MK1/2, MK2/2H, and MK2/3 scroll outline sheet. CLICK HERE for .pdf file
- Easy to use
- Produces flat and consistent scrolls
- No pre-heating of metal required
- Ideal entry level (low cost) scroll formers
- Ensure you have ample work space around the tool to wrap longer lengths
_____________________________________________
SPECIFICATIONS:
Maximum Working Capacity:

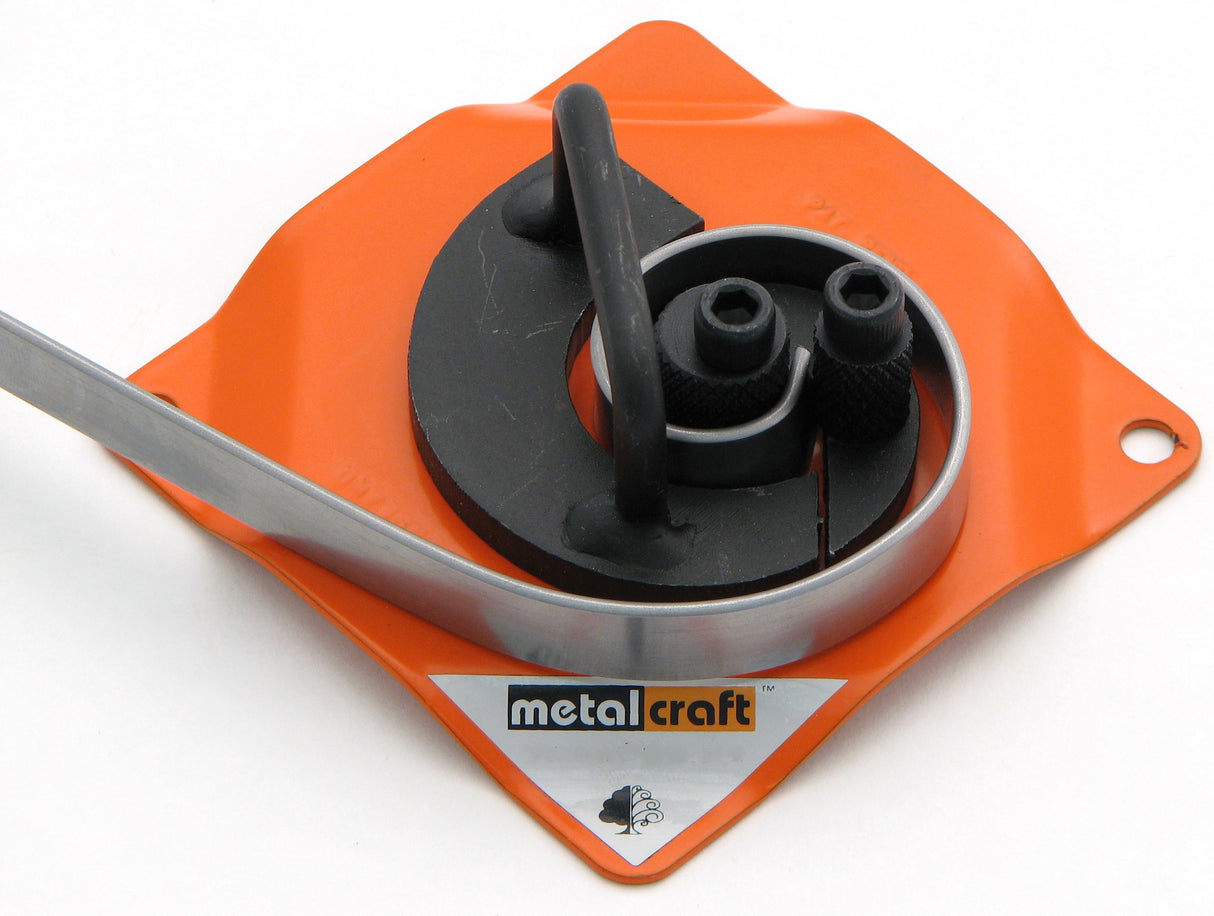

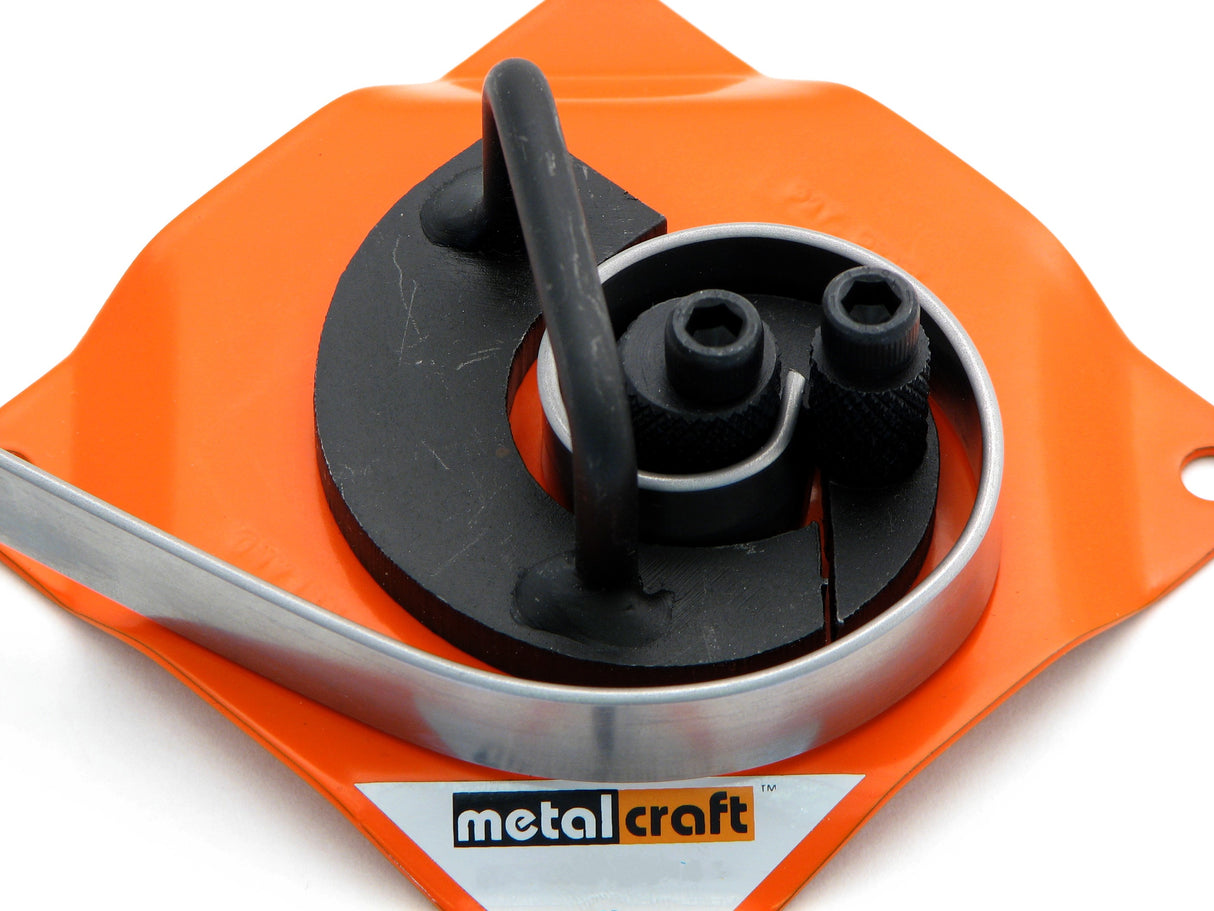

1/2" x 3/32" (flat metal steel strip)
1/8" (solid round rod)
Max. Scroll Size:
3" - the maximum scroll size quoted is approximate due to the varying temper (spring) of steel.
Tool Dimensions:
3 13/16"w x 3 13/16"L x 1 3/4"h.
Boxed Weight: 2 lbs.
All tools are supplied with operating instructions. Please note that the maximum working capacity stated is for Hot Rolled Material or Annealed metal. Working beyond these limits or with material of greater hardness may reduce the operational life of the tool.
